Product Description

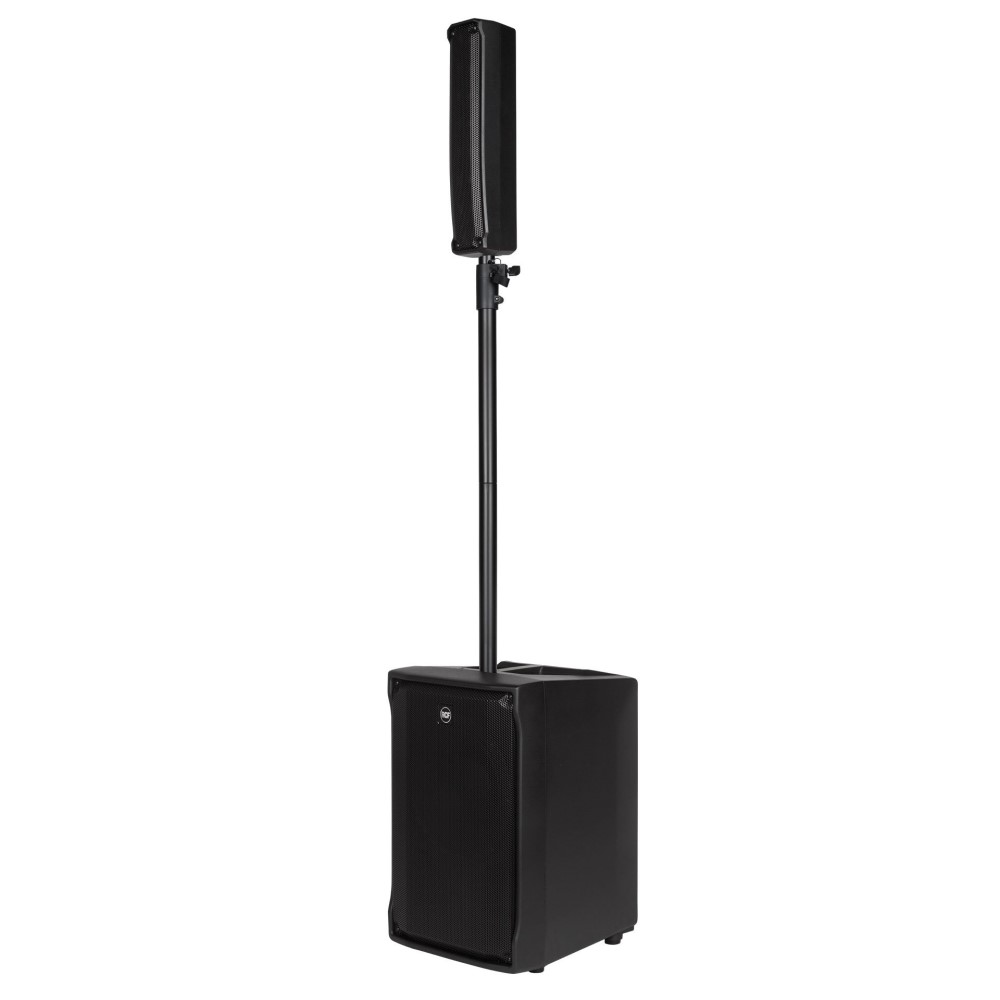

The RCF EVOX JMIX8 builds on the powerful EVOX J8 system by integrating an 8-input digital mixer directly into the column PA system. Utilizing RCF’s Z.CORE DSP, the JMIX8 offers full mixing capabilities, high-quality instrument FX, AMP simulations, and dedicated vocal processing for professional presentations and live performances.
Bluetooth audio and Hi-Z instrument inputs provide modern connectivity, while the iOS/Android-compatible app allows remote control and fine-tuning of the system. With a 12" subwoofer, eight 2" full-range drivers, and 1400W peak power, the JMIX8 delivers 128 dB max SPL, making it ideal for DJs, solo musicians, clubs, corporate events, and AV presentations.
Features
-
128 dB max SPL
-
1400W 2-way peak power (700W RMS)
-
8-input digital mixer with multiple FX, amp simulation, and remote control
-
DSP processing with FiRPHASE technology
-
12" woofer with 2.5" voice coil
-
8 × 2" ultra-compact full-range drivers (1.0" voice coil)
-
Bluetooth audio streaming
-
Hi-Z instrument input
-
Easy setup, transportable, and app-controllable
Specifications
Acoustic
| Specification | Value |
|---|---|
| Frequency Response | 40 – 20,000 Hz |
| Max SPL @ 1m | 128 dB |
| Horizontal Coverage | 120° |
| Vertical Coverage | 30° |
| Full Range Drivers | 8 × 2" (1.0" voice coil) |
| Woofer | 12" (2.5" voice coil) |
Input/Output
| Specification | Value |
|---|---|
| Input Signal | Balanced/Unbalanced |
| Input Connectors | XLR, Jack |
| Output Connectors | XLR |
| Input Sensitivity | -2 dBu / +4 dBu |
EQ / Mixer
| Specification | Value |
|---|---|
| Channels | 8 |
| EQ | 1 Semi-Parametric / 2 Shelving per channel |
| FX | Multiple instrument FX and amp simulations |
| Remote Control | iOS/Android app compatible |
Physical
| Specification | Metric | Imperial |
|---|---|---|
| Cabinet Material | PP Composite | PP Composite |
| Handles | 1 Top | 1 Top |
| Grille | Steel | Steel |
| Color | Black | Black |
| Dimensions (H × W × D) | 623 × 400 × 460 mm | 24.53 × 15.75 × 18.11 in |
| Weight | 24.4 kg | 53.79 lbs |
