Product Description
\n

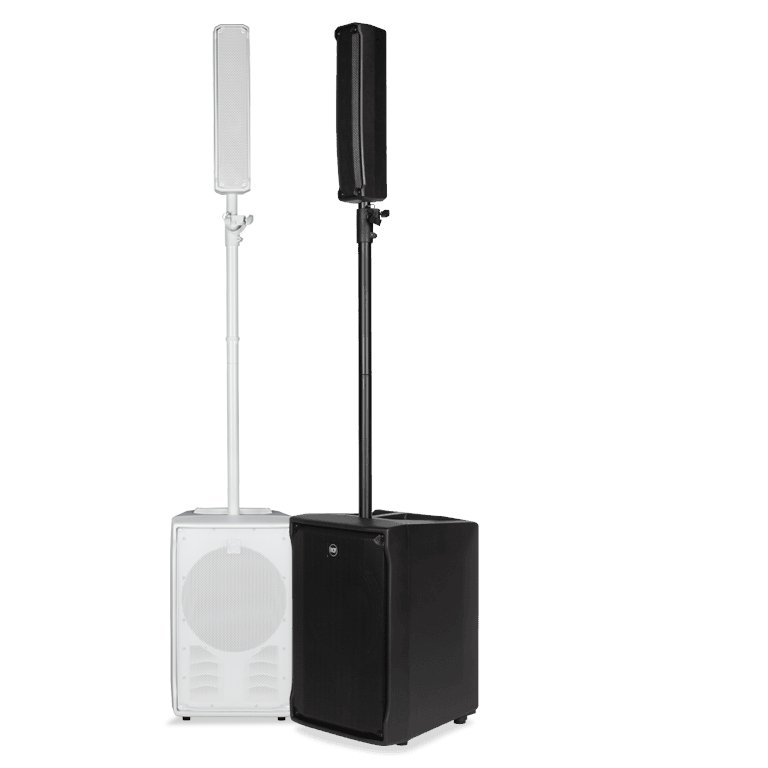

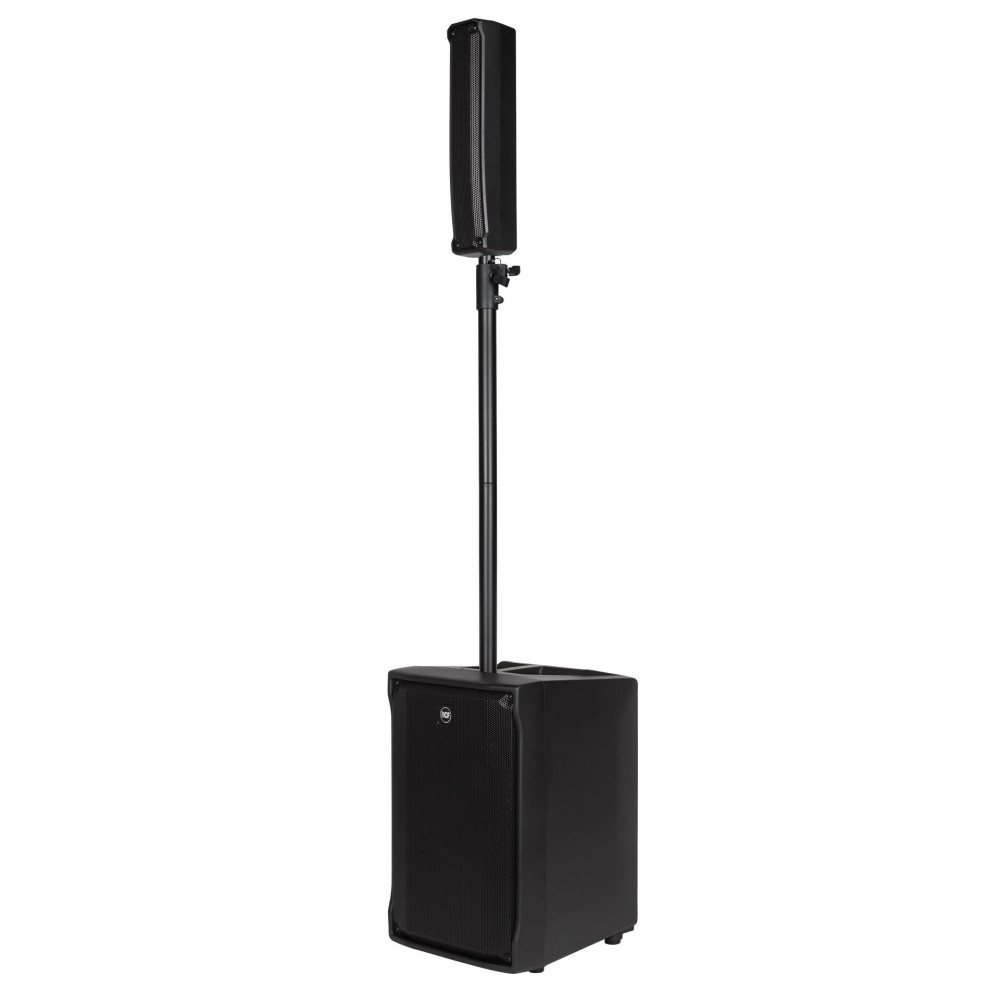

\nThe RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.
\n
Applications:
\n-
\n
- Live Sound \n
- Clubs and DJs \n
- Corporate events \n
- AV presentations \n
Features:
\n-
\n
- 128dB Max SPL \n
- 1400 Watt 2-way peak power \n
- DSP Processing with FiRPHASE \n
- 12" woofer, high power 2.5" voice coil \n
- 8 x 2" ultra compact fullrange 1.0" voice coil \n
Specifications:
\n-
\n
- Acoustic
\n
-
\n
- Frequency Response (@ -3dB): 40Hz - 20Hz \n
- Max SPL: 128dB \n
- Horizontal coverage angle: 120° \n
- Vertical coverage angle: 30° \n
- Full range: 8 x 2.0'', 1.0'' v.c \n
- Woofer: 12'', 2.5'' v.c \n
\n - Input/Output Section
\n
-
\n
- Input signal: bal/unbal \n
- Input connectors: XRL, Jack \n
- Output connectors: XLR \n
- Input sensitivity: -2dBu / +4dBu \n
\n - Processor Section
\n
-
\n
- Crossover frequencies: 220Hz \n
- Protections: Thermal, RMS \n
- Limiter: Soft Limiter \n
- Controls: Volume, Boost, Mic/Line \n
\n - Amplifier Specifications
\n
-
\n
- Total power: 1400W PEAK
\n
-
\n
- High frequencies: 400W PEAK \n
- Low frequencies: 1000W PEAK \n
\n - Total power: 700W RMS
\n
-
\n
- High frequencies: 200W RMS \n
- Low frequencies: 500W RMS \n
\n - Connections: Convection \n
\n - Total power: 1400W PEAK
\n
- Cabinet
\n
-
\n
- Cabinet Material: PP Composite \n
- Handles: 1 Top \n
- Pole Mount/Cap: Yes \n
- Grille: steel \n
- Color: Black, White \n
\n - Physical Specifications
\n
-
\n
- Height: 623 / 24.53mm/inch \n
- Width: 400 / 15.75mm/inch \n
- Depth: 460 / 18.11mm/inch \n
- Net Weight: 23.8 / 52.47kg/lbs \n
\n - Dimensions (HxWxD): 24.53" x 15.75" x18.11" (623 x 400 x 460mm) \n
