Product Description

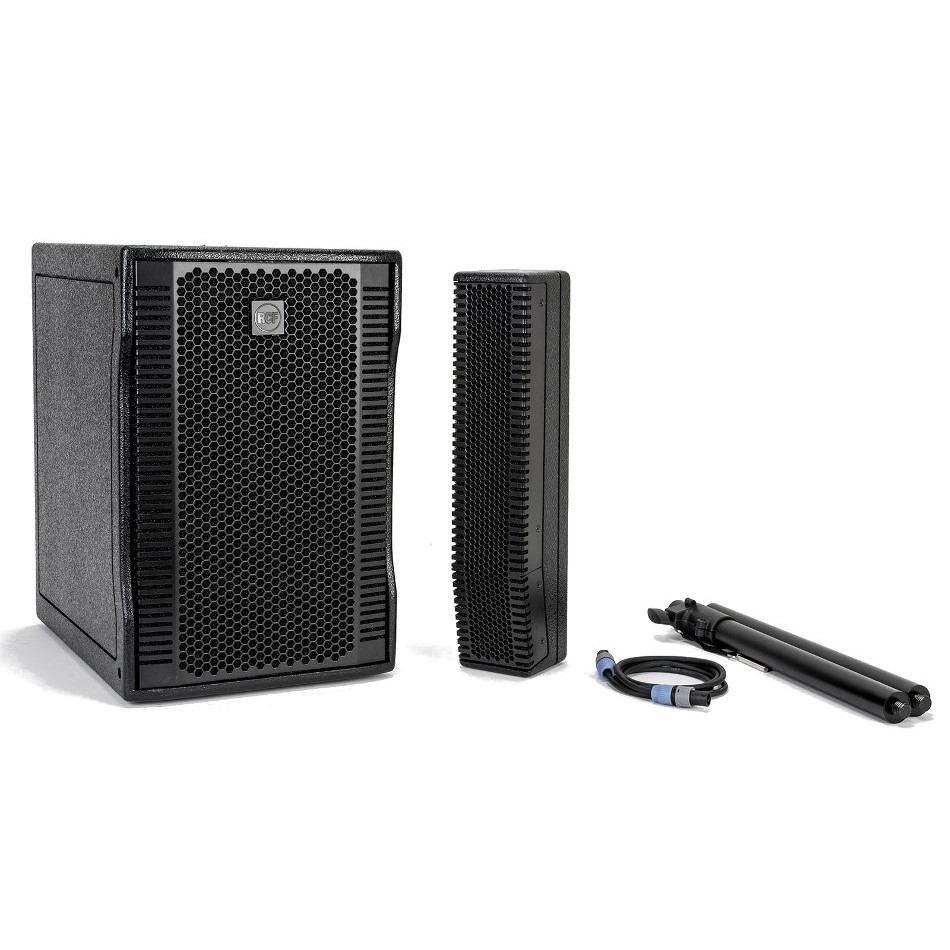

The RCF Evox 8 is a powerful, portable sound reinforcement system designed for live music, DJs, corporate events, and presentations. It combines RCF’s renowned transducer technology with a high-output Class-D amplifier for exceptionally clear vocal projection, deep bass performance, and consistent 120° horizontal coverage.

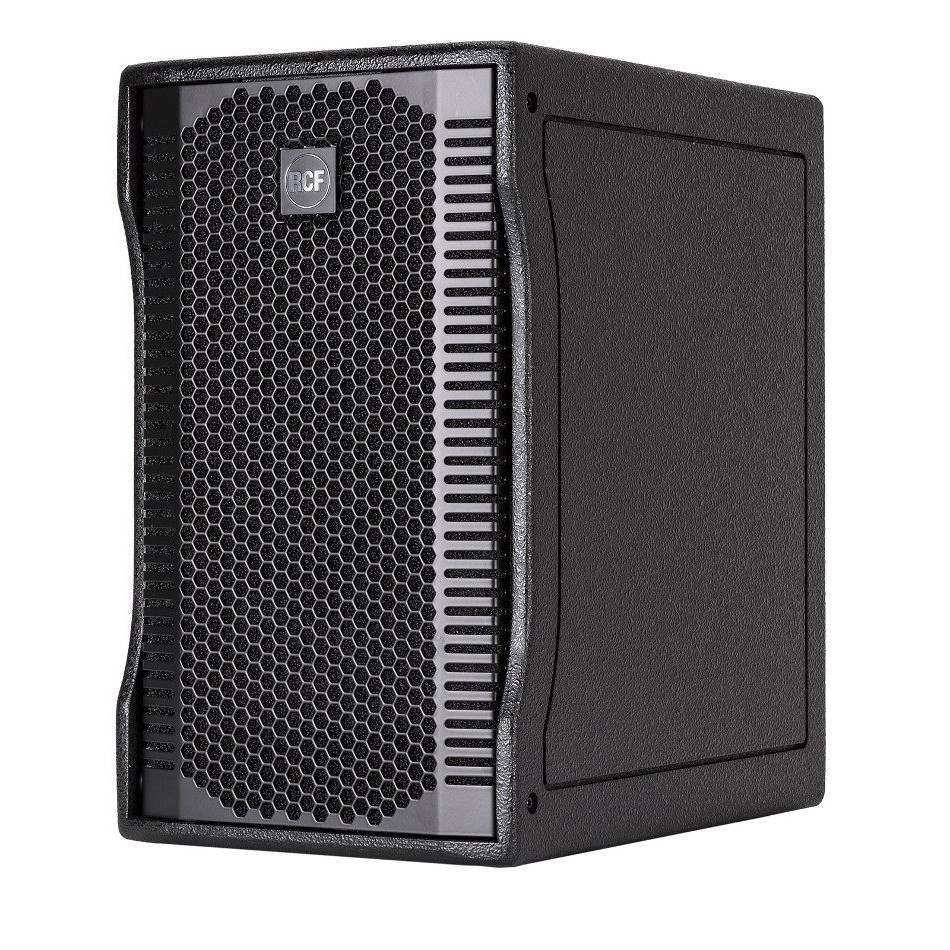

The Evox 8 features eight 2" full-range drivers arranged in a vertical line array, paired with a 12" bass-reflex subwoofer for rich low-frequency response. With up to 1400W peak power and 128 dB max SPL, this compact system delivers remarkable sound pressure and clarity far beyond typical column PA systems.

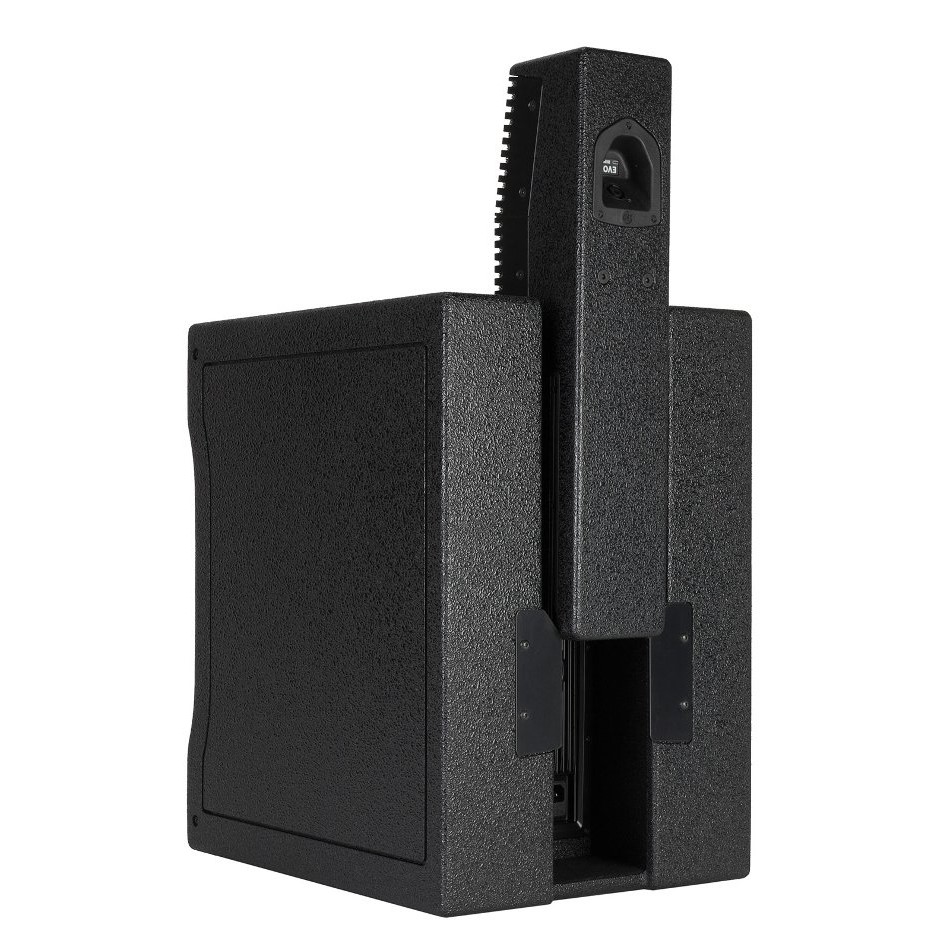

Setup is fast and simple—top column storage, pole mounting, and cabling are designed for quick deployment, making the Evox 8 an ideal solution for mobile performers and production companies.
Features
-
1400W peak output (700W RMS)
-
128 dB max SPL
-
40 Hz – 20 kHz frequency response
-
12" woofer (2.5" voice coil)
-
8 × 2" ultra-compact full-range drivers (1.0" voice coil)
-
120° × 30° controlled coverage pattern
-
Advanced DSP with dedicated vocal processing
-
Class-D bi-amplification with DSP crossover
-

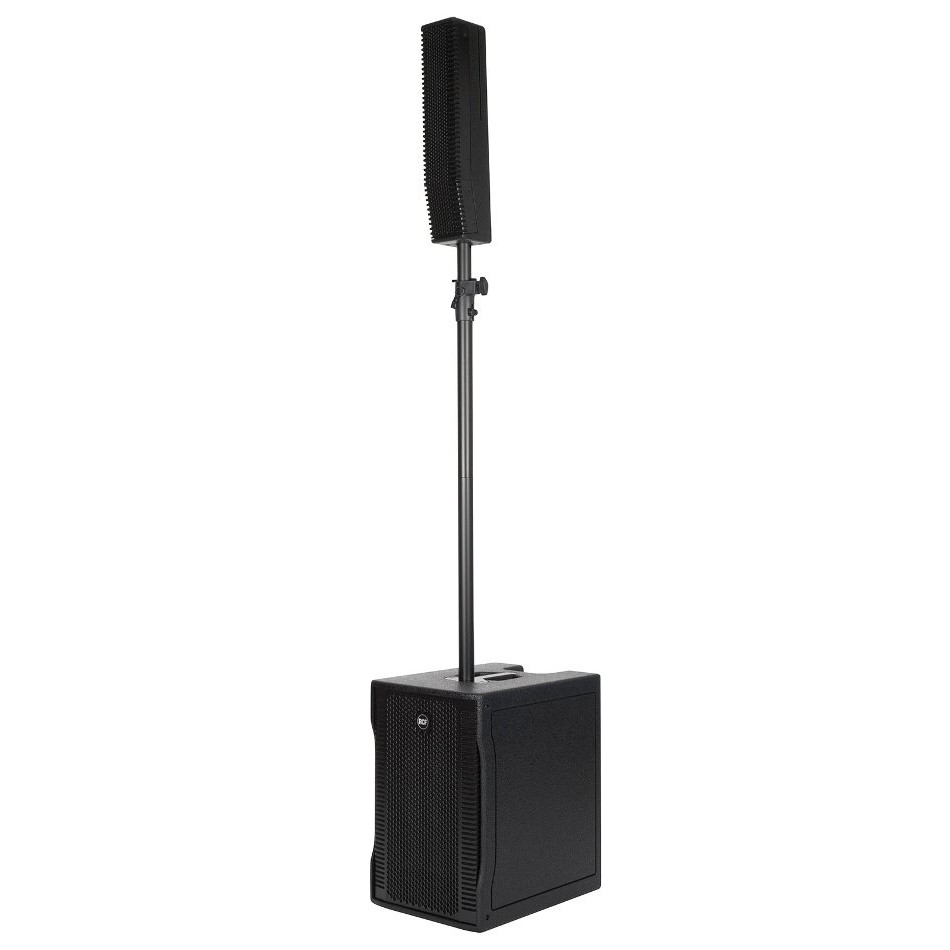

Quick-setup system with integrated pole mount and cable management
-
Durable Baltic birch plywood cabinet
Specifications
Acoustic
| Specification | Value |
|---|---|
| Frequency Response (-3 dB) | 40 Hz – 20 kHz |
| Max SPL | 128 dB |
| Horizontal Coverage | 120° |
| Vertical Coverage | 30° |
| Full Range Drivers | 8 × 2" (1.0" voice coil) |
| Woofer | 12" (2.5" voice coil) |

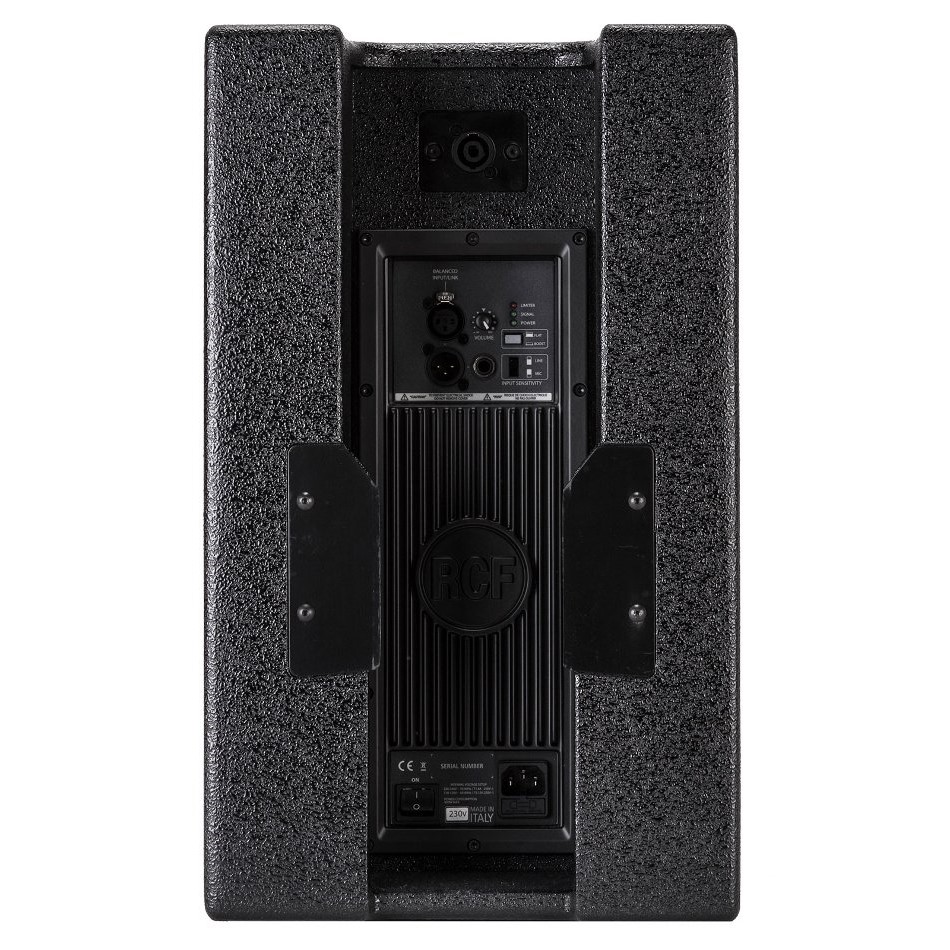

Input/Output
| Specification | Value |
|---|---|
| Input Connectors | Jack–XLR male |
| Output Connectors | XLR female |
| Input Sensitivity | -2 dBu / +4 dBu |
Processor
| Specification | Value |
|---|---|
| Crossover Frequency | 220 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft limiter |
| Controls | Volume, EQ, phase, crossover |
Amplifier
| Specification | Peak Power | RMS Power |
|---|---|---|
| Total Power | 1400 W | 700 W |
| High Frequencies | 400 W | 200 W |
| Low Frequencies | 1000 W | 500 W |
General
| Specification | Value |
|---|---|
| Cabinet Material | Baltic birch plywood |
| Hardware | 2 × M6 |
| Handles | 1 top |
| Pole Mount | Yes |
| Color | Black |
| Cooling | Convection |
| Power Connection | VDE connector |
Dimensions & Weight
| Measurement | Metric | Imperial |
|---|---|---|
| Dimensions (H × W × D) | 530 × 346 × 459 mm | 20.86" × 13.62" × 18.10" |
| Net Weight | 23.8 kg | 50.70 lb |
