Product Description

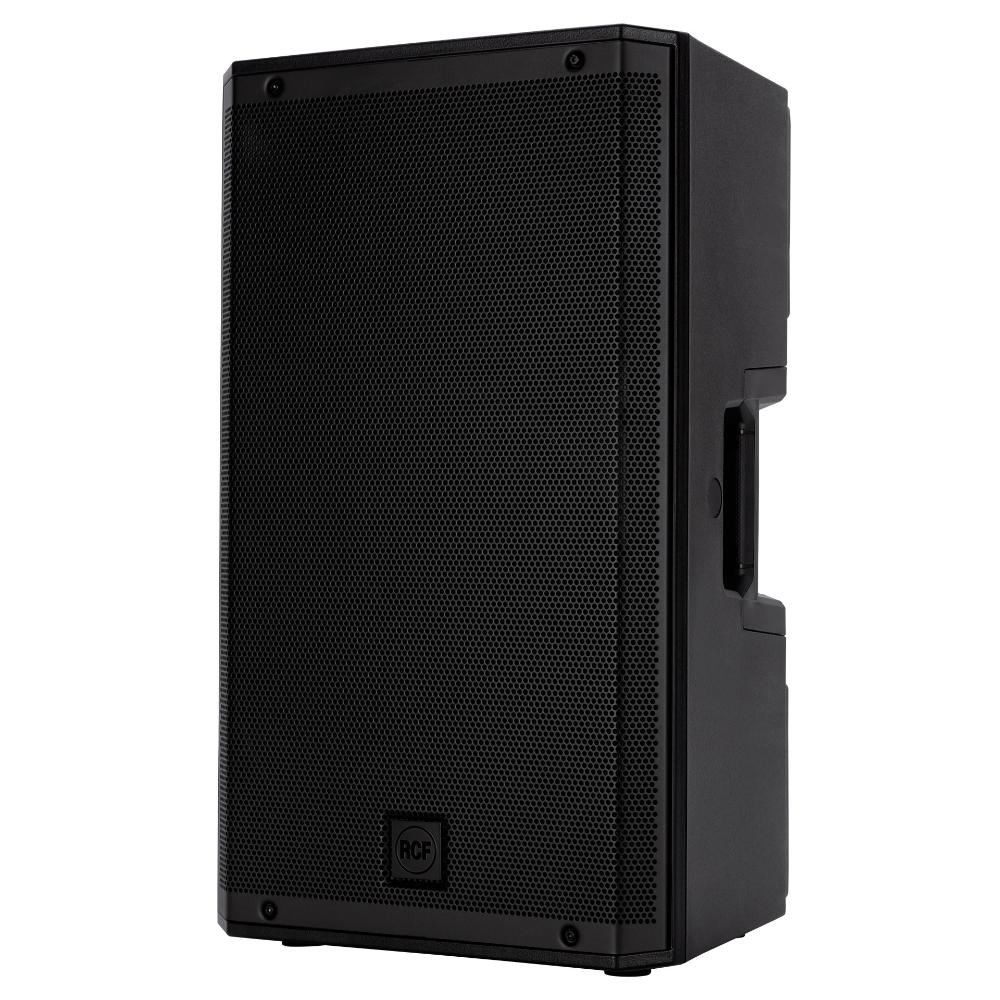

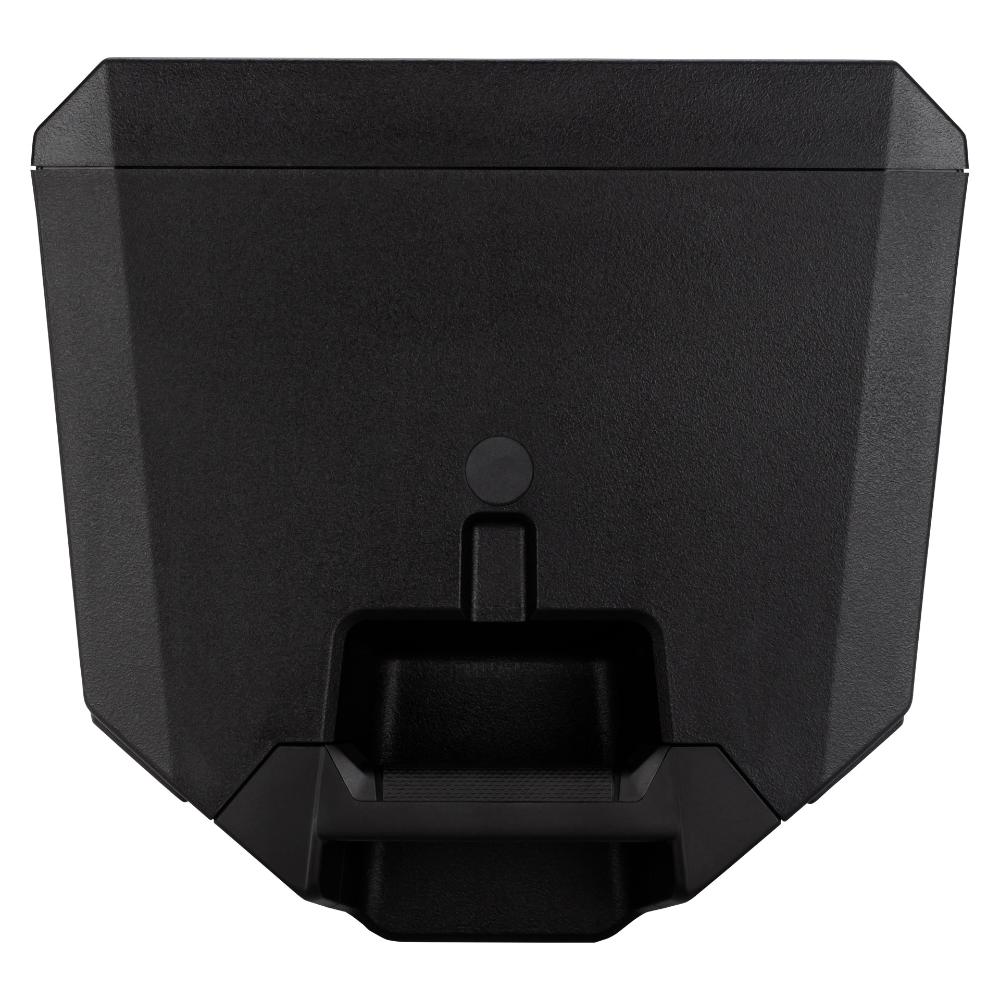

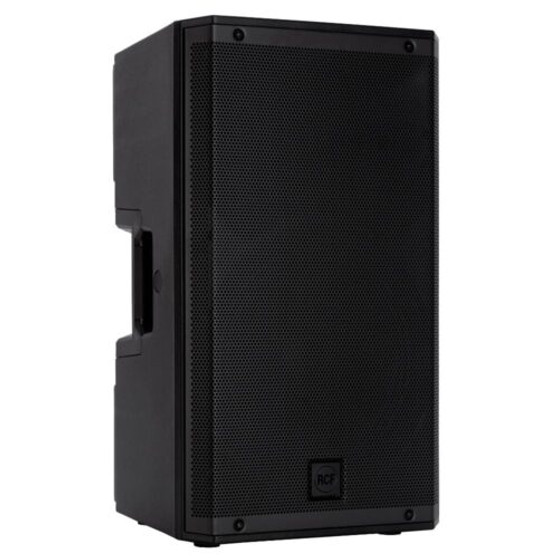

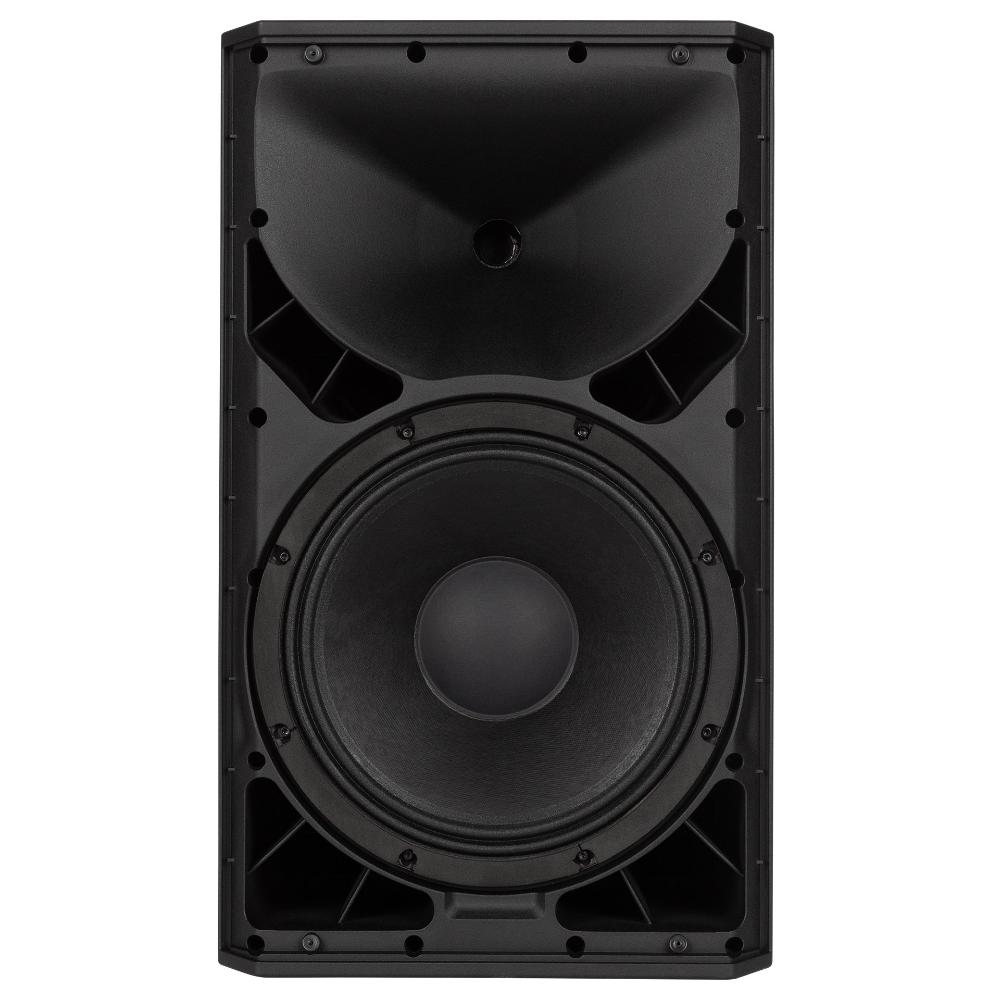

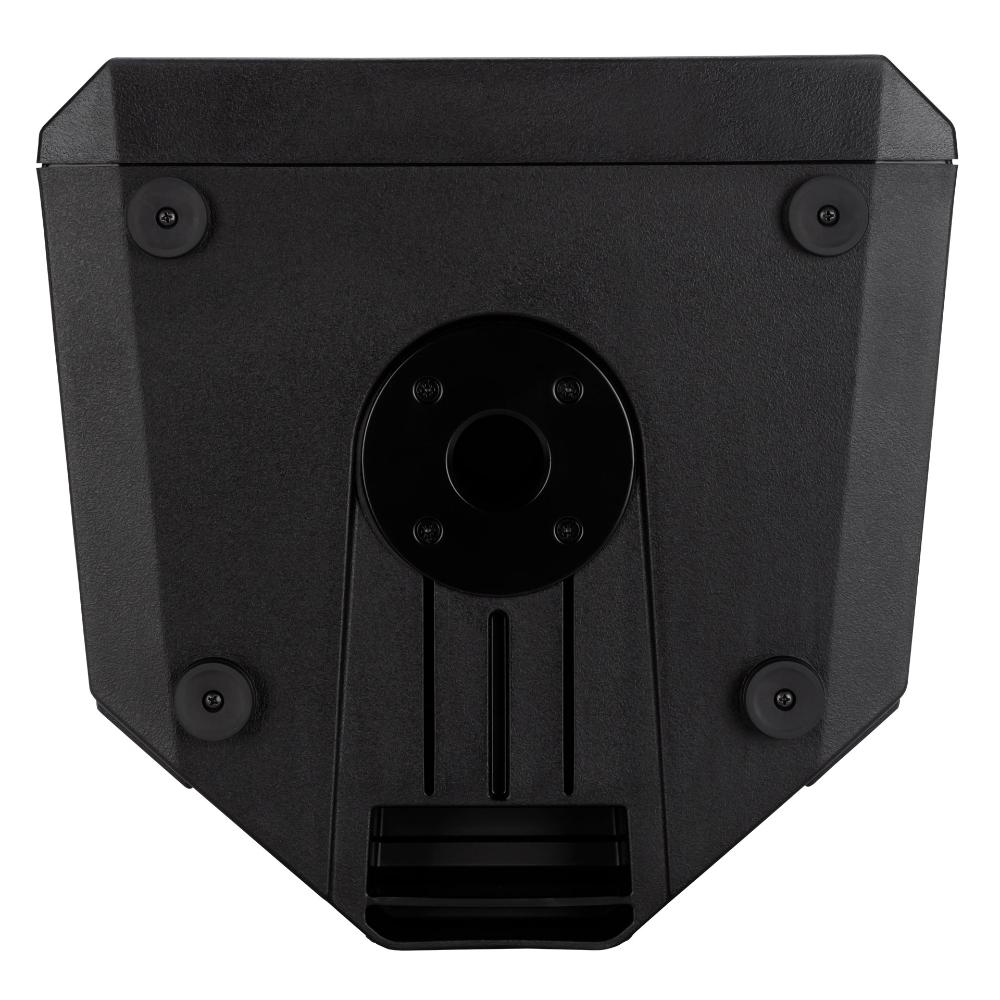

The RCF ART-932A is a 12-inch powered speaker delivering 2,100W of bi-amplified power and up to 132 dB SPL, making it ideal for live sound, touring, or permanent installations. Featuring a 3-inch titanium/neodymium compression driver and a 12-inch woofer, combined with a True Resistive Waveguide, this speaker ensures consistent coverage and clear, distortion-free sound for every audience member.
RCF’s FiRPHASE and Bass Motion Control (BMC) DSP technologies guarantee precise phase alignment, tight bass, and an overall rich and transparent audio experience. The polypropylene composite cabinet with internal M-brace reinforcement provides durability while remaining lightweight for easy transport and versatile placement.
Features
-
132 dB max SPL
-
2,100W Class-D bi-amplification (1,400W LF / 700W HF)
-
50 Hz – 20 kHz linear frequency response
-
3" Titanium/Neodymium compression driver
-
12" high-power woofer, 2.5" voice coil
-
Constant directivity True Resistive Waveguide for 100° x 60° coverage
-
FiRPHASE technology for precise phase alignment
-
Bass Motion Control DSP for optimized low-end performance
-
Soft limiter and thermal/RMS protections
-
Linear, Boost, Stage, and Volume controls
-
Convection cooling
-
VDE power connections
-
Lightweight and durable polypropylene composite cabinet
Specifications
Acoustic
| Specification | Value |
|---|---|
| Frequency Response | 50 Hz – 20 kHz |
| Max SPL @ 1m | 132 dB |
| Horizontal Coverage | 100° |
| Vertical Coverage | 60° |
| Compression Driver | 3" Titanium/Neodymium, 1.4" voice coil |
| Woofer | 12" (2.5" voice coil) |
Input/Output
| Specification | Value |
|---|---|
| Input Signal | Balanced/Unbalanced |
| Input Connectors | XLR, Jack |
| Output Connectors | XLR |
| Input Sensitivity | -2 dBu / +4 dBu |
Processor / Crossover
| Specification | Value |
|---|---|
| Crossover Frequency | 700 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | Linear, Boost, Stage, Volume |
Amplifier
| Specification | Peak Power | RMS Power |
|---|---|---|
| Total Power | 2,100 W | — |
| High Frequencies | 700 W | — |
| Low Frequencies | 1,400 W | — |
Physical
| Specification | Metric | Imperial |
|---|---|---|
| Cabinet Material | PP Composite | PP Composite |
| Cooling | Convection | Convection |
| Height | 642 mm | 25.28 in |
| Width | 370 mm | 14.57 in |
| Depth | 363 mm | 14.29 in |
| Weight | 18.8 kg | 41.45 lbs |
| Package Height | 685 mm | 26.97 in |
| Package Width | 430 mm | 16.93 in |
| Package Depth | 423 mm | 16.65 in |
| Package Weight | 21 kg | 46.3 lbs |
