Product Description

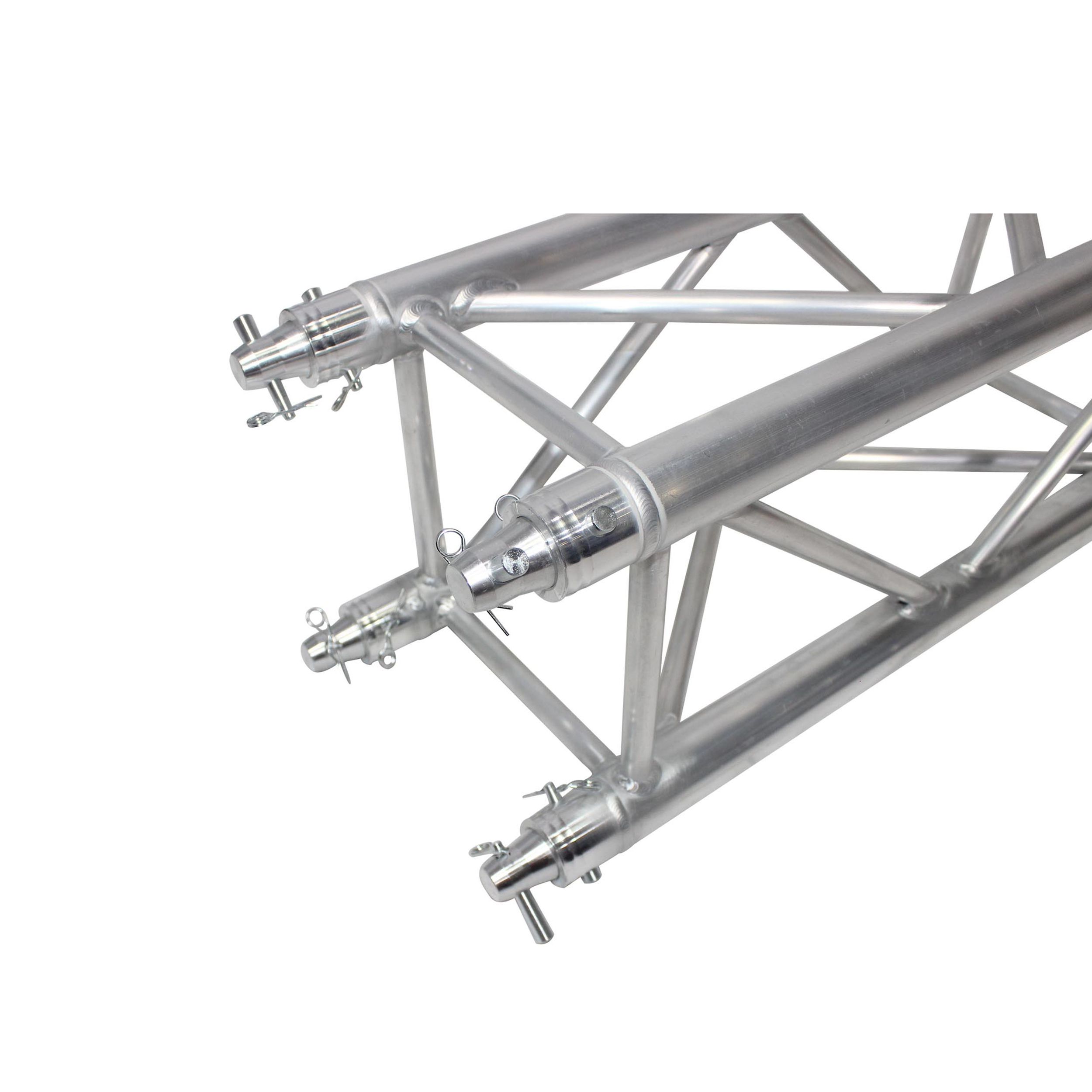

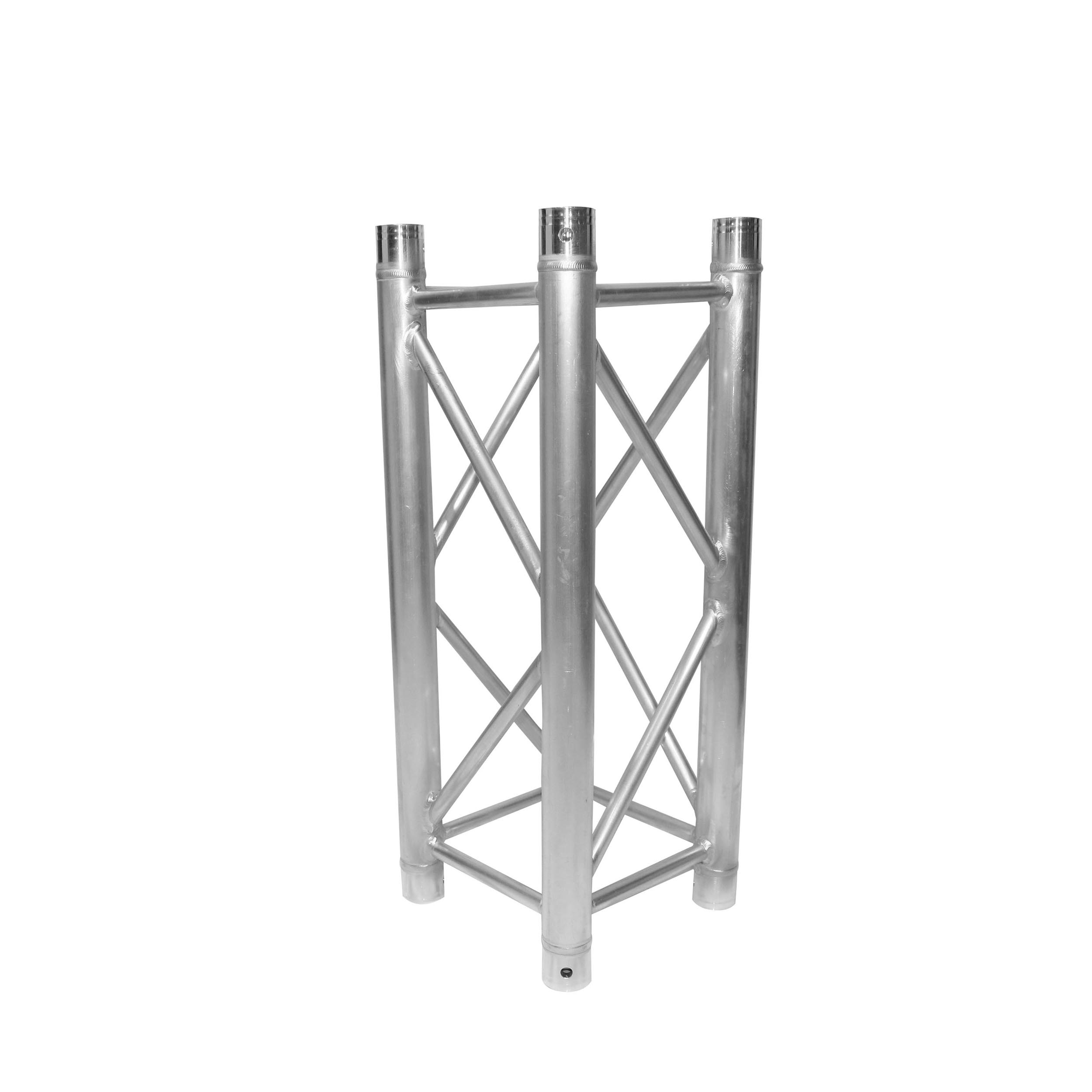

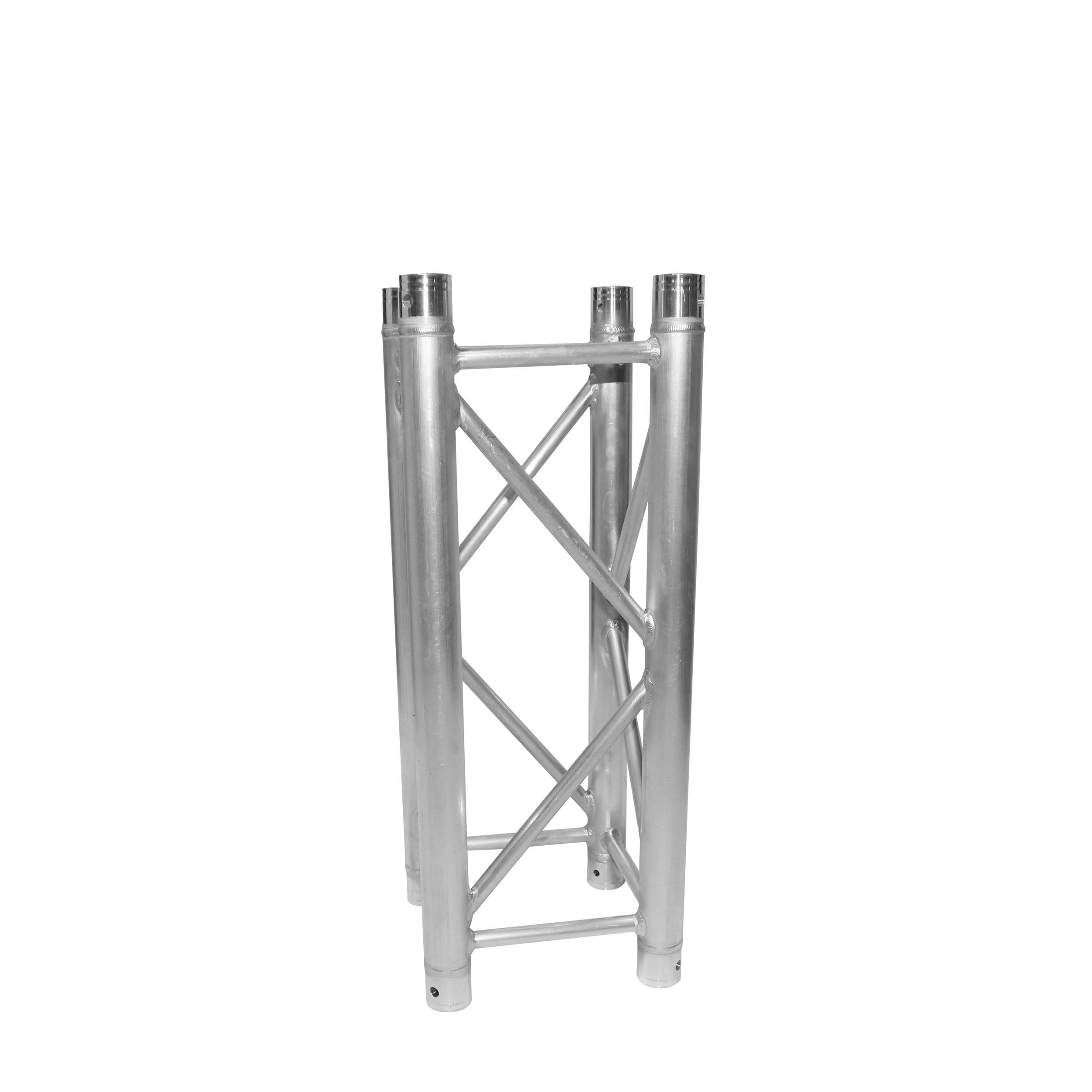

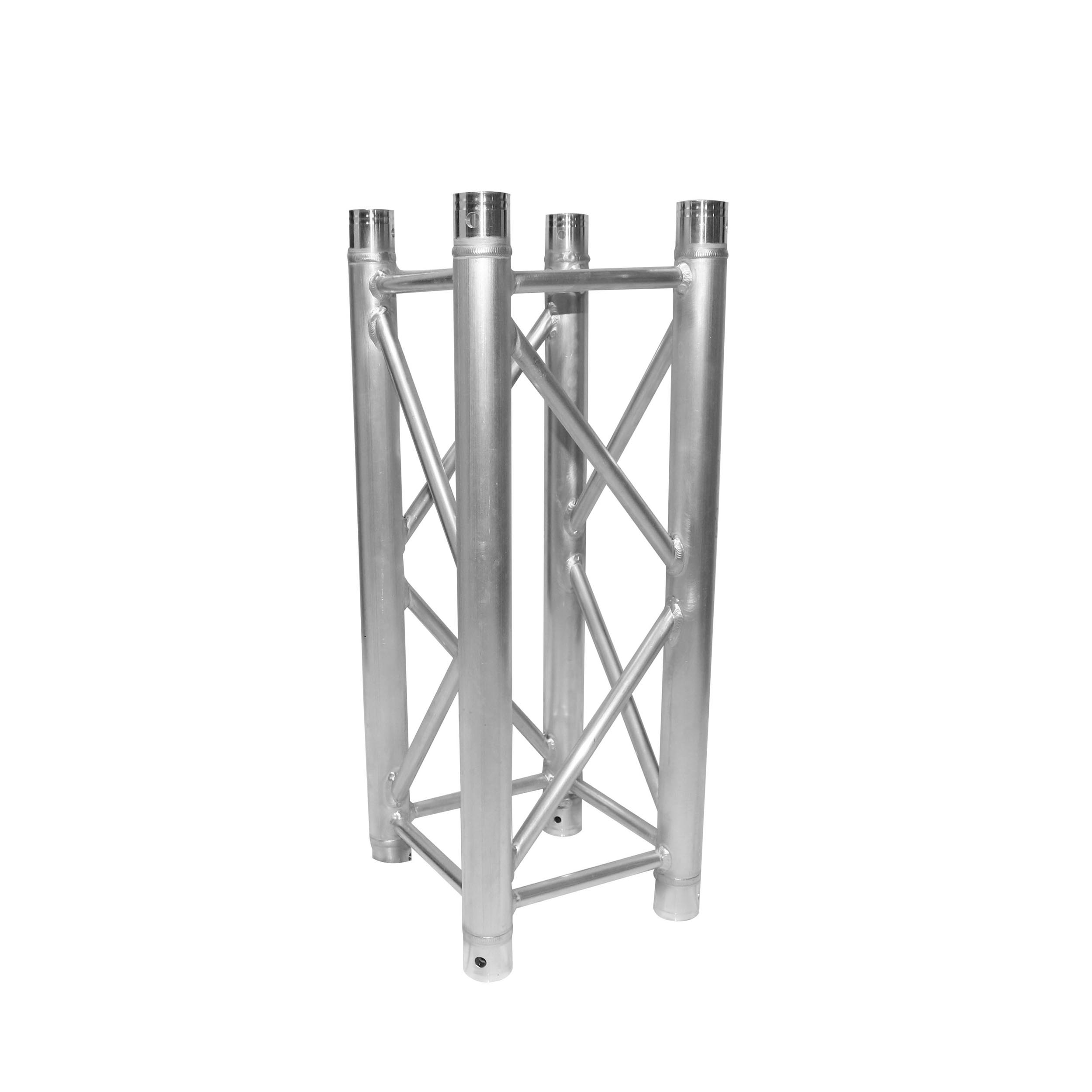

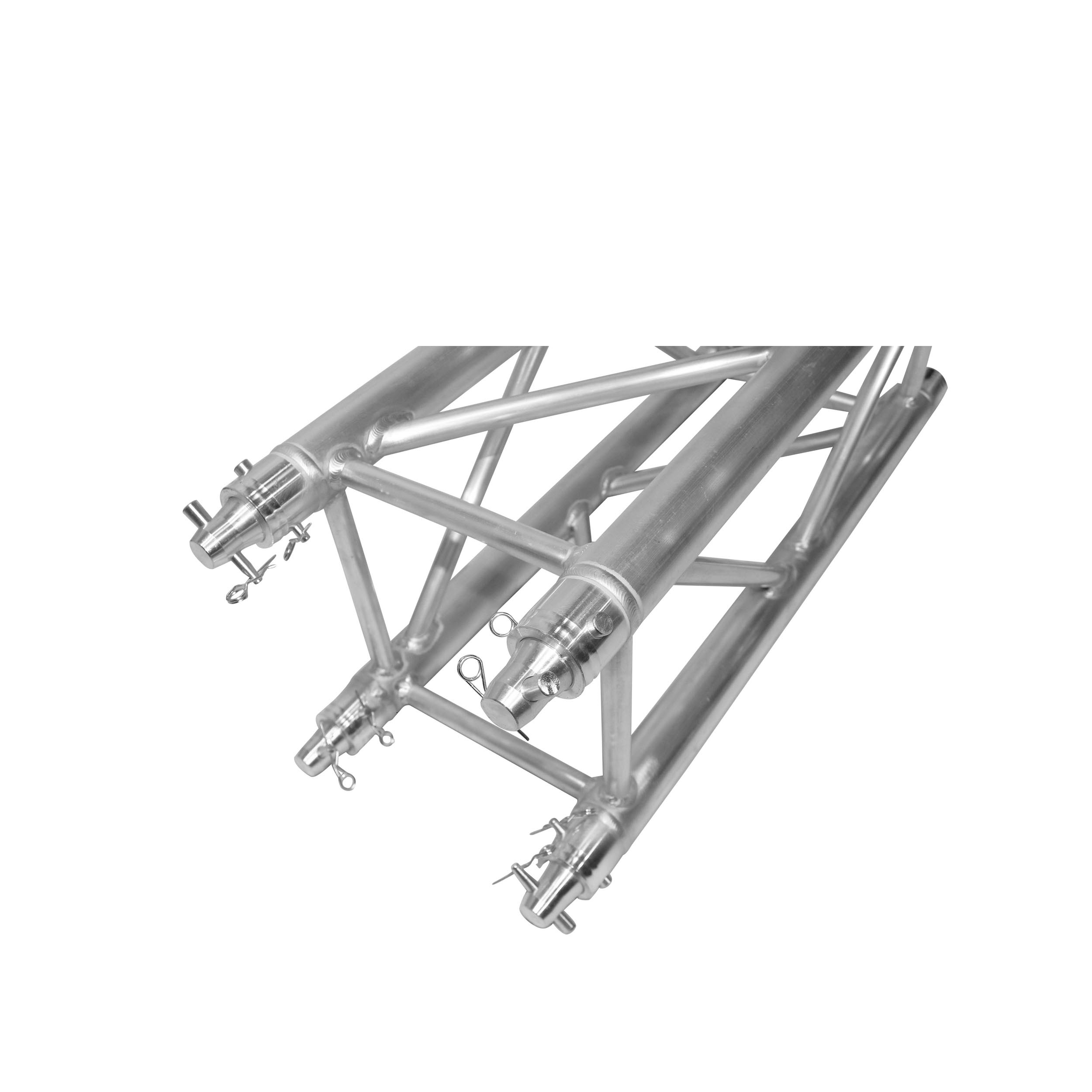

The ProX XT-SQ246 Square Truss Segment (0.75 m / 2.46 ft) is a professional-grade trussing component designed for reliable support in live entertainment, staging, and event production environments. Built from EN-AWT6 6082 aluminum, this rugged truss section offers exceptional strength, durability, and safety for lighting, audio, and display systems.
Part of the trusted ProX XT-SQ (F34) truss series, this segment features a conical connector system that allows quick assembly and compatibility with many other truss brands that use the same connector standard. Precision manufacturing and strict quality control ensure accurate alignment and secure connections for fast setup and breakdown.
The XT-SQ truss system is suitable for a wide range of applications including concert staging, DJ lighting rigs, trade shows, exhibitions, retail displays, nightclubs, and permanent installations. With a wide range of available accessories such as corners, base plates, and connectors, ProX trussing systems allow flexible and scalable configurations for both simple and complex designs.
For larger structures and complex truss systems, professional engineering consultation is always recommended to ensure safe load capacities and structural integrity.
Features
-
2.46 ft (0.75 m) square truss segment
-
Part of the ProX XT-SQ (F34) professional truss series
-
Manufactured from EN-AWT6 6082 aluminum for strength and safety
-
Conical connector system for fast assembly and secure connections
-
Compatible with many F34 style truss systems
-
TUV certified aluminum welding for structural reliability
-
Ideal for stage lighting, DJ rigs, exhibits, and installations
-
Includes one connecting hardware set
Specifications
Model: XT-SQ246
Type: Square Truss Segment
Length:
2.46 ft (0.75 m)
Material:
EN-AWT6 6082 Aluminum
Series:
ProX XT-SQ (F34)
Weight:
15 lbs
Exterior Dimensions:
29.53" H × 11.42" W × 11.42" L
Shipping Dimensions
Box Dimensions:
31.00" H × 12.50" W × 12.50" L
Shipping Weight:
16 lbs
What’s Included
-
1 × ProX XT-SQ246 Square Truss Segment
-
1 × Connecting Hardware Set
