Product Description
The ProX XT-CDF12 Dual Clamping & Folding Plate for Moving Heads is a professional mounting solution designed to dramatically speed up the setup, teardown, storage, and transport of moving head lighting fixtures. This innovative foldaway design allows moving heads to be mounted to truss or pipe while still fitting into standard flight cases without removing the clamps.

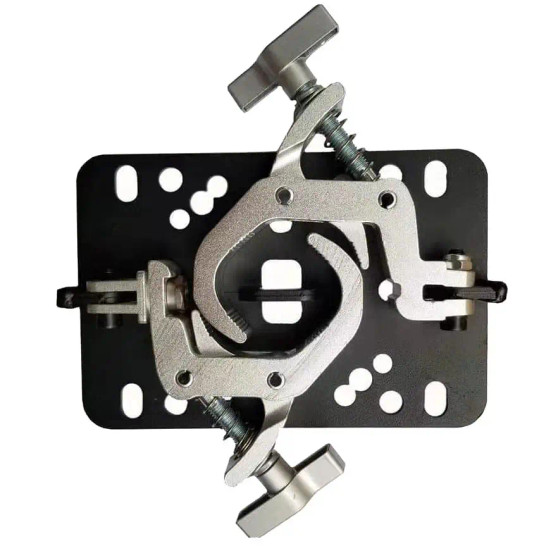

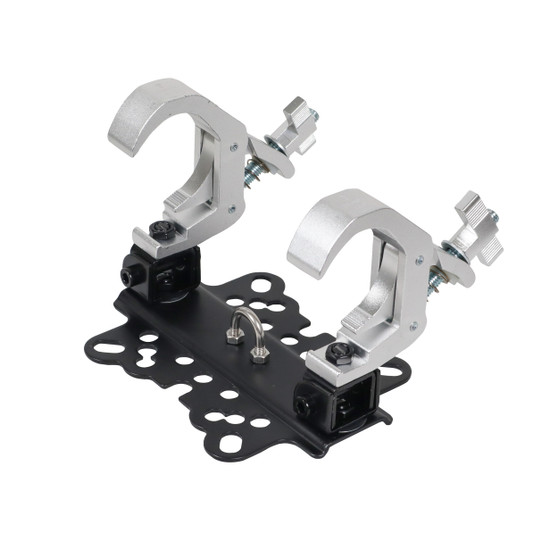

Based on the proven ProX T-C12H Easy Self Lock Clamp design, the XT-CDF12 features one fixed-direction clamp and one rotatable clamp, both securely attached to a heavy-duty steel mounting plate. When folded flat, the clamps interlock with the plate, reducing the total folded height to approximately 1.25 inches (32 mm) for compact transport.
The black powder-coated mounting plate includes multiple hole patterns, making it compatible with a wide range of moving head fixtures and other truss-mounted equipment. Designed specifically to solve common rigging challenges faced by lighting designers, riggers, DJs, and production companies, the XT-CDF12 eliminates the need to remove clamps during packing — saving time, reducing wear, and improving workflow efficiency.
This exclusive ProX design is TÜV-certified, built to exacting standards, and strong enough to securely support even the heaviest professional moving lights.
Features
-
Dual folding clamp mounting plate for moving head fixtures
-
One fixed-direction clamp and one rotatable clamp
-
Foldaway design allows fixtures to remain mounted in flight cases
-
Heavy-duty aluminum clamps with captive coil springs
-
Black powder-coated steel mounting plate
-
Multiple mounting hole patterns for broad fixture compatibility
-
Clamps interlock when folded flat for compact transport
-
TÜV Rheinland® certified welding and construction
-
Exclusive ProX design ©2019 – Patent Applied For
Specifications
-
Product Type: Dual clamping & folding mounting plate
-
Clamp Compatibility: 2 in / 50 mm truss tubes or pipe
-
Material:
-
Clamps: Heavy-duty aluminum
-
Mounting Plate: Steel with black powder coat
-
-
Folded Thickness: Approx. 1.25 in (32 mm)
-
Mounting Hole Patterns:
-
115 mm × 105–115 mm
-
155 mm × 115 mm
-
90 mm × 80 mm
-
Additional universal mounting options
-
-
Certification: TÜV Rheinland® (NRTL)
-
Truss Compatibility: F31 / F32 / F34 truss systems
-
Application: Moving head lighting and truss-mounted equipment
