ProX KT-F34SQ492 4.92Ft. 1.5M K-Truss™ F34 Economy Light-Structural Aluminum Truss | 1.5mm Wall
  • Buy Online
  • Excelent service,

    great products

  • Shipping

    US Continental

  • Location

    1901 Northwest Hwy, Ste 200 Garland, TX, USA

ProX KT-F34SQ492 4.92Ft. 1.5M K-Truss™ F34 Economy Light-Structural Aluminum Truss | 1.5mm Wall

Was: $299.99
Now: $249.99
(0) Write a Review
SKU:
KTruss-F34SQ492
Weight:
16.50 LBS
Shipping:
Calculated at Checkout

Product Description

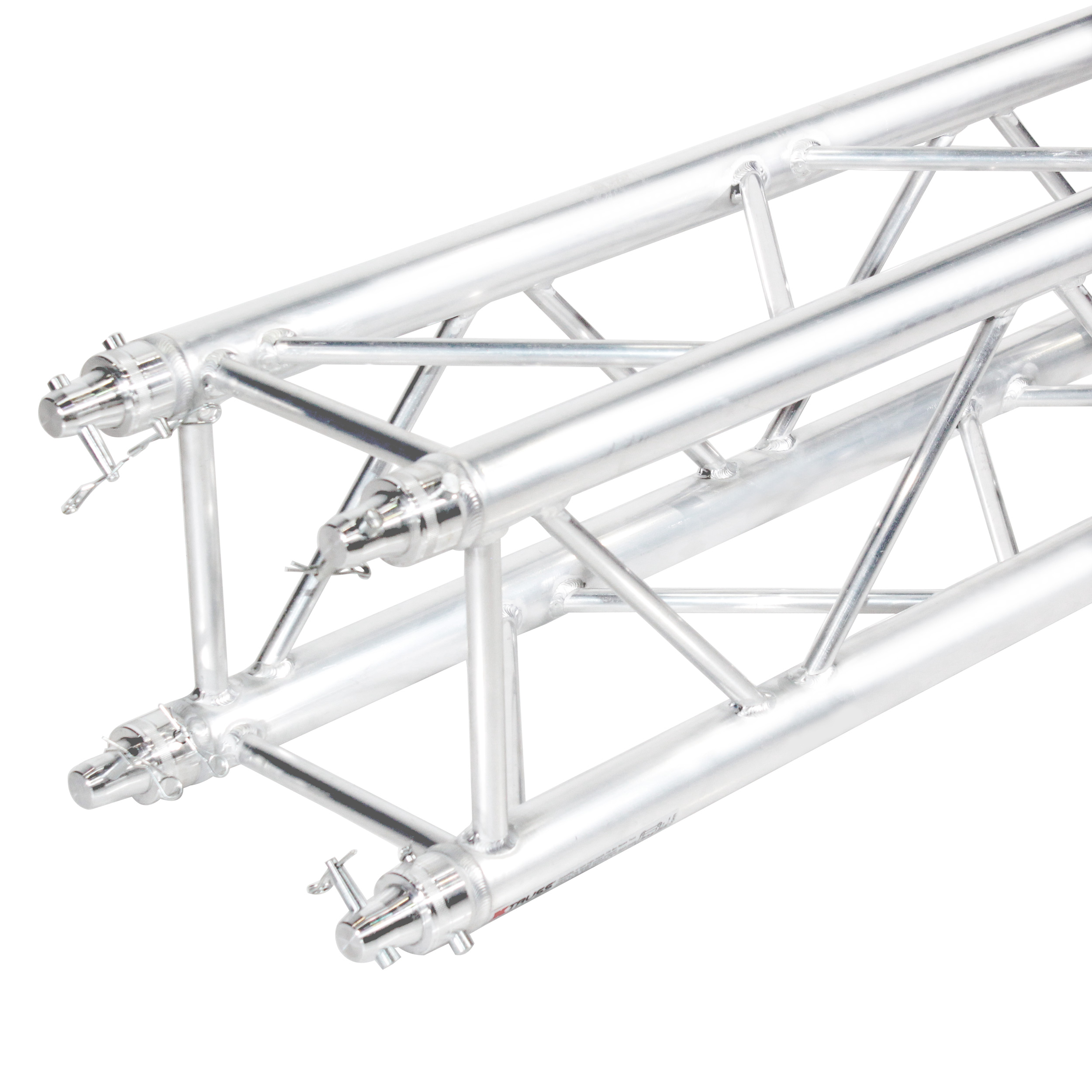

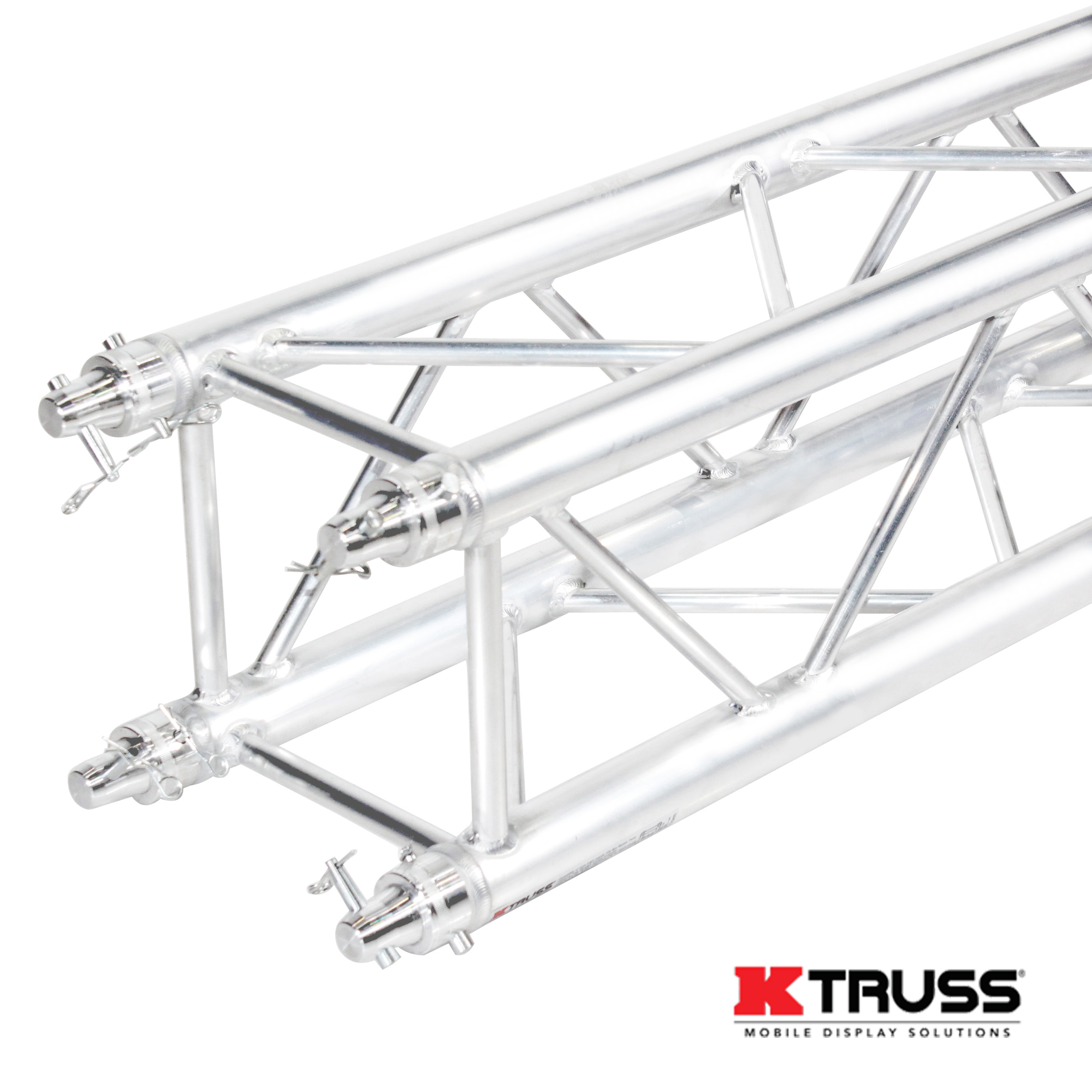

ProX KT-F34SQ492 4.92Ft. 1.5M K-Truss™ F34 Economy Light-Structural Aluminum Truss | 1.5mm Wall

Description

ProX KT-F34SQ492  ProX KT Series F34 Aluminum Truss | 1.5mm Wall is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution and is an Economy Light-Structural trussing system for light-duty use for trade show booths, DJ booths, DJ Totems, architectural non-loadbearing designs, and much more.  The ProX KT-F34SQ492  is particularly well suited for trade shows and light-duty construction of display systems, as well as event technology and as a support system for lighter lighting fixtures. Due to its design appearance combined with a lower cost, it provides the ability for reduced load capacity designs with a standard truss appearance. This system is ideally suited from a simple exhibition display up to a complex trade show booth.

At the heart of the system is a square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors, and accessories that add stability while expanding on limitless configurations.
  • Tolerance Free Standard Conical connector
  • Main Tube wall thickness of .06in (1.5mm)
KT-F34 SERIES DIMENSIONS:
  • Width: 11.42in / 290mm
  • Height: 11.42in / 290mm
  • Main Tube: 2in / 50mm
  • Wall Thickness:  .06in / 1.5mm
  • Braces:  .63in / 16mm
Actual Height:  4.92 ft. (1.5 Meter) F34  4Tube Truss Segment


K Truss products utilize industry-standard dimensions to be compatible to connect to/with many other manufacturers trussing.

Features

  • Compatible in SIZE ONLY w/most major brands F34 Box Square Truss
  • Not intended for replacement or substitute for any standard or heavy-duty load-bearing truss segments!
  • Tolerance Free Standard Conical connector
  • Material: EN-AW T6-6061 Aluminium Display Grade Quality
  • Constructed to the highest quality by certified welders
  • K Series Trussing is an Economy Light-Structural Product primarily designed for display structures.
  • The K-Truss™ load capacity is 75% of the 2mm SQ series.
  • Engineering Drawings and Design Copyright © 2019 by ProX Live Performance Gear®

Note: ProX Live Performance Gear® (XStatic Pro, Inc. ) is not responsible for improper use or overloading by end-users! Consult an engineer for specific applications.  This product has a reduced load chart from ProX Live Performance Gear® and is not intended for replacement or substitute for any standard load-bearing truss segments.

To Fit

Compatible in SIZE ONLY w/most major brands F34 Box Square Truss with conical connectors.

Not intended for replacement or substitute for any load-bearing truss segments!

Dimensions

59.00"L x 11.42"W x 11.42"H

Weight: 15.00 lbs

Shipping Dimensions

60.00"L x 12.00"D x 12.00"H

Shipping Weight: 16.50 lbs

Suggested Shipping Method: Parcel

UPC 019372411192
