Product Description

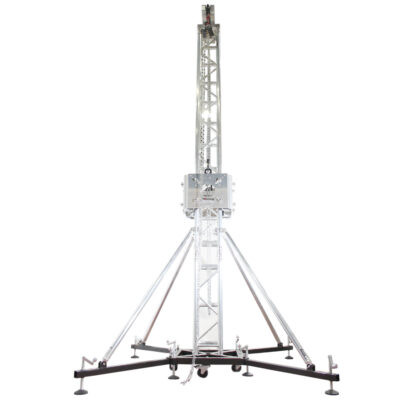

The ProX XTP-GSBPACK3 PRO Truss Tower Stage Lift System Package with Chain Hoist is a complete ground support solution designed for professional stage, lighting, and rigging applications. Built for reliability and versatility, this system provides everything needed to construct two climbable truss tower legs—ideal for supporting medium to heavy-duty truss structures in both indoor and outdoor environments.
This comprehensive package includes heavy-duty base plates with outriggers, sleeve blocks, hinge sets, ladder truss segments, and top sections with I-beam mounts designed for use with manual or electric chain hoists. Also included are two 1-ton manual chain hoists with 30 ft chains, making this a ready-to-deploy lifting solution for staging professionals.
Constructed from high-grade EN-AWT6 6082 aluminum with TÜV-certified welding, ProX trussing delivers exceptional strength, durability, and safety. The system is compatible with industry-standard F34 square conical trussing, ensuring seamless integration with other professional truss components.
Whether you're building a lighting rig, stage roof system, or exhibition structure, this ProX truss tower package provides the strength, flexibility, and safety required for demanding production environments.
Features
- Complete truss tower lift system for professional stage and rigging applications
- Includes 2 × 1-ton manual chain hoists with 30 ft chains
- Four-legged outrigger base system for enhanced stability
- 4-way sleeve block junction for smooth lifting operation
- Ladder-style truss segments for easy climbing and setup
- Heavy-duty hinge blocks for flexible assembly
- Top sections with I-beam mounts and pulley wheels
- TÜV-certified aluminum construction for safety and reliability
- Compatible with F31 / F32 / F34 conical truss systems
- Ideal for indoor and outdoor installations
Specifications
Truss System
- Type: F34 Square Conical Truss Compatible
- Material: EN-AWT6 6082 Aluminum
- Main Tube Diameter: 2 in (50 mm)
- Wall Thickness: 0.125 in (3 mm)
- Brace Diameter: 0.75 in (20 mm)
- Ladder Step Spacing: 9.84 in (250 mm)
Truss Segment (XT-SQPL328)
- Length: 3.28 ft (1 m)
- Dimensions: 11.42 in x 11.42 in (290 x 290 mm)
- Weight: 21 lbs (9.5 kg) per segment
System Weight
- Product Weight: 265 lbs
- Shipping Weight: 285 lbs
- Shipping Method: LTL Freight
Certifications
- TÜV Rheinland Certified Welding and Manufacturing
What’s Included
- 2 × XT-TOPCM Top Truss Sections (I-beam mount with pulley wheels)
- 2 × XT-BLOCK-MK2 Sleeve Blocks (4-way junction)
- 8 × XT-HINGE Blocks
- 2 × XT-GSB MK3 Rigger Bases with extendable feet
- 8 × XT-GSOUTS3 3 ft Outrigger Braces with clamps
- 2 × XT-SQPL328 3.28 ft Ladder Truss Segments
- 2 × 1-Ton Manual Chain Hoists with 30 ft (9 m) chain
Applications
Perfect for professional rigging and staging environments:
- Concert and touring productions
- Stage roof and lighting support systems
- Outdoor festivals and events
- Exhibition and trade show structures
- Permanent nightclub and venue installations
Important Notes
- Always consult a certified structural engineer for complex rigging designs
- Designed for use with compatible F34 conical truss systems
- Ensure proper load ratings and safety procedures are followed
