Product Description

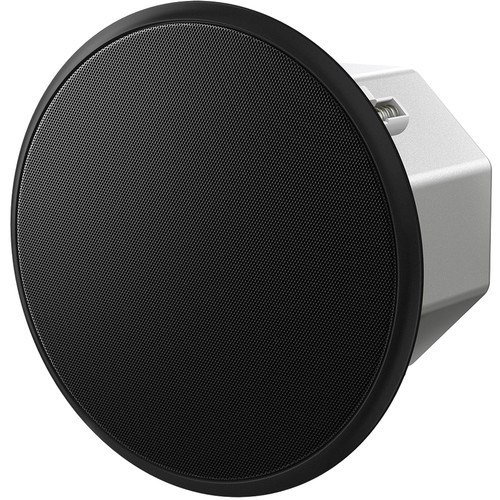

The Pioneer Pro Audio CM-C56T is a professional 6.5-inch 2-way in-ceiling speaker system engineered for commercial audio installations that require higher output and broader coverage while maintaining a discreet appearance. Sold as a pair, each speaker handles 60W RMS (120W peak) and delivers a frequency response of 85 Hz – 20 kHz, making it ideal for retail stores, restaurants, hospitality venues, offices, public spaces, and event facilities.
Leveraging Pioneer’s expertise in professional club sound systems, the CM Series provides crisp, clear audio with consistent spatial coverage. The CM-C56T features a 6.5-inch woofer paired with a ¾-inch dome tweeter in a coaxial two-way configuration, delivering balanced mid and high frequencies across a 90-degree coverage area while minimizing phase cancellation.
The speaker operates in 16-ohm low impedance mode and includes a built-in transformer tap for 70V and 100V distributed audio systems, offering flexible deployment options across various installation distances.
Its compact ported enclosure with a protective steel back can enhances low-frequency performance, while the flush-mount grille ensures seamless integration into ceilings for a clean, professional look.
Key Features
Clear, Smooth Sound with Controlled Coverage
-
6.5" woofer with ¾" dome tweeter
-
Magnetic fluid field tweeter design for enhanced clarity
-
Vibration-dampening system for smooth high frequencies
-
Coaxial design for even 90° sound dispersion
-
Frequency response: 85 Hz – 20 kHz
-
60W RMS / 120W Peak power handling
Flexible System Integration
-
16-ohm low impedance operation
-
Built-in transformer tap for 70V and 100V systems
-
Multiple selectable wattage taps
-
Euroblock connector for loop-through wiring
-
Suitable as main speakers in small-to-medium spaces or fill speakers in larger installations
Safety and Installation Features
-
One-touch spring-loaded ceiling mounting tabs
-
Slide-lock grille with fall-prevention function
-
Includes C-rings and tile bridges
-
Protective steel back can
-
Ported enclosure for improved low-end response
Ideal Applications
-
Retail stores and shopping centers
-
Restaurants and cafés
-
Offices and conference rooms
-
Hospitality venues
-
Public buildings
-
Corridors and bathrooms
-
Distributed commercial audio systems
Specifications
General
-
Type: 6.5" 2-way in-ceiling speaker
-
Sold as: Pair
-
Power Handling: 60W RMS / 120W Peak
-
Frequency Response: 85 Hz – 20 kHz
-
Impedance: 16 ohms
-
Coverage: 90°
Drivers
-
LF Driver: 6.5" woofer
-
HF Driver: ¾" dome tweeter
System Compatibility
-
Low impedance (16 ohm)
-
70V and 100V distributed audio systems
-
Built-in transformer tap
Connectivity
-
Euroblock connector
-
Loop-through capable
Construction
-
Flush-mount grille design
-
Steel back can
-
Ported enclosure
-
White finish
Installation Hardware Included
-
C-rings
-
Tile bridges
-
Spring-loaded mounting tabs
-
Slide-lock grille with safety feature
