Product Description

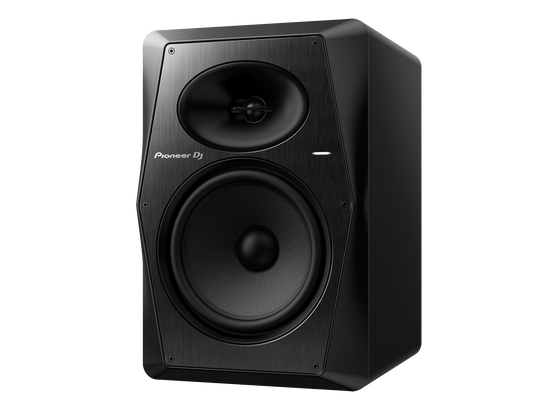

The Pioneer DJ VM-80 is a 120W powered studio monitor designed to deliver clear, low-distortion audio with fast, punchy bass response. Featuring an 8-inch aramid fiber cone woofer, a 1-inch soft dome tweeter, and integrated Class D amplification with 96 kHz DSP, the VM-80 provides wide-bandwidth reproduction ideal for DJing, music production, and home studio applications.
Engineered to recreate club-style energy while maintaining accurate monitoring performance, the VM-80 combines advanced acoustic design, precision DSP tuning, and flexible EQ controls to adapt to virtually any room environment.
Product Description
Clear, Low-Distortion Audio with Fast-Attacking Bass
The VM-80 is built around an 8" aramid fiber woofer and 1" dome tweeter in a 2-way active configuration. The lightweight yet rigid aramid cone is 30% lighter than conventional paper-lined cones, resulting in tighter bass response and enhanced low-mid punch.
The integrated Vortex Bass Accelerator improves airflow through the bass reflex port, minimizing vibration and ensuring controlled, tight low-end performance.
With a frequency range of 34 Hz – 36 kHz and maximum SPL of 115 dB, the VM-80 delivers powerful, full-range sound suitable for both studio monitoring and DJ playback.
High-Quality Components & Class D Amplification
Every VM series speaker features a Class D amplifier with 96 kHz DSP, delivering:
-
Wide-bandwidth audio reproduction
-
Low distortion at high output levels
-
High-energy performance with efficient power handling
The 4 mm thick rigid aluminum hexagonal front baffle suppresses resonance and vibration, ensuring authentic sound reproduction true to the original source material.
Constant Directivity Horn
The VM-80’s constant directivity horn provides:
-
Broad, uniform listening area
-
Smooth crossover between woofer and tweeter
-
Controlled mid and high-frequency dispersion
-
Natural, balanced sound reproduction
The horn design works in conjunction with the woofer edge geometry for seamless frequency integration.
DSP Control – Shape Your Sound for Any Room
All VM series monitors are voiced flat by default to ensure accurate monitoring. The VM-80 includes two rear-panel EQ knobs — Low EQ and High EQ — each with 4 selectable positions, providing 16 total EQ combinations.
Low EQ Settings
-
L1 – Room 1: -6 dB HPF at 63 Hz (reduces bass near walls)
-
L2 – Flat: Neutral frequency response
-
L3 – Room 2: +2.5 dB boost at 50 Hz
-
L4 – Club Bass: +5 dB at 50 Hz and +2 dB at 200 Hz
High EQ Settings
-
H1 – Room 1: -3 dB high shelf (3.5 kHz – 12 kHz)
-
H2 – Flat: Neutral frequency response
-
H3 – Room 2: +3 dB high shelf at 7 kHz
-
H4 – Bright Treble: +1.5 dB at 4 kHz and +3.5 dB at 8 kHz
These adjustments allow precise tuning based on room acoustics, speaker placement, and listening preference.
Key Features
-
120W bi-amplified 2-way studio monitor
-
8" (203 mm) aramid fiber cone woofer
-
1" soft dome tweeter
-
Class D amplification with 96 kHz DSP
-
Vortex Bass Accelerator
-
Constant directivity horn
-
16 selectable DSP EQ settings
-
Hexagonal aluminum front baffle
-
Professional black finish
Technical Specifications
Woofer
8" (203 mm) Aramid Cone
Tweeter
1" Dome
Amplifier Output
Class D with 96 kHz DSP
-
LF: 90 W / 4 Ω
-
HF: 30 W / 4 Ω
-
Total Power: 120 W
Frequency Range
34 Hz – 36 kHz
Maximum Sound Pressure Level
115 dB
Dimensions (W × H × D)
-
Width: 267 mm (10.51")
-
Height: 400 mm (15.75")
-
Depth: 325 mm (12.80")
Weight
9.7 kg (21.4 lbs)
Finish
Black
