Product Description

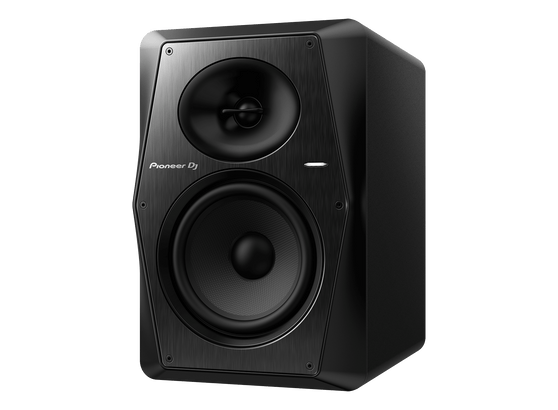

The Pioneer DJ VM-70 is a 100W powered studio monitor engineered to deliver clear, low-distortion sound with fast-attacking, punchy bass. Designed for DJs and music producers who want accurate monitoring with club-style energy, the VM-70 features a 6.5-inch aramid fiber cone woofer, 1-inch dome tweeter, and Class D amplification with 96 kHz DSP processing.
With flexible Low and High EQ controls offering 16 tuning combinations, the VM-70 adapts easily to home studios, professional production rooms, and DJ setups of all sizes.
Product Description
Clear, Low-Distortion Audio with Fast-Attacking Bass
The VM-70 utilizes a 6.5" (165 mm) aramid fiber cone woofer paired with a 1" dome tweeter in a bi-amplified 2-way design. The newly developed aramid cones are 30% lighter than conventional paper-lined cones, providing:
-
Deeper, tighter bass response
-
Enhanced low-mid punch
-
Improved durability and rigidity
The integrated Vortex Bass Accelerator optimizes airflow through the bass reflex port, minimizing unwanted vibration and ensuring controlled, accurate low-end performance.
With a frequency range of 37 Hz – 36 kHz and maximum SPL of 112 dB, the VM-70 delivers balanced full-range sound ideal for DJing and music production.
High-Quality Components & Class D Amplification
Each VM series monitor includes a Class D amplifier with 96 kHz sampling DSP, enabling:
-
Wide-bandwidth audio reproduction
-
Low distortion at higher output levels
-
Efficient, high-energy sound performance
The rigid 4 mm aluminum hexagonal front baffle suppresses resonance and vibration, ensuring accurate sound reproduction true to the original source.
Constant Directivity Horn
The VM-70 features a precision-engineered constant directivity horn that:
-
Provides a wide, uniform listening sweet spot
-
Ensures smooth crossover between woofer and tweeter
-
Maintains consistent mid and high-frequency response
-
Produces natural, balanced audio across the room
DSP Control – Tune Your Sound to the Room
The VM-70 is voiced flat by default for accurate monitoring. Rear-panel Low EQ and High EQ knobs each provide 4 selectable positions, allowing 16 total EQ combinations.
Low EQ Settings
-
L1 – Room 1: -6 dB HPF at 63 Hz (reduces bass when placed near walls)
-
L2 – Flat: Neutral frequency response
-
L3 – Room 2: +2.5 dB boost at 50 Hz
-
L4 – Club Bass: +5 dB at 50 Hz and +2 dB at 200 Hz
High EQ Settings
-
H1 – Room 1: -3 dB high shelf (3.5 kHz – 12 kHz)
-
H2 – Flat: Neutral frequency response
-
H3 – Room 2: +3 dB high shelf at 7 kHz
-
H4 – Bright Treble: +1.5 dB at 4 kHz and +3.5 dB at 8 kHz
These simple, tactile controls allow quick adjustments without navigating digital menus.
Key Features
-
100W bi-amplified 2-way studio monitor
-
6.5" (165 mm) aramid fiber cone woofer
-
1" dome tweeter
-
Class D amplification with 96 kHz DSP
-
Vortex Bass Accelerator technology
-
Constant directivity horn
-
16 selectable DSP EQ settings
-
Rigid hexagonal aluminum front baffle
-
Professional black finish
Technical Specifications
Woofer
6.5" (165 mm) Aramid Cone
Tweeter
1" Dome
Amplifier Output
Class D with 96 kHz DSP
-
LF: 70 W / 4 Ω
-
HF: 30 W / 4 Ω
-
Total Power: 100 W
Frequency Range
37 Hz – 36 kHz
Maximum Sound Pressure Level
112 dB
Dimensions (W × H × D)
-
Width: 229 mm (9.02")
-
Height: 341 mm (13.43")
-
Depth: 312 mm (12.28")
Weight
7.7 kg (17.0 lbs)
Finish
Black
