Product Description
KEY FEATURES
EXCELLENT SOUND DESIGN
Just like the PLX-1000, the PLX-500 is built to produce a high-quality vinyl sound. The shortest possible audio routing from the stylus to the outputs reduces distortion, while the phone/line output switch lets you connect directly to your sound system or to powered speakers with no need for an external amplifier.
EASY DIGITAL RECORDING
Record your vinyl collection to high-quality digital files by simply connecting the turntable to your PC or Mac via the USB out.
SMOOTH DJ PLAY
Use the PLX-500 to mix and scratch your vinyl records or combine the turntable with rekordbox dvs, a compatible DJ mixer and the RB-VS1-K Control Vinyl to play and perform with your digital files.

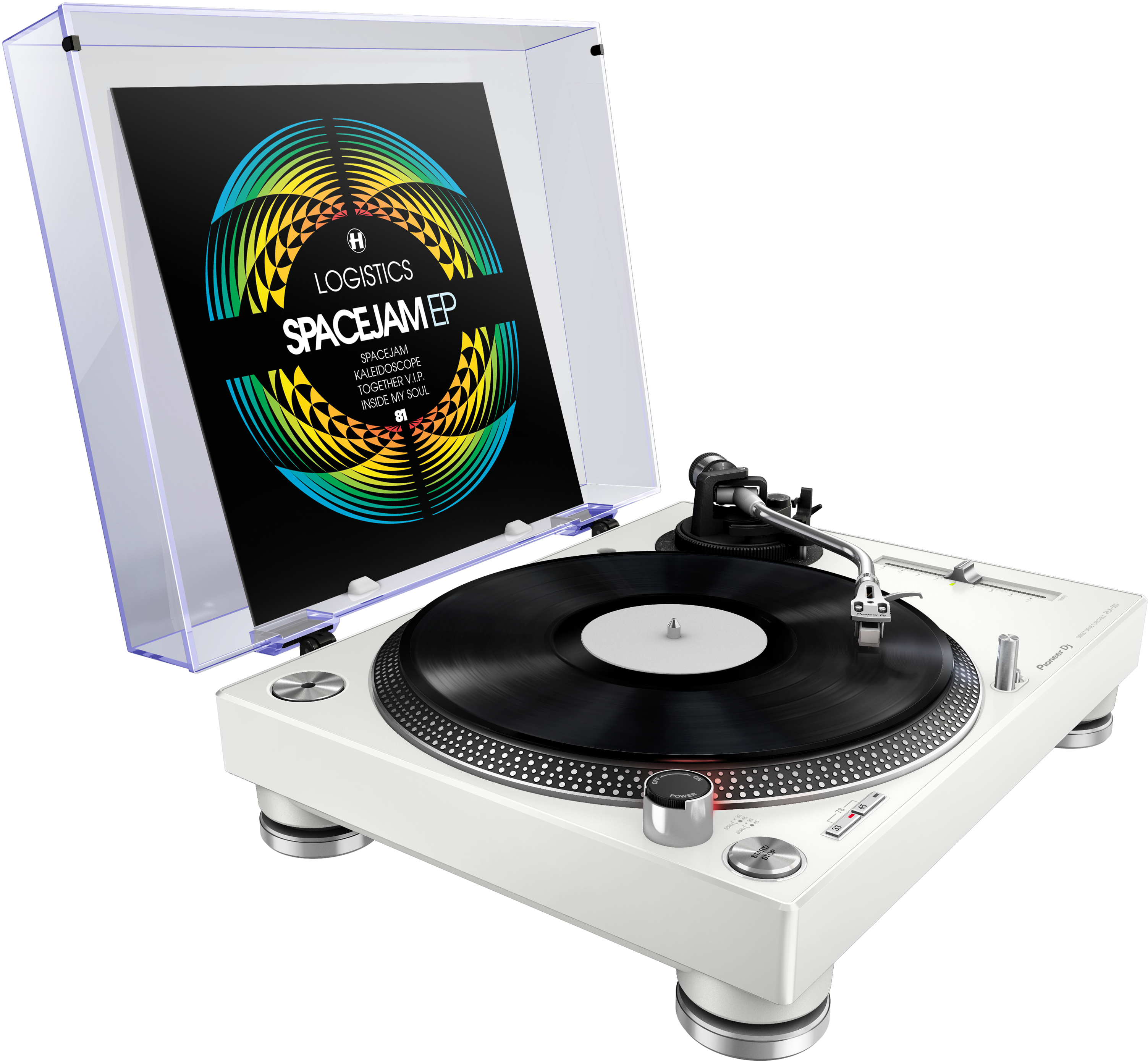

COVER ART DISPLAY
Put your record covers on display while listening to your vinyl thanks to the sleeve stand inside the dust cover.
Pick your colour
The PLX-500 is available in black or white to match the colour of your gear or the interior of your home.
Start from scratch
This turntable comes with all the accessories you need to get started: a dust cover with jacket stand, a slipmat and a silver edition PC-HS01-S headshell (cartridge and stylus included).
rekordbox dvs
When you use our rekordbox dj software, you can buy the rekordbox dvs Plus Pack to get low latency scratch control with music from your rekordbox library.
Main Features
- Slip mat
- Dust cover with jacket stand
- Adapter for 45 EP records
- Head shell (with cartridge)
- Balance aAudio conversion cord:1 Stereo pin plug (female), 1 Stereo mini plug (male)
- USB cord
Turntable
Drive Method:Servo-type direct drive
Platter:Aluminium, die-casting diameter: 332 mm
Motor:3-phase, brushless DC motor
Braking System:Electronic brake
Rotation Speed:33⅓, 45, 78 rpm
Rotation Adjustment Range:±8 %
Wow and Flutter:< 0.15% WRMS
Signal-to-Noise Ratio:50 dB
Starting Torque:> 1.6 kgf・cm
Start Time:Within 1 sec (at 33⅓ rpm)
SPECIFICATIONS
Width: 450 mm
Height:159 mm
Depth:368 mm
Weight:10.7 kg

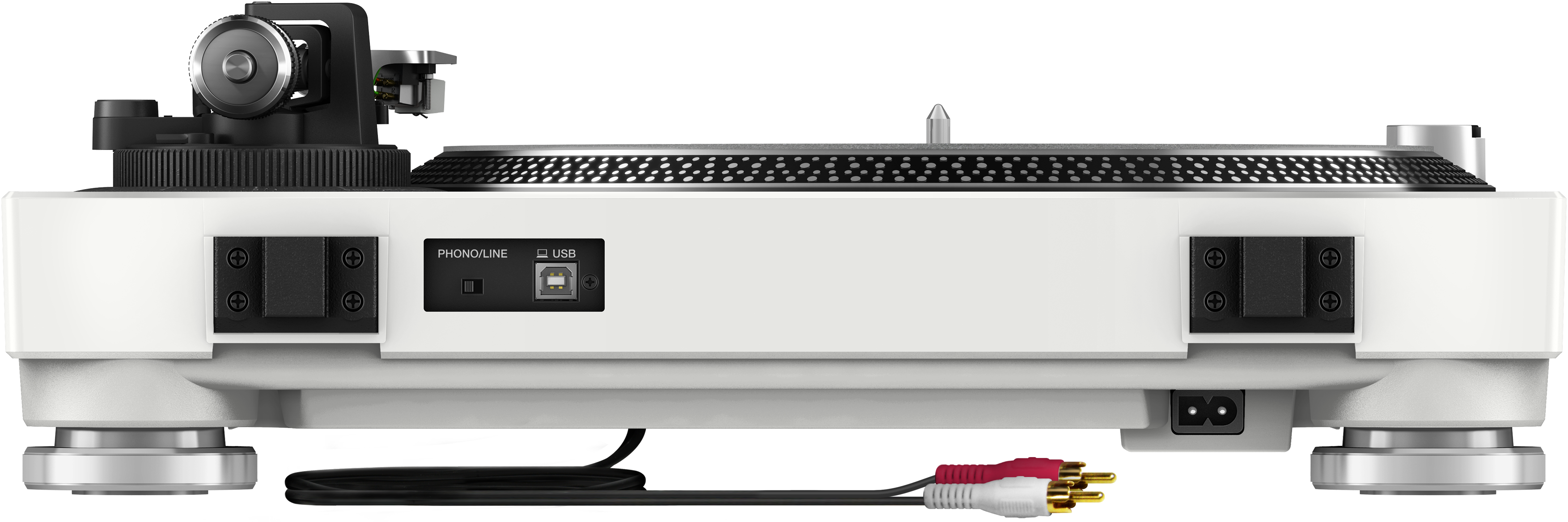

Terminals
USB:1 USB B port
Outputs:1 PHONO/LINE (RCA)
Tone Arm
Arm Type:Universal type S-shape tone arm, Gimbal-supported type, bearing structure, Static balance type
Overhang:16 mm
Effective Length:230.5 mm
Tracking Error:Within 3°
Height Adjustment Range:6 mm
Stylus Pressure Variable Range:0-4 g (1 scale 0.1 g)
Proper Cartridge Weight:< 9.5 g
Cartridge type:VM
