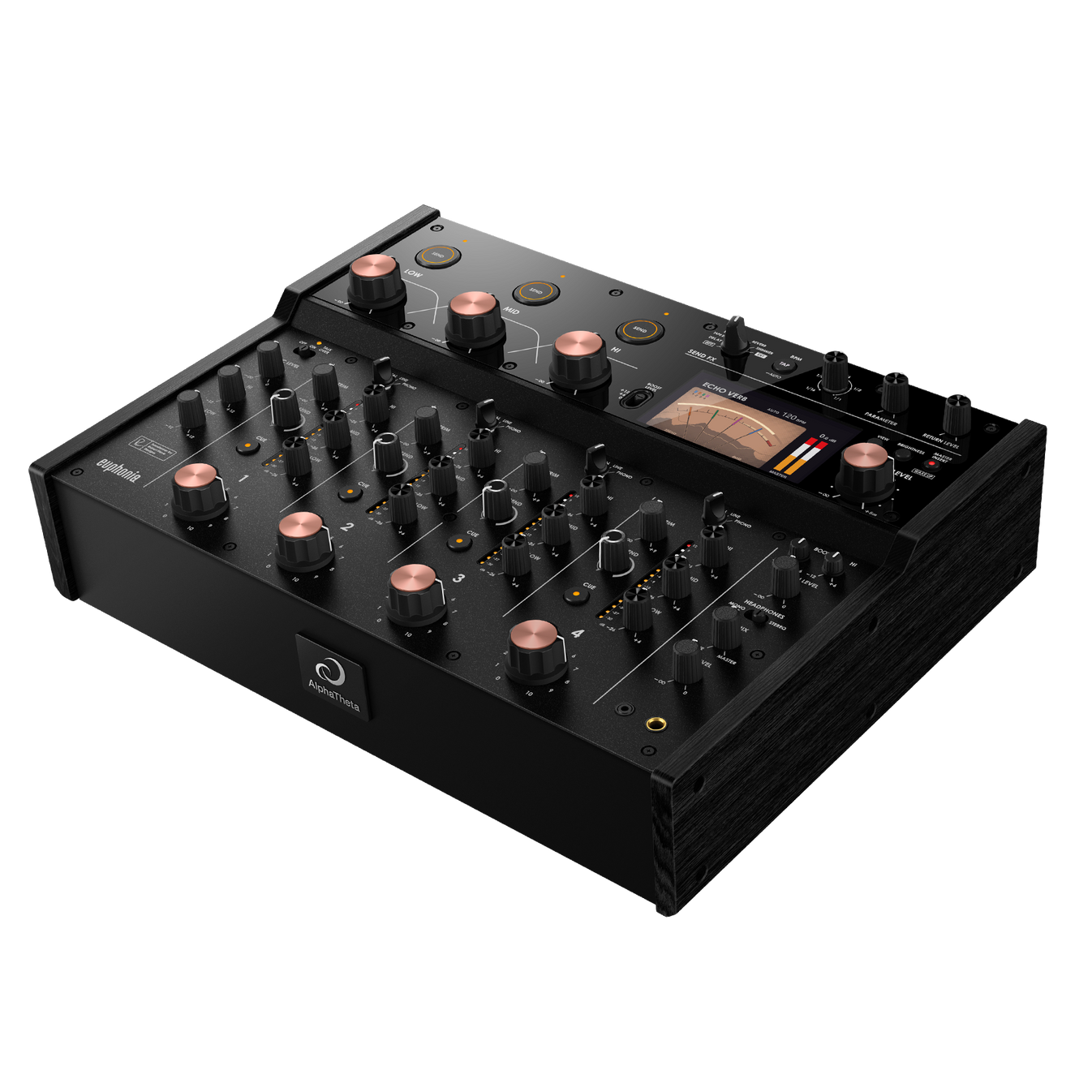

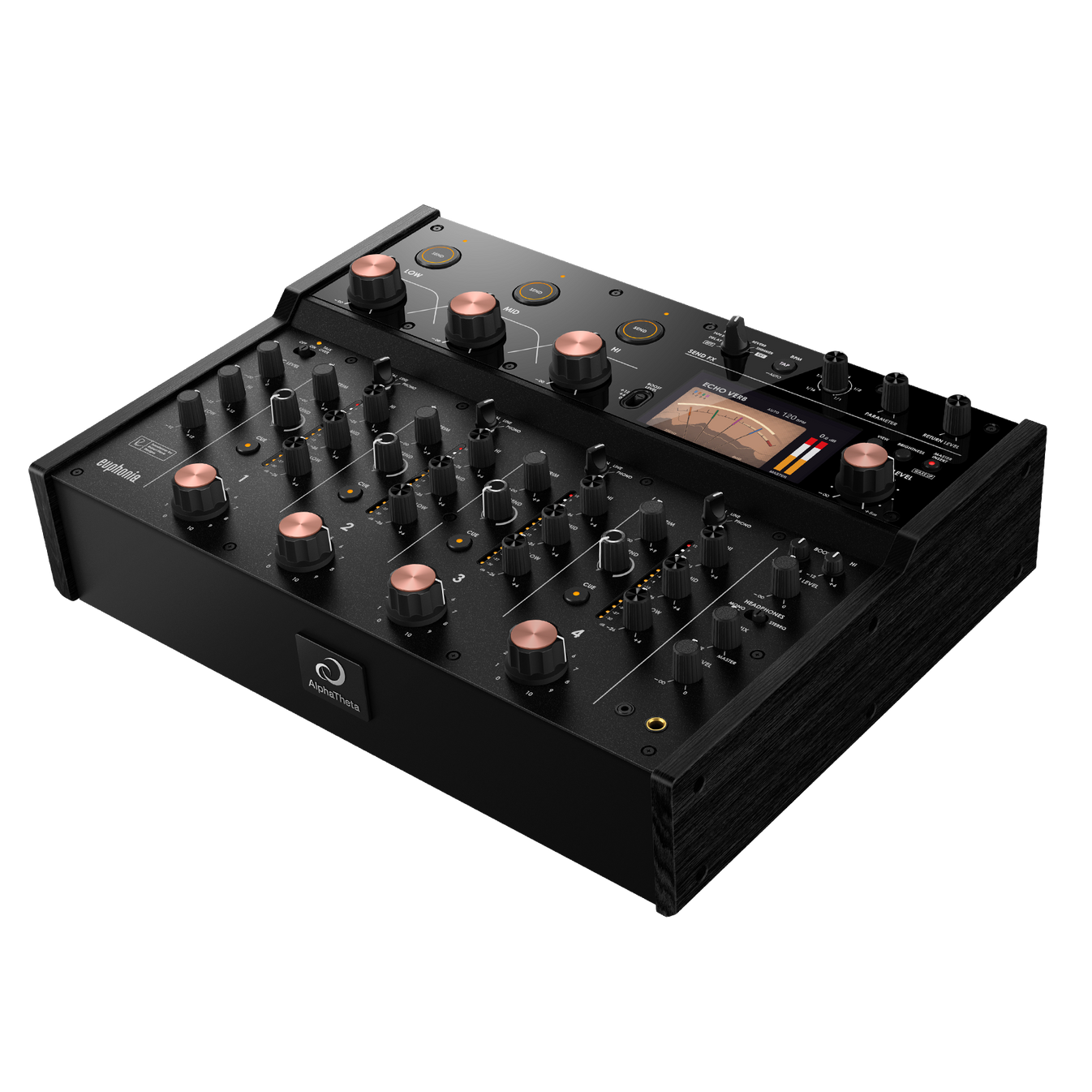

Product Description
The euphonia produces a euphoric sound with the clarity of digital and the richness of analog that’s never been heard from a DJ mixer before. To deliver a clearer sound quality that accurately reproduces the expression of the music, the euphonia uses high-quality 32-bit A/D and D/A converters as well as 96 kHz/64-bit floating point mixing processing operations in the DSP, utilizing the digital signal processing technology AlphaTheta has developed over many years. All sound coming out of the euphonia passes through a transformer circuit co-designed by AlphaTheta and Rupert Neve Designs, the legendary makers of outstanding analog audio circuitry and mixing desks revered by artists and sound engineers around the world. This transformer circuit, tuned specifically for the euphonia, adds harmonics to the music and creates a glossy and energetic sound that’s smoother for mixing. Low frequencies such as kicks and bass are more stable and punchier, mid frequencies like vocals and instruments have more presence and gloss, and high frequencies such as hi-hats sound silky and natural. The transformer breaks down the barrier between vintage live and modern electric sounds, making mixing easier and surprisingly natural, as if recordings in different styles were originally one piece of music.
Other features
- 2 options for connecting external effects units (Send/Return and Master Insert)
- Digital (coaxial) in terminal
- Built-in USB Type-C audio interface for PC/Mac
- Compatible with rekordbox DJ software
- Compatible with Serato DJ Pro DJ software (license needed)
- 2Band Booth EQ
- Lockable Power Cord (not available in some regions)
- AlphaTheta Care extended warranty service
euphonia specifications
| Max. External Dimensions (W × D × H) |
429.2 × 331.0 × 119.9 mm / 16.90″ × 13.03″ x 4.72″ |
|---|---|
| Main unit weight | 9.5 kg / 20.94 lbs. |
| Frequency Response | 20 Hz － 40 kHz (LINE) |
| S/N Ratio | 107 dB (USB, DIGITAL IN) 88 dB (PHONO) 105 dB (LINE) 79 dB (MIC) |
| Power Requirements | AC 110 V － 240 V, 50 Hz / 60 Hz |
| Power Consumption | 43 W |
| Accessories | Power Cord Warranty (for some regions) Quick Start Guide Precautions for Use |
| Compatible Software | rekordbox Serato DJ Pro |
Terminals
| Inputs | DIGITAL IN × 4 (coaxial) LINE × 4 (RCA) PHONO × 4 (RCA) MIC x 1 (XLR & 1/4″ TRS jack) |
|---|---|
| Outputs | MASTER × 1 (XLR) BOOTH × 1 (1/4″ TRS jack) REC × 1 (RCA) PHONES × 2 (1/4″ stereo phone jack, 3.5 mm stereo mini jack) |
| USB | USB Type-C × 1 |
| Others | SEND × 2 (1/4″ TS jack) RETURN × 2 (1/4″ TS jack) |
