\nThe Taurus family of products is Nova’s second-generation multimedia player for small to medium-sized LED full color displays.
\n
\n** 4G is an optional feature and is not included **
\n
\n |
\n
\n
\n

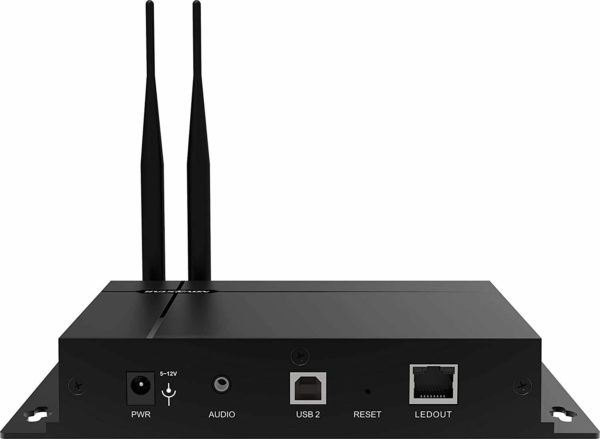

\nNovastar Taurus TB2-4G LED Multimedia PlayerLoad capacity: 650,000
\n
\nProcessing capacity: 4 cores, 1GB memory + 8GB storage on board,optional 4G
\n
\nWifi function: √
\n
\nAsynchronous switching: √
\n
\n3G, 4G functions: √ (optional)
\n
\nRedundant backup: ×
\n
\nStitching Carrier: ×
\n
\nApplication: Indoor and outdoor small fixed LED display,window transparent screen
\n
\nNovastar Taurus series video controller is the second-generation multimedia player for small and medium-sized full-color LED displays.
\n
\nNovastar TB2-4G characteristics:
\n
\nSupports synchronous asynchronous dual mode.
\n
\nStrong processing performance.
\n
\nComprehensive control solution.
\n
\nSupport WiFi AP connection.
\n
\nSupport 4G module.
\n
\nSupport USB connection to PC.
\n
\nThe comprehensive control solution not only supports program release and screen control on the PC, mobile phone and LAN, but also supports remote centralized release and monitoring.
\n
\nNovastar TB2-4G:
\n
\nSupports gigabit wired networks.
\n
\nSupports HDMI input and full-screen adaptive playback.
\n
\nSupports loading capacity 650,000 pixels,width up to 1920 pixels and height up to 1080 pixels.
\n
\nSupport U disk program import and playback.
\n
\nSupport stereo audio output.
\n
\nOnboard brightness sensor interface,automatic and timing intelligent brightness adjustment.
\n
\nApplication:
\n
\nNovastar Taurus series is widely used in LED commercial advertising display, such as light pole display, chain store screens, advertising poster, small screens, retail store screens, door-to-head screens, car screens without a PC.
\n
\nPowerful processing performance
\n
\n4-core processor, clocked at 1.2GHz
\n
\nSupport 1080P
\n
\n1GB memory
\n
\nOnboard 32GB storage, available 28GB
\n
\nLAN program release and control
\n
\nRemote remote program release and control
\n
\nComprehensive control solution
\n
\nPC program sending and control
\n
\nRemote cluster monitoring
\n
\nMobile program release and control
\n
\nSupport synchronous and asynchronous dual mode
\n
\nNovastar TB2-4G (optional 4G) supports synchronous and asynchronous dual modes, which is convenient for users.
\n
\nWhen using video source, TB2-4G (optional 4G) is asynchronous mode; when using an HDMI-input video source, TB2-4G (optional 4G) is synchronous mode. For synchronous mode, the user can enable full screen auto zoom according to the size of LED display.
\n
\nFull screen zoom requirements in synchronous mode:
\n
\n64 pixels ≤ video source width ≤ 2048 pixels
\n
\nSupport USB connection to PC
\n
\nNovastar TB2-4G (optional 4G) provides 1 type B USB interface. Users only need to connect to the PC, and no other steps are required to use the software NovaLCT and ViPlex Express for screen.
\n
\nSupport 4G module
\n
\nNovastar TB2-4G (optional 4G) supports 4G modules. After starting mobile data network on the client software ViPlex, you can connect to the Internet through a 4G network. Wired networks have higher priority than 4G networks.
\n
\nElectrical parameters
\n
\nStorage memory 1GB
\n
\nInput voltage 5V DC 15W
\n
\nStorage 32GB onboard, user available 28GB
\n
\nHumidity 0% RH ～ 80% RH, non-condensing
\n
\nHumidity 0% RH ～ 80% RH, non-condensing
\n
\nWorking environment temperature -20 ℃ ～ 60 ℃
\n
\nStorage environment temperature -40 ℃ ～ 80 ℃
\n
\nPackaging Information Dimensions (L × W × H) 335mm × 190mm × 62mm
\n
\n1 × TB2-4G (optional 4G)
\n
\n1 × Quick Guide
\n
\n1 × WiFi
\n
\n1 × power adapter (5V 3A)
\n
\nDimensions (length x width x height) 196.0mm x 115.5mm x 34.0mm
\n
\nProtection class IP20
\n
\nWeight 304.5g
