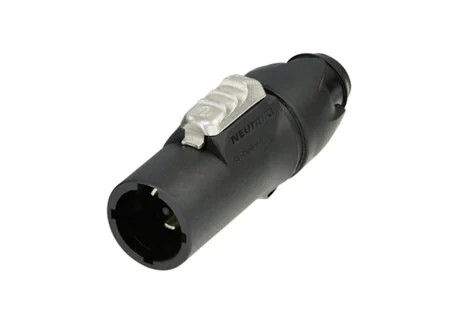

Neutrik NAC3MX-W-TOP
\nFrom Neutrik, the powercon TRUE1 TOP is a locking male 16 A true mains connector for outdoor applications. Replace appliance couplers wherever a very rugged solution in combination with a locking device is needed. Guarantee a safe power connection with featured the breaking capacity (CBC) allowing it can be connected or disconnected under load or live.
\n
Features
\n
\n - Heavy duty sealed power connector for harsh and demanding environment
\n - Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)
\n - Uses high impact UV-resistant materials
\n - True mains connector with breaking capacity (CBC)
\n - Lockable 16 A single phase connector (USA: 20 A)
\n - Easy and reliable twist lock system
\n - Unique Neutrik cable retention
\n
\n
Specifications
\n
\n - Electrical
\n
\n - Contact resistance: ≤ 3 mΩ
\n - Dielectric strength: 4 kVdc / 2.8 kVac
\n - Insulation resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
\n - Number of electronical contacts: 2 + PE
\n - Rated current per contact: 16 A (USA: 20A)
\n - Rated voltage: 250 V ac
\n
\n
\n - Mechanical
\n
\n - Cable O.D.: 6- 12 mm
\n - Lifetime: > 5000 mating cycles
\n - Wiresize: 1-2.5 mm²
\n - Wiresize: 12 AWG
\n
\n
\n - Material
\n
\n - Contact plating: 2 µm Ag
\n - Contacts: Spring CuNi1Si0.2
\n - Insert: Polyamide (PA 6.6 30 % GR)
\n - Locking element: ZuAl4Cu1
\n - Shell: Polyamide (PA 6.6 30 % GR)
\n - Strain relief: Polyacetal (POM)
\n
\n
\n - Environmental
\n
\n - Flammability: UL 94 V-0
\n - Protection class: IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-FPX)
\n - Temperature range: -30 °C to +80 °C
