Product Description

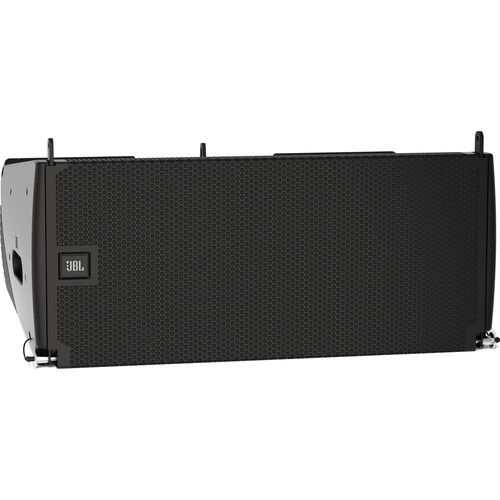

The JBL SRX910LA Dual 10" Powered Line Array Speaker is a high-performance, self-powered line array element engineered for mid- to large-scale sound reinforcement. Designed for touring professionals, rental companies, DJs, and permanent installations, the SRX910LA delivers exceptional output, clarity, and consistency with a true plug-and-play powered design.
Featuring dual 10" neodymium Differential Drive woofers and a 3" compression driver, the SRX910LA achieves powerful low-frequency performance, articulate mids, and extended high-frequency detail. JBL’s proprietary Radiation Boundary Integrator (RBI) horn technology ensures precise horizontal directivity and even coverage across the audience area.
With integrated Class-D amplification, advanced onboard DSP, and full Ethernet network control via HARMAN HControl, the SRX910LA offers unmatched flexibility, scalability, and reliability for professional audio environments. Its lightweight composite enclosure and three-point rigging system make it easy to deploy in flown arrays or ground-stacked configurations.
Features
-
Dual 10" neodymium Differential Drive woofers for high-output, controlled bass
-
3" compression driver with extended high-frequency response
-
Wide frequency response from 53 Hz to 19 kHz
-
Up to 135 dB peak SPL for demanding live sound applications
-
Integrated Class-D amplification with passive cooling
-
Advanced DSP with 24 user-adjustable filters and delay control
-
LevelMax limiting for transducer protection and consistent performance
-
Radiation Boundary Integrator (RBI) horn for superior horizontal coverage
-
Dual Neutrik etherCON Ethernet ports for networked control
-
HARMAN HControl compatibility for remote monitoring and configuration
-

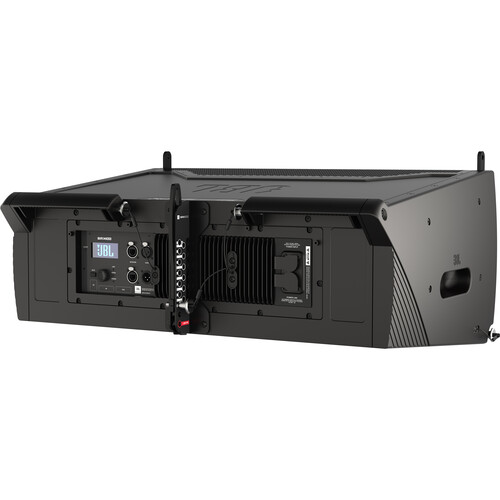

Rear-panel LCD display for fast system setup
-
Three-point rigging system for flown or ground-stacked use
-
Lightweight, durable composite enclosure
Specifications
Acoustic
-
Frequency Response: 53 Hz – 19 kHz
-
Maximum SPL: 135 dB peak
-
LF Drivers: Dual 10" neodymium Differential Drive
-
HF Driver: 3" compression driver
Amplification & DSP
-
Amplifier Type: Class-D, self-powered
-
Cooling: Passive
-
DSP: Array size compensation, throw distance correction, user-adjustable EQ
-
Limiting: JBL LevelMax
Connectivity & Control
-
Network Control: Dual Ethernet (Neutrik etherCON)
-
Control Software: HARMAN HControl
-
User Interface: Rear-panel LCD display
Cabinet & Rigging
-
Enclosure: Lightweight composite
-
Rigging: Integrated three-point rigging system
-
Deployment: Flown or ground-stacked
Power
-
Power Input: powerCON (power cable not included)
What’s Included
-
JBL SRX910LA Dual 10" Powered Line Array Speaker
-
powerCON input and thru connectors
-
Integrated rigging hardware
