Product Description

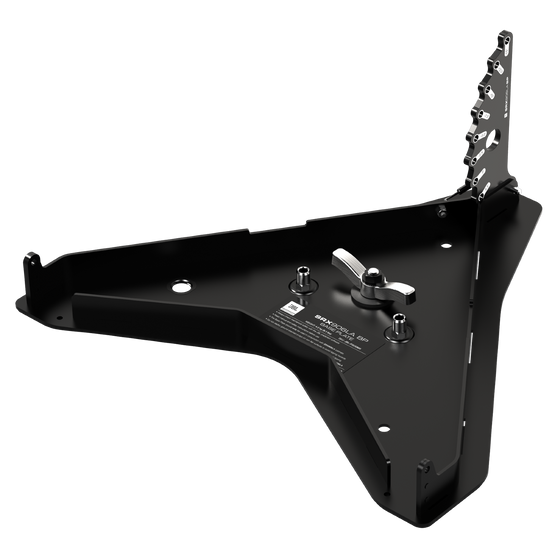

The JBL SRX906LA Base Plate is a universal adapter frame that enables SRX906LA arrays to be safely ground stacked on compatible subwoofers or structures such as stages, scaffolding, and carts. It connects via a standard M20 threaded pole mount, making it compatible with subwoofers like the SRX918S or SRX928S.
A built-in rear angle selection bar allows for precise aiming from -15° to +5°, ensuring proper coverage and alignment for your audience. The base plate also includes M10 mounting points for permanent installations when needed.
Designed with high-grade steel and a corrosion-resistant finish, it delivers durability and reliability in demanding environments. The system supports up to 6 SRX906LA cabinets (maximum load), making it ideal for scalable PA setups.
Features
-
Enables ground stacking of SRX906LA line array systems
-
Attaches directly to subwoofers via M20 threaded mount
-
Adjustable angle range: -15° to +5°
-
Supports up to 6 SRX906LA speakers (max)
-
Compatible with JBL pole mount adapter for smaller setups
-
M10 mounting holes for permanent installation options
-
Rugged steel construction with anti-corrosion coating
Specifications
-
Product Name: JBL SRX906LA BP
-
Type: Base Plate / Ground Stack Adapter
-
Material: High-grade steel
-
Finish: Black powder coat
-
Angle Range: -15° to +5°
-
Mechanical Maximum Load: Up to 6 SRX906LA cabinets
-
Dimensions:
-
Height: 2.2 in (55 mm)
-
Width: 19.3 in (490 mm)
-
Depth: 17.5 in (445 mm)
-
-
Net Weight: 9.3 lbs (4.2 kg)
-
Shipping Weight: 14 lbs (6.3 kg)
Included
-
(1) Base Plate
-
(1) M20 Thumb Screw
