Product Description

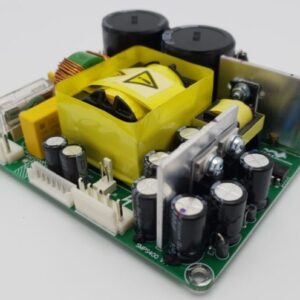

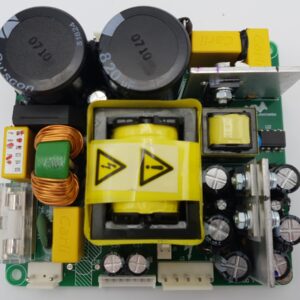

Hypex SMPS400A180 A400 Switching Power Supply Module – Power for DAS Speakers
The Hypex SMPS400A180 A400 is a high-efficiency 400W switching power supply module, specially designed for use with UcD180LP amplifier modules. This compact, lightweight power supply delivers reliable performance and is perfect for repairs or upgrades of professional powered speakers.
Compatible With:
-
DAS Speakers: Event 208A, Event 210A, M210A
-
Electro-Voice (EV): ELX-112P, ELX-115P, ELX-118P, ZXA1
-
FBT Powered Speakers
-
Other compatible active loudspeakers
Applications:
-
Single or multiple UcD amplifier setups
-
Active loudspeakers like DAS, EV, FBT, or compatible models
Key Highlights:
-
High-efficiency design for maximum performance
-
Selectable input voltage range (100–120V or 200–240V)
-
Extremely compact form factor
-
Low electromagnetic interference (EMI)
General Features:
-
Advanced over-current protection
-
Remote-controlled operation
-
Lightweight and compact (fits in 1HE with additional insulation)
-
Fixed output voltage (3 versions available)
Electrical Specifications:
-
High Line Input Voltage: 200–240V AC ±10%
-
Low Line Input Voltage: 100–120V AC ±10%
-
Output Voltage: 2×46V DC
-
Maximum Output Power: 400W @ 20Hz
-
Switching Frequency: 100kHz
Mechanical Specifications:
-
Weight: 750g
-
Dimensions: 165 × 105 × 55 mm
Package Includes:
-
Hypex SMPS400A180 Module
-
User Manual
Recommended Additional Parts:
-
Cable Set SMPS400
Recommended Amplifier Combinations:
-
UcD180 OEM
-
UcD180LP OEM
Fits DAS Models:
-
Event 208
-
Event 210
Power Supply Specs Summary:
-
Mains Voltage Input: 230V / 115V
-
Automatic Input Voltage Selection: No, selectable with jumper
-
SMPS Voltage: ±2×46V DC (A180)
-
Max Output Power: 600W (400W @ 20Hz)
-
Dimensions: 105 × 100 × 42 mm
-
Weight: 300g
