\nIntroducing the

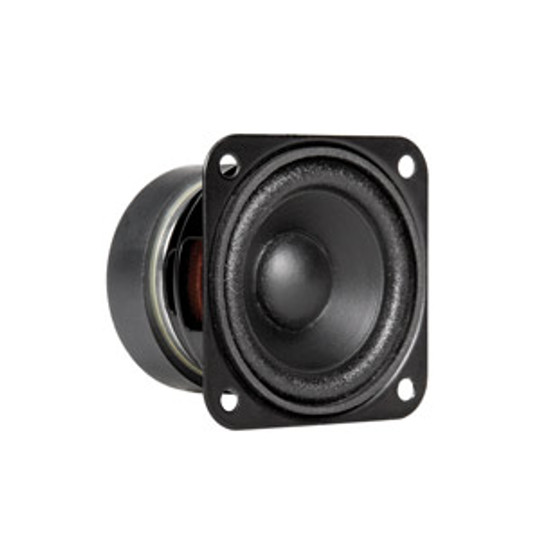

Eminence Alpha 2, a powerful full-range driver that’s perfect for tight-fitting column and line array applications. Part of the American Standard Series, the Alpha 2 is designed with precision and durability in mind, making it an excellent choice for multi-unit designs where space is at a premium.
\n
\n
Alpha 2 Full Range Driver Key Features:
\n
\n - Compact Design: Ideal for column and line array applications, with a 2" nominal basket diameter and a 0.64” copper voice coil.
\n - Efficient Heat Management: Under-spider venting and a flux source cap allow heat to escape while containing the magnetic flux, ensuring reliable performance in tightly packed setups.
\n - Powerful Performance: Rated at 30 watts program power with a wide usable frequency range of 200 Hz – 20 kHz, delivering clear and consistent sound across the spectrum.
\n - Robust Construction: Features a 2.7 oz. ferrite magnet, a pressed steel basket, and a paper/poly sandwich cone for durability and high-quality sound reproduction.
\n
\n
Technical Specifications:
\n
\n - Nominal Impedance: 8 Ω
\n - Power Rating: 30 W program power, 20 W RMS
\n - Resonance: 186 Hz
\n - Sensitivity: 83.8 dB
\n - Usable Frequency Range: 200 Hz - 20 kHz
\n - Voice Coil Diameter: 0.64", 16 mm
\n - Magnet Weight: 2.7 oz.
\n - Mounting Information:
\n
\n - Overall Diameter: 2.13", 54.1 mm
\n - Baffle Hole Diameter: 2", 50.8 mm
\n - Mounting Holes Diameter: 0.15", 3.8 mm
\n - Mounting Holes B.C.D.: 2.36", 59.9 mm
\n
\n
\n - Materials:
\n
\n - Coil Construction: Copper voice coil on a polyimide former
\n - Cone Composition: Paper/Poly sandwich cone with a poly dust cap
\n
\n
\n
\nThe
Alpha 2 Full Range Driver is your solution for compact, high-performance audio applications, delivering precise sound with exceptional reliability.
