Product Description
\n
12-inch / 3-inch - 600 wattsElite-level performance now available in passive speakers

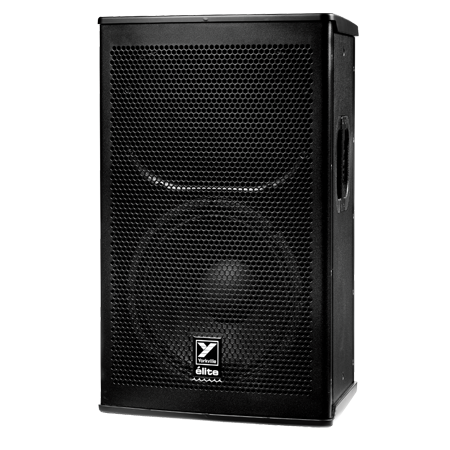

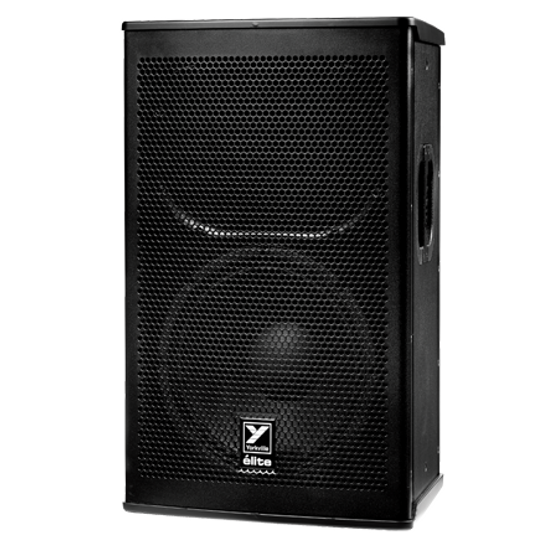

\n12-inch Passive Loudspeaker
\n
\n
\n
\n
\n
\n
\nFeatures
\n-
\n
- 12-inch Two-way Passive Loudspeaker \n
- 600 Watts (1200 Watts peak) \n
- 127dB Peak (124dB Continuous) Max SPL \n
- 55 - 18k (Hz +/- 3dB) \n
- Made In Canada \n
Specifications
\n| System Type | \nTwo Way | \n
| Active or Passive | \nPassive | \n
| Power Rating (Watts) | \n600 Watts (1200 Watts Peak / 300 Watts Continuous) | \n
| Biampable | \nNo | \n
| Nominal Impedance (Ohms) | \n8 | \n
| Sensitivity (dB @1Watt/1m) | \n97 | \n
| Max SPL (dB) | \n128dB Peak (125dB Continuous) | \n
| Frequency Response (Hz +/- 3dB) | \n55 - 18k | \n
| Crossover Frequency (Hz) | \n1900 | \n
| Driver Configuration | \n12-inch, 3-inch Diaphragm | \n
| HF Driver(s) | \n3-inch Voicecoil (Titanium Diaphragm) | \n
| HF Horn | \nABS plastic custom Waveguide | \n
| HF Dispersion (°H x °V) | \n60x40 | \n
| HF Protection | \n3xSK3 protection bulbs | \n
| LF Driver(s) | \n12-inch (3-inch voicecoil) | \n
| Inputs - 1/4" Jacks | \n2 | \n
| Inputs - Speakon 4-pin | \n2 | \n
| Bar Handles | \n2 | \n
| Flying Hardware | \n3/8-inch x 3 (2 Top, 1 Back) | \n
| Pole Mount Adapter (1 3/8"-3.5cm) | \nYes | \n
| Enclosure Materials | \n15mm (5/8inch) 11-ply Russian Birch | \n
| Grille | \nPerforated Metal | \n
| Covering / Finish | \nBlack Ultrathane Paint | \n
| Dimensions (DWH xbackW, inches) | \n14 x 16 x 25.5 x 9.5 | \n
| Dimensions (DWH xbackW, cm) | \n35.5 x 40.5 x 64.8 x 24 | \n
| Weight (lbs/kg) | \n51 / 23 | \n
