Product Description
The DAS INTEGRAL-M26X is a professional-grade 1U rack-mount digital signal processor engineered to deliver precise and flexible audio control for both live sound and fixed installations. With advanced routing options, powerful DSP tools, and seamless remote control integration, the INTEGRAL-M26X is ideal for venues such as retail stores, bars, fitness centers, hotels, and educational facilities.
Featuring a 2-input x 6-output configuration, full 24-bit/48 kHz audio conversion, and a comprehensive suite of processing tools, this DSP provides the reliability and precision expected in high-performance audio environments. Preloaded with factory presets for all DAS Audio loudspeakers, the INTEGRAL-M26X allows for fast setup, optimized performance, and exceptional system protection.
From live event control to permanent installations requiring dependable audio management, the INTEGRAL-M26X offers outstanding versatility, intuitive operation, and the power needed for professional sound reinforcement.
FEATURES
-
2 × 6 DSP Configuration — two balanced XLR inputs and six balanced XLR outputs
-
Full Remote Control via ALMA™ software over IP or external OSC controllers
-

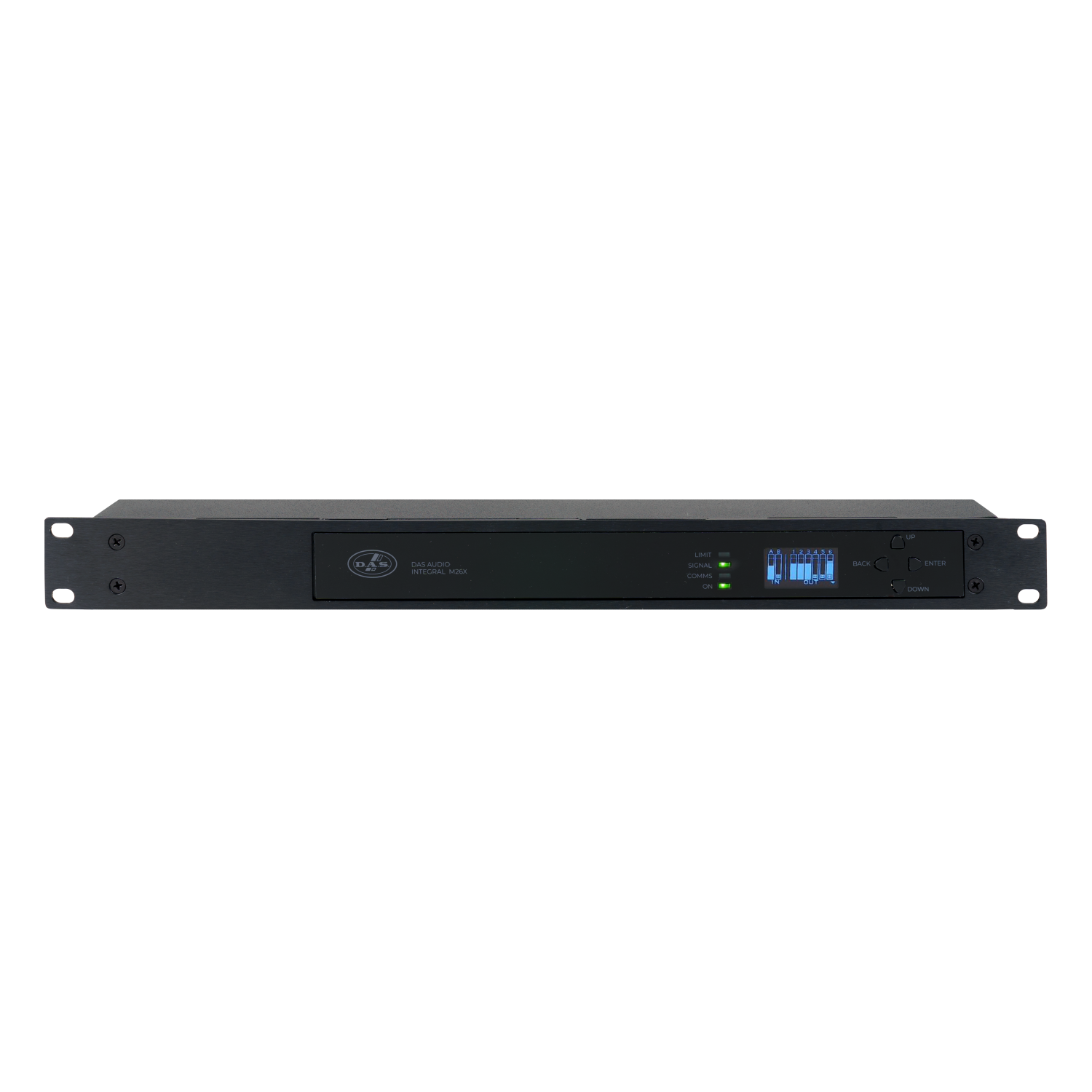

1.54" OLED Display with intuitive navigation buttons for front-panel control
-
Advanced DSP Processing including gain, delay, routing, EQ, filtering, and limiters
-
Large Preset Memory — 100+ global presets and 200+ output channel presets
-
Factory Presets for all DAS Audio loudspeakers for fast, optimized setup
-
GPIO Control — 8 configurable pins for external system integration
-
Professional-grade AD/DA Conversion with 118 dBA dynamic range
SPECIFICATIONS
Audio
-
Frequency Response: 20 Hz – 30 kHz (+0 / –0.5 dB)
-
Max Input Level: +22 dBu
-
Max Output Level: +22 dBu
-
Converters: 24-bit @ 48 kHz, 118 dBA dynamic range
-
Sampling Rate: 48 kHz
-
Latency: 1 ms
DSP Processing
-
EQ Types: Bell, Lo/Hi-Shelving, Hos
-
Crossover Types: Linkwitz-Riley, Butterworth, Bessel
-
Filters: HP/LP up to 48 dB/oct
-
Limiters: RMS
Connectivity & Control
-

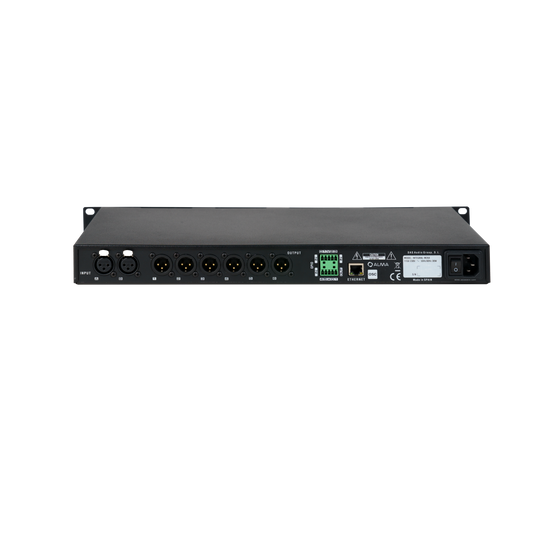

Inputs: 2 × XLR (balanced)
-
Outputs: 6 × XLR (balanced)
-
Control: ALMA™ software via IP, OSC control, GPIO (8 configurable pins)
-
Display: 1.54" OLED
-
Cooling: Side-right-to-left airflow
General
-
Operating Voltage: 90–250 VAC
-
Dimensions: 1.7" H × 19" W × 8.3" D
(4.3 × 48.3 × 21.1 cm) -
Weight: 5.5 lbs (2.5 kg)
