Product Description

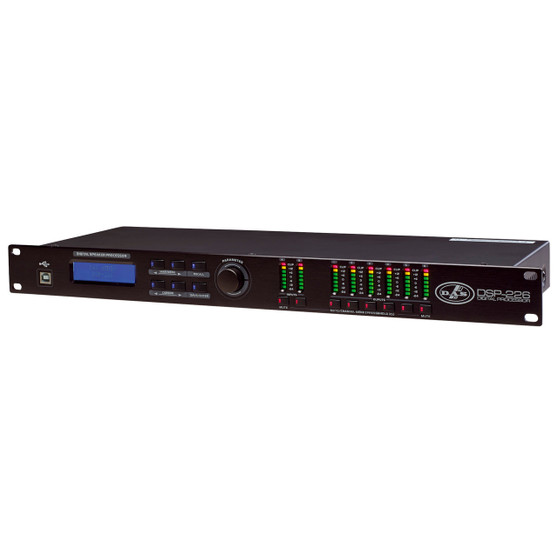

The DAS Audio DSP-226 Speaker Processor is a powerful and flexible digital loudspeaker management system designed for professional audio applications including PA systems, permanent installations, zoning, and stage monitor setups. Using advanced digital signal processing, the DSP-226 provides precise control over crossovers, equalization, limiting, and delay, ensuring optimal system performance in any environment.
Equipped with two balanced analog inputs and six balanced XLR outputs, the DSP-226 allows for complete system configuration and routing flexibility. A wide selection of crossover filter types and slopes makes it easy to tailor system tuning to specific loudspeakers and venue requirements. With up to 1000 ms of delay, the processor is ideal for time alignment in complex installations and distributed audio systems.
Connectivity includes RS485 in/out for system integration and a front-panel USB port for easy configuration and control. Its universal power supply ensures reliable operation worldwide, making the DSP-226 suitable for touring, fixed installations, and professional rental environments.
Features
-
Digital loudspeaker management processor for professional audio systems
-
2 balanced analog inputs and 6 balanced XLR outputs
-
Fully configurable crossover, EQ, limiter, and delay processing
-
Multiple crossover filter types and slopes for precise system tuning
-
Up to 1000 ms delay for speaker alignment and zoning applications
-
RS485 in/out for system integration and remote control
-
Front-panel USB port for easy setup and configuration
-
Universal power supply for global operation
Specifications
Inputs: 2 x Balanced Analog (XLR Female)
Outputs: 6 x Balanced (XLR)
CMRR: >65 dB (30 Hz – 20 kHz)
THD: 0.003% (1 kHz, 0 dBu)
Sampling Rate: 48 kHz
Crossover Filters:
-
6, 12, 18, 24, 48 dB/oct
-
Bessel, Butterworth, Linkwitz-Riley
Maximum Delay: 1000 ms
Maximum Output Level: 19 dBu
Output Gain Range: +15 dB to -40 dB (1 dB steps)
Interfaces:
-
RS485 In/Out
-
USB (front panel)
Power Supply: Universal
Dimensions (H x W x D):
-
1.8" x 18.9" x 6.4"
-
45.7 x 480 x 162 mm
Weight:
-
4.4 lbs
-
2.0 kg
