DAS Audio Vantec 20A Line Array Speaker
\nThe DAS Audio Vantec 20A Line Array Speaker is an active curved source line array that incorporates an arsenal of high-tech solutions designed to provide the versatility needed by today's sound professionals. Whether it be stacked on the Vantec-118A companion subwoofer, flown in a compact array, or used alone on a speaker stand, the Vantec -20A can be used effectively in an incredible number of applications that include corporate A/V, mid-size sound reinforcement, and permanent installation.
\n

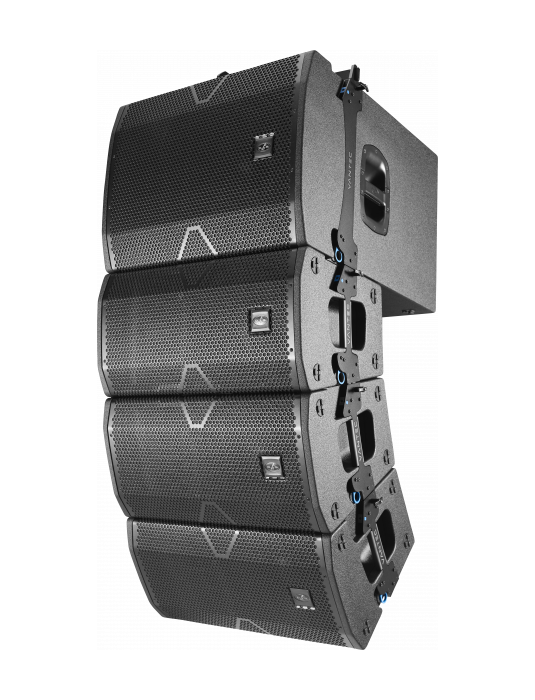

\nStack Up to 5 Units
\nDesigned for use in arrays of up to 5 units, the Vantec-20A is ideal for applications where the power and long-throw characteristics of large line arrays are not needed. Individual units can be mounted on tripods with precise aiming possible thanks to the variable angle pole mount which allows for 13.5-degree up or down tilt.
\n

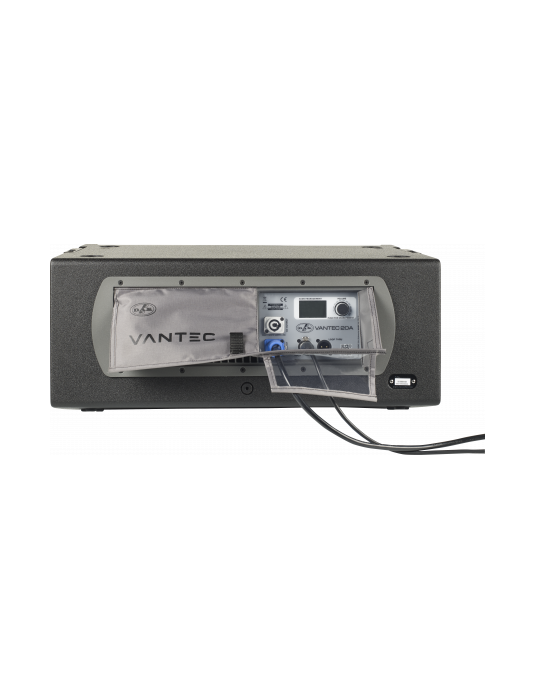

\nDAS control Interface
\nThe DAS control interface allows users to easily configure the DAS Audio Vantec-20A Line Array Speaker systems for use individually or in combination with other units. Selectable high pass filter presets facilitate alignment with the Vantec-18A and Vantec-118A active bass systems without external processing. Throw compensation settings and array size selection can all be handled simply via the DAS control interface. When the Vantec-20A is used individually, the DAS link APP can be used to stream music in high-definition stereo and remotely control the systems functions.
\n
\nBuilt for Power
\nThe enclosure is manufactured using Baltic birch plywood and finished with the DAS ISO-flex coating. Power is supplied by a cutting-edge 1500-Watt peak Class D amplifier in a bi-amplified configuration driving a single DAS 12F4C speaker and twin M-60 compression drivers.
\n
\nFeatures:
\n
\n - Active Curved Source Line Array
\n - Class-D Bi-amplified 1500-Watt peak
\n - FIR filters for linear phase response
\n - 1 x DAS 12F4C + 2 x M-60 compression drivers
\n - Compact design with high output capabilities
\n - DAScontrol with presets and configurations
\n - DASlink wireless streaming and remote control
\n - +/- 13.5-degree variable tilt pole mount
\n - IP43 rating
\n
\n
\n
\n
\n| Performance |
\n
\n
\n| Frequency Range (-10 dB) |
\n63 Hz – 20 kHz |
\n
\n
\n| Horizontal Coverage (-6 dB) |
\n90º |
\n
\n
\n| Vertical Coverage |
\n15º |
\n
\n
\n| Maximum Peak SPL at 1 m |
\n135 dB |
\n
\n
\n
\n
\n
\n
\n| Electronics and Connectors |
\n
\n
\n| Nominal Amplifier Power (continuous) |
\n750 W |
\n
\n
\n| Nominal Amplifier Power (peak) |
\n1500 W |
\n
\n
\n| Input Impeadance |
\n20 kohms |
\n
\n
\n| Input Sensitivity |
\nLine: 3 V (+12 dBu) |
\n
\n
\n| Audio Signal Input Connector |
\n2 x Female XLR |
\n
\n
\n| Audio Signal Loop Thru Connector |
\n1 x Male XLR |
\n
\n
\n| Control |
\nDASlink™
\nDAScontrol™ |
\n
\n
\n| AC Output Connector |
\npowerCON NAC3FCB |
\n
\n
\n| Current Draw 230 V / 115 V |
\n1.5 A/3.0 A |
\n
\n
\n
\n
\n
\n
\n| Enclosure |
\n
\n
\n| Enclosure Construction |
\nBirch Plywood |
\n
\n
\n| Enclosure Geometry |
\nTrapezoidal |
\n
\n
\n| Rigging |
\nCaptive Rigging System |
\n
\n
\n| Finish |
\nISO-flex Paint |
\n
\n
\n| Color |
\nBlack |
\n
\n
\n| Dimensions ( H x W x D ) |
\n335 x 625 x 440 mm
\n13,2 x 24,6 x 17,3 in |
\n
\n
\n| Net Weight |
\n28,5 kg ( 62,8 lb ) |
\n
\n
\n| Components |
\n
\n
\n| LF Driver |
\n12F4C |
\n
\n
\n| HF Driver |
\nM-60 |
\n
\n
\n| Horn/Waveguide |
\nBC-915 |
\n
\n
\n| Shipping |
\n
\n
\n| Carton Dimensions ( H x W x D ) |
\n490 x 730 x 490 mm
\n19,3 x 28,7 x 19,3 in |
\n
\n
\n| Shipping Weight |
\n30,5 kg ( 67,2 lb ) |
\n
\n
\n
\n
\n
\nUPC: 8436542216357
