Product Description

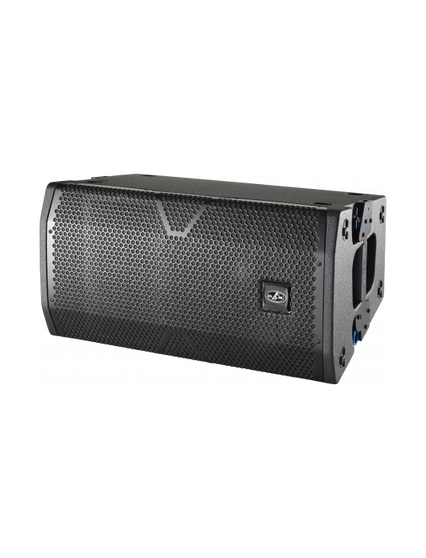

The DAS Audio Vantec-20A is a compact, high-performance active curved source line array speaker engineered for today’s professional sound applications. Designed for versatility, it can be flown in compact arrays, stacked on the Vantec-118A subwoofer, or used individually on a speaker stand.
Ideal for corporate AV, houses of worship, touring productions, mid-size live sound reinforcement, and permanent installations, the Vantec-20A delivers professional line array performance in a manageable, portable format.
Stackable Line Array Design
The Vantec-20A is designed to be used in arrays of up to five units, providing controlled vertical dispersion and long-throw performance when needed — without the size and complexity of large touring line arrays.

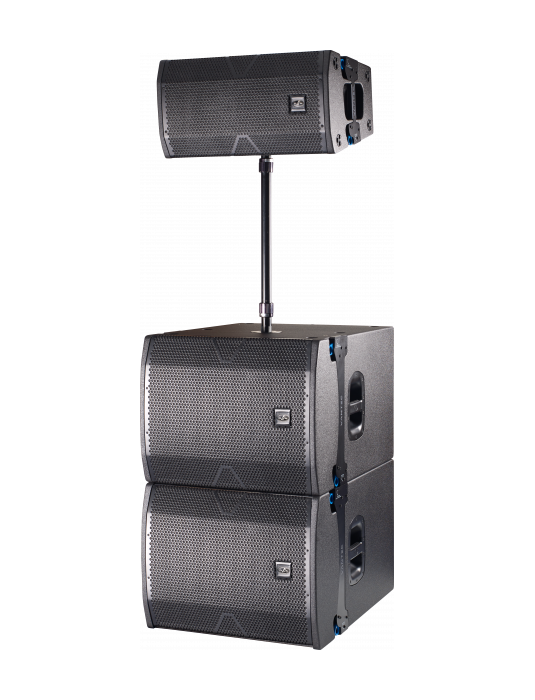

For standalone use, the integrated pole mount features ±13.5° adjustable tilt, allowing precise aiming for optimal audience coverage.

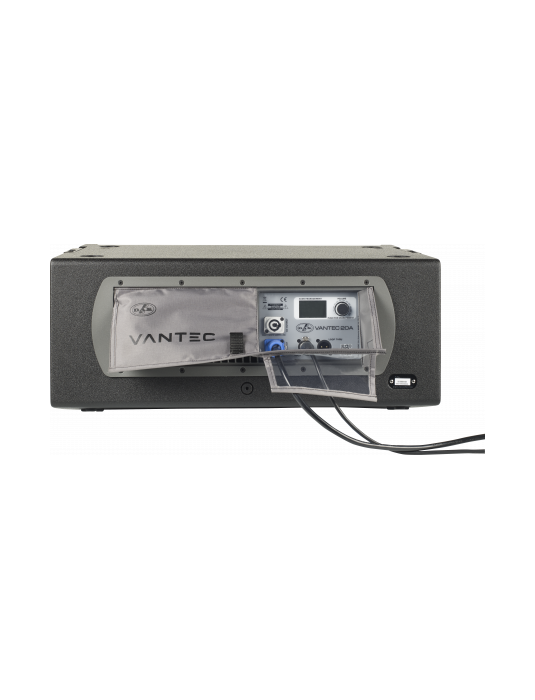

Advanced DAS Control & Connectivity
The integrated DAScontrol™ interface allows easy system configuration when used alone or in combination with other Vantec units.
-
Selectable high-pass filter presets for alignment with Vantec-18A and Vantec-118A subwoofers
-
Adjustable array size and throw compensation settings
-
No external processing required
When used independently, DASlink™ wireless connectivity enables:
-
High-definition stereo music streaming
-
Remote system control via mobile device
Power & Performance
The enclosure houses a bi-amplified Class D 1500W peak amplifier, delivering clarity, efficiency, and high output.
Speaker Components
-
1 × DAS 12F4C low-frequency driver
-
2 × M-60 compression drivers
-
BC-915 waveguide
Performance Specifications
-
Frequency Range (-10 dB): 63 Hz – 20 kHz
-
Horizontal Coverage: 90°
-
Vertical Coverage: 15°
-
Maximum Peak SPL (1m): 135 dB
Amplifier & Electronics
-
Continuous Power: 750 W
-
Peak Power: 1500 W
-
Input Sensitivity: Line 3V (+12 dBu)
-
Input Impedance: 20 kΩ
-
Inputs: 2 × Female XLR
-
Loop Thru: 1 × Male XLR
-
AC Connector: powerCON NAC3FCB
-
Current Draw:
-
230V: 1.5A
-
115V: 3.0A
-
Enclosure & Build Quality
-
Construction: Baltic Birch Plywood
-
Finish: Durable ISO-flex coating
-
Geometry: Trapezoidal
-
Rigging: Captive rigging system
-
IP Rating: IP43
-
Color: Black
Dimensions
-
13.2 × 24.6 × 17.3 in
(335 × 625 × 440 mm)
Weight
-
Net Weight: 62.8 lbs (28.5 kg)
-
Shipping Weight: 67.2 lbs (30.5 kg)
Ideal Applications
-
Corporate AV systems
-
Houses of worship
-
Touring sound systems
-
Rental companies
-
Mid-size concerts
-
Permanent installations
