Product Description

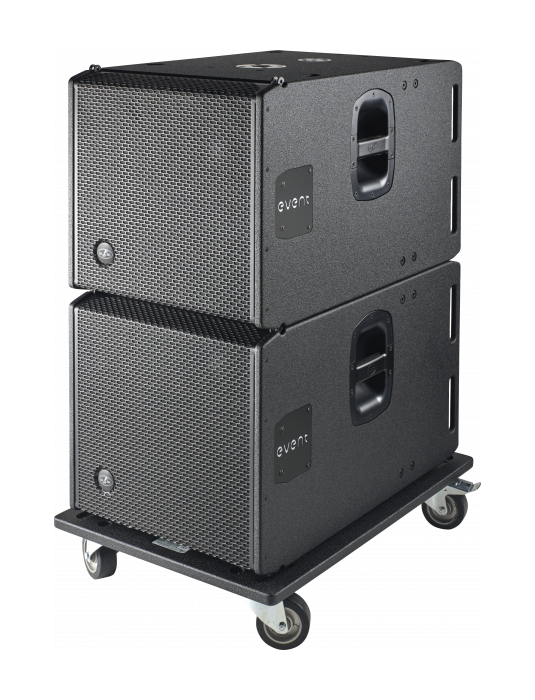

DAS Audio EVENT-115A Powered Subwoofer
\n \n \n
\n
\nThe EVENT-115A is a compact powered subwoofer system which uses a front-loaded 15” low frequency transducer developed by DAS. Designed as the companion subwoofer for the EVENT-26A, they share a compatible rigging system which allows the EVENT-26A to be flown from or stacked above the EVENT-115A.
\n
\n
\n
\n
\n
\nThe 15FW4 15″ loudspeaker used in the EVENT-115A has been engineered by DAS to provide outstanding performance and reliability. The 15FW4 speaker design has been optimized using Finite Element Analysis (FEA) and incorporates an extended 3″ voice coil for high-efficiency and long excursion offering a power handling capacity of 1200 Wprogram. Efficient cooling is assured thanks to the 15FW4´s vented pole piece and abundant apertures in the speaker´s back plate keeping power compression to a minimum while providing high acoustic output over extended periods.
\n
\n
\n
\n
\n
\nDriving the DAS 15FW4 loudspeaker is a cutting-edge 1200 Wpeak Class D amplifier. On the rear panel, quality Neutrik® XLR input connectors and stereo “loop thru” output connections are available to provide signal for the EVENT-26A systems. Thanks to the digital presets accessible by way of the DAScontrol™ interface on the rear of the cabinet, set-up of a complete systems is extremely easy.
\n
\n
\n

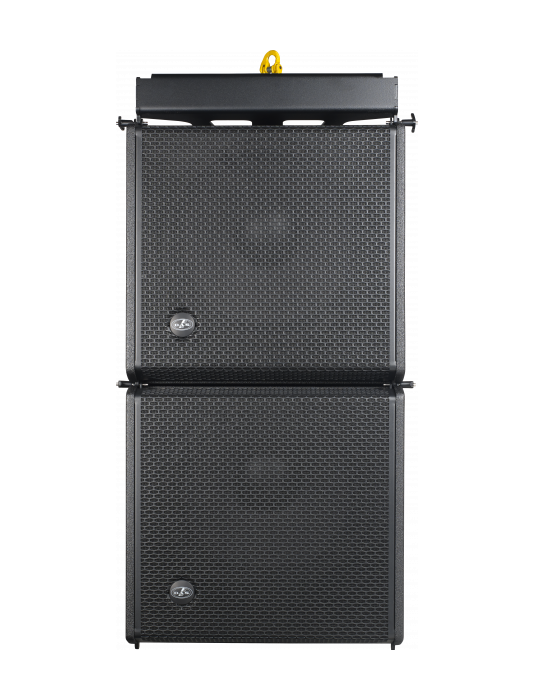

\nThe EVENT-115A cabinet is constructed from Birch plywood using a robust enclosure design and finished with the DAS ISO-flex protective coating for extended durability. The rigging hardware is compatible with the EVENT-26A allowing it to be flown directly below or stacked above the subwoofer unit. A top located pole mount socket is available allowing the EVENT-26A to be used in a combo configuration.
\nDAS Audio EVENT-115A Powered Subwoofer Features
\n
\n
\n
\nActive front-loaded subwoofer system
\n1 x 15″ DAS 15FW4 loudspeaker
\nHigh-efficiency Class D amplifier with SMPS
\nDual voltage mains for use anywhere in the world
\nEasy system configuration thanks to DAScontrolTM
\nHigh-end 24-bit DSP with LCD screen
\nEVENT-26A compatible rigging hardware
\n
\nTechnical Data
\n \n| Performance | \n|
| Frequency Range (-10 dB) | \n40 Hz – 125 Hz | \n
| Maximum Peak SPL at 1 m | \n131 dB | \n
| Electronics and Connectors | \n|
| Nominal Amplifier Power (continuous) | \n600 W | \n
| Nominal Amplifier Power (peak) | \n1200 W | \n
| Input Type | \nBalanced | \n
| Input Impeadance | \n20 kohms | \n
| Input Sensitivity | \n1.95 V (+8 dBu) | \n
| Audio Signal Input Connector | \n2 x Female XLR | \n
| Audio Signal Loop Thru Connector | \n2 x Male XLR | \n
| Control | \nDAScontrol™ | \n
| AC Output Connector | \npowerCON NAC3MPB | \n
| Current Draw 230 V / 115 V | \n1.4 A/2.8 A | \n
| Enclosure | \n|
| Enclosure Construction | \nBirch Plywood | \n
| Enclosure Geometry | \nRectangular | \n
| Rigging | \nCaptive Rigging System | \n
| Finish | \nISO-flex Paint | \n
| Color | \nBlack | \n
| Dimensions ( H x W x D ) | \n480 x 485 x 765 mm \n18,9 x 19,1 x 30,3 in | \n
| Net Weight | \n37,0 kg ( 81,5 lb ) | \n
| Components | \n|
| LF Driver | \n15FW4 | \n
| Shipping | \n|
| Carton Dimensions ( H x W x D ) | \n530 x 550 x 860 mm \n20,9 x 21,7 x 33,9 in | \n
| Shipping Weight | \n40,5 kg ( 89,1 lb ) | \n
