Product Description
\n
\n

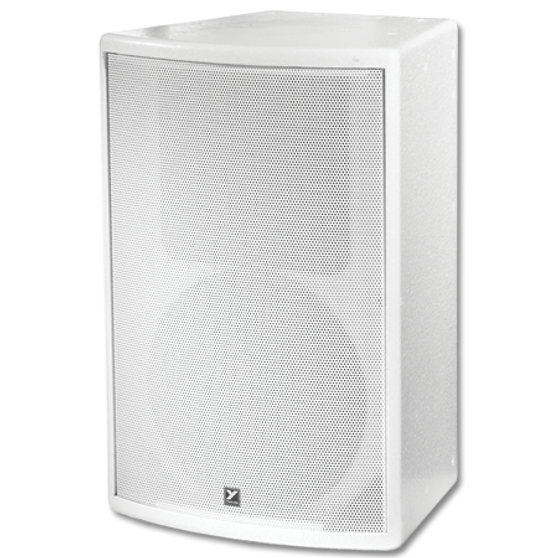

\n400w, 12-inch / 1-inchThe new Canadian made Coliseum C12W installation loudspeaker uses a solid birch plywood cabinet construction, all metal grill and rotatable ABS 80° x 50° horn. Ample integrated flypoints for firm attachment to custom designed Yorkville flyware ensure cost effective rigging in single cabinet or arrays.
\n
\n
\n
\n
\n
\n
\nFeatures
\n-
\n
- 400 Watts / 8 ohms \n
- 12-inch Woofer / 1-inch Horn Driver \n
- 80° x 50° Rotatable Horn \n
- Optional Versatile FH2W Flying Hardware Available \n
- Solid Birch Cabinet Construction \n
- Extensive Internal Metal Bracing for Added Security and Long Term Reliability \n
- All Metal Grille \n
- Speakon™ & Terminal Strip Input \n
- Made in Canada \n
Specifications
\n| System Type | \nTwo Way | \n
| Active or Passive | \nPassive | \n
| Power Rating (Watts) | \n400 | \n
| Biampable | \nNo | \n
| Nominal Impedance (Ohms) | \n8 | \n
| Sensitivity (dB @1Watt/1m) | \n98 | \n
| Max SPL (dB) | \n124 | \n
| Frequency Response (Hz +/- 3dB) | \n55 - 20k | \n
| Crossover Frequency (Hz) | \n1100 | \n
| Driver Configuration | \n12 inch / 1 inch | \n
| HF Driver(s) | \n1 inch | \n
| HF Horn | \nRotatable ABS Waveguide | \n
| HF Dispersion (°H x °V) | \n80 x 50 Rotatable | \n
| HF Protection | \nCTL | \n
| Inputs - Speakon 4-pin | \n2 | \n
| Inputs - Screw Terminal | \n1 Pair | \n
| Flying Hardware | \n1/4 inch | \n
| Optional Flying Hardware | \nFH2W Flyware bracket is available | \n
| Pole Mount Adapter (1 3/8"-3.5cm) | \nNo | \n
| Enclosure Materials | \n15mm (5/8inch) 11-ply Russian birch | \n
| Grille | \nPerforated Metal | \n
| Covering / Finish | \nTwo Part White Epoxy | \n
| Other Details | \nHas rear-mount rigging points for Omnimount 60.0WA Bracket | \n
| Dimensions (DWH xbackW, inches) | \n14.3 x 16.2 x 24.1 x 11.1 | \n
| Dimensions (DWH xbackW, cm) | \n36.3 x 41.1 x 61.2 x 28.2 | \n
| Weight (lbs/kg) | \n54 / 24.6 | \n
