Product Description

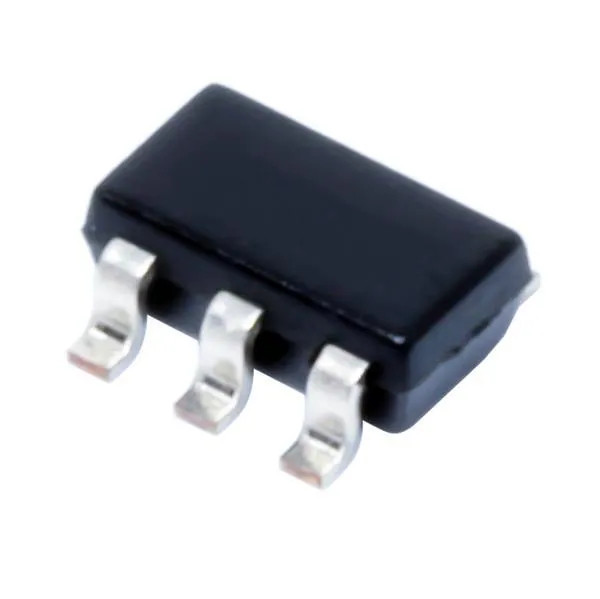

The SN74LVC1G17DBV Single Schmitt-Trigger Buffer is a high-speed, low-power non-inverting buffer and line driver IC designed for signal conditioning and digital logic applications. Built on LVC logic technology, this device features a Schmitt-trigger input, providing improved noise immunity and clean signal transitions for slow or noisy input signals.
With a wide operating voltage range from 1.65V to 5.5V, the SN74LVC1G17DBV is suitable for both low-voltage and standard logic systems. Its compact SOT-23-5 package makes it ideal for space-constrained PCB designs, while fast propagation delay ensures reliable high-speed performance.
This device is commonly used in signal buffering, waveform shaping, pulse generation, and interface applications, making it an essential component for modern digital electronics.
Features
- Single-channel non-inverting buffer
- Integrated Schmitt-trigger input for noise immunity
- Wide operating voltage range: 1.65V to 5.5V
- High output drive capability: ±32 mA
- Fast propagation delay: as low as 5 ns
- Ultra-low quiescent current: 500 nA
- Compact SOT-23-5 package for space-saving designs
- Suitable for signal conditioning and logic interfacing
- Low power consumption for energy-efficient applications
Specifications
Electrical Characteristics
- Logic Family: LVC
- Logic Type: Schmitt-Trigger Buffer / Line Driver
- Polarity: Non-Inverting
- Number of Channels: 1
- Input Lines: 1
- Output Lines: 1
Voltage & Current
- Supply Voltage: 1.65V – 5.5V
- High-Level Output Current: -32 mA
- Low-Level Output Current: 32 mA
- Operating Supply Current: 10 µA
- Quiescent Current: 500 nA
Performance
- Propagation Delay:
- 5.5 ns @ 3.3V
- 5 ns @ 5V
Thermal & Physical
- Operating Temperature: -40°C to +125°C
- Mounting Style: SMD/SMT
- Package / Case: SOT-23-5
General
- Series: SN74LVC1G17
- Product Type: Buffer / Line Driver IC
