Product Description

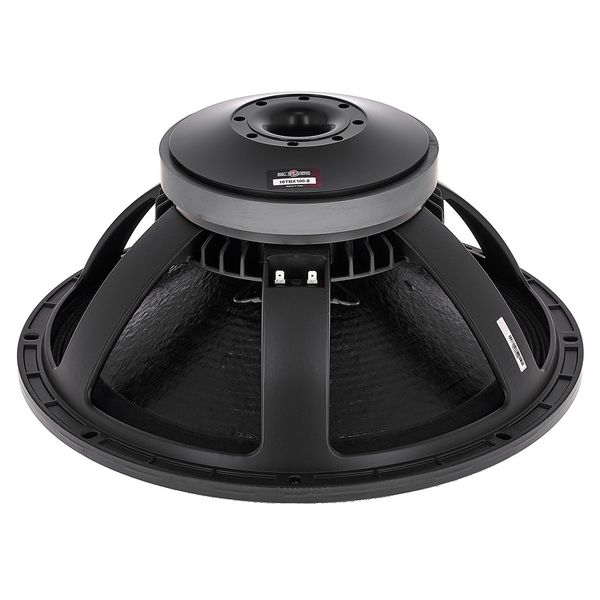

The B&C 18TBX100 is the most powerful 18-inch driver in B&C’s ceramic magnet product range, setting the benchmark for state-of-the-art low frequency reproduction. With an impressive 1,200 watts AES power handling, extremely low distortion, and outstanding linearity, the 18TBX100 is engineered for professional touring, installed sound, and high-output subwoofer systems.
Designed to deliver deep, clean, and authoritative bass, the 18TBX100 features a 4-inch copper voice coil wound inside-outside on a fiberglass former for superior thermal handling and long-term reliability. The dual demodulation rings significantly reduce distortion and improve transient response, while the double spider suspension system ensures excellent cone control even at extreme excursion levels.
This driver is ideal for demanding applications where power, clarity, and durability are critical, making it a top choice for large-format PA systems, touring subwoofers, and high-performance bass enclosures.
Features
-
18" professional low-frequency driver
-
1,200 W AES continuous power handling
-
Dual demodulation rings for reduced distortion
-
4" copper voice coil on fiberglass former for high thermal stability
-
Double spider suspension for improved linearity and control
-
Extremely low distortion for clean, powerful bass reproduction
-
Designed for high-output professional subwoofer applications
Specifications
-
Nominal Diameter: 18 in (457 mm)
-
Power Rating:
-
AES: 1200 W
-
Peak: 2400 W
-
-
Impedance: 8 Ohms
-
Sensitivity: 97 dB (1 W / 1 m)
-
Frequency Range: 35 Hz – 1500 Hz
-
Voice Coil Diameter: 4 in (100 mm)
-
Magnet Type: Ceramic
-
Net Weight: 13.0 kg (28.7 lb)
Applications
-
Professional subwoofer systems
-
Touring sound reinforcement
-
High-power PA installations
-
Replacement driver for compatible 18" enclosures
-
Live sound, clubs, and large venues
