Product Description
The AUVI Ultra 14RX Beam 295W is a next-generation moving head beam fixture powered by a 295W 14R MSD Discharge Lamp (rated up to 2,200 hours). This high-output light delivers a powerful, sharp beam with an advanced optical lens system, perfect for professional stage, club, or event use.
The Ultra 14RX Beam offers a stunning range of visual effects, including dual prism wheels, six rotating prisms, 3D prism effects, 14 dichroic colors, and 13 static gobos (including colorful glass gobos). Its motorized focus, frost filter, and smooth 0–100% dimming give you full creative control over your lighting environment.
With DMX512 and RDM control compatibility, 18-channel operation, and a color LCD touchscreen display, the AUVI Ultra 14RX delivers flexibility and performance for any lighting setup. Built for touring and professional use, this fixture includes a dual case for safe transport and storage.
Features
-
295W Phoenix Platinum 14R LL MSD Discharge Lamp (2,200 hr. lifespan)
-
8000K color temperature for brilliant white light
-
Motorized Focus with 16-bit fine control
-
2° narrow beam angle for precise projection
-
Frost filter for wash effect conversion
-
High-quality optical glass lens
-
Dual rotating prisms: 6-facet linear + 24-facet circular
-
0–100% smooth dimming with multiple strobe speeds
-
14 dichroic colors + white (includes CTO, CTB, and UV filters)
-
13 static gobos + open (8 fixed + 5 glass colorful gobos)
-
Indexable color wheel for split color effects
-
Prism rotation and shake effects
-
18-channel DMX mode + RDM support
-
Color LCD touchscreen display
-
Fan cooled for reliable performance
-
IP65 power locking In/Out connectors for daisy chaining
Specifications
-
Pan Movement: 540° + 16-bit fine pan
-
Tilt Movement: 270° + 16-bit fine tilt
-
Control Modes: DMX512, RDM
-
DMX Channels: 18
-
Power Consumption: 400W @ 120V / 371W @ 230V
-
Voltage: 100–240V AC, 50/60Hz
-
Connections: 3-pin DMX In/Out, IP65 power locking In/Out
-
Dimensions: 25.5” L × 19.5” W × 30” H (63 × 48.26 × 76.2 cm)
-
Weight: 124 lbs (56.24 kg)
Included Items
-

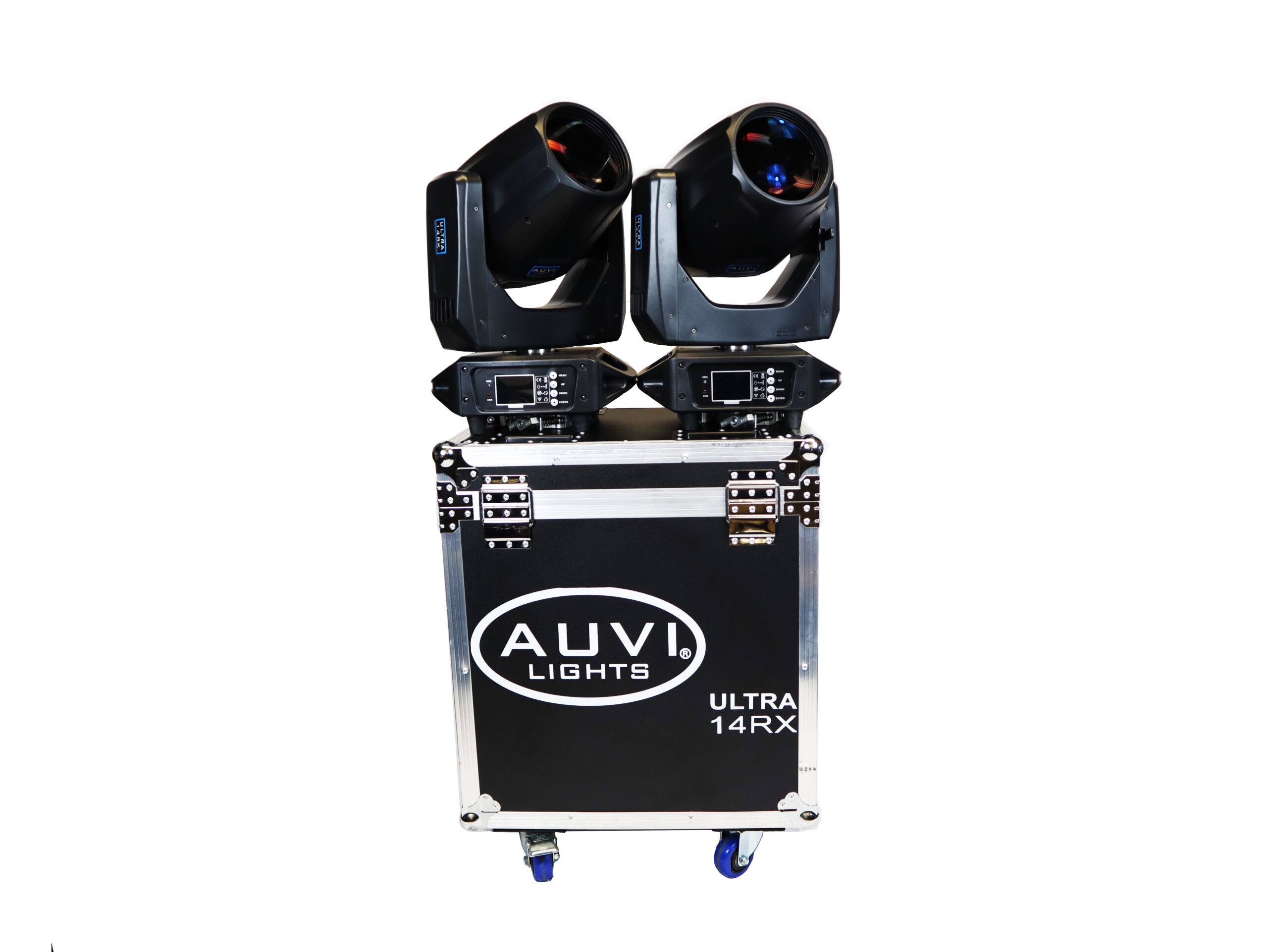

(2) AUVI Ultra 14RX Beam fixtures
-
(1) Dual road case
-
Power and DMX cables
-
Folding clamps
