Product Description
AUVI Ultra 14RX Beam 295W

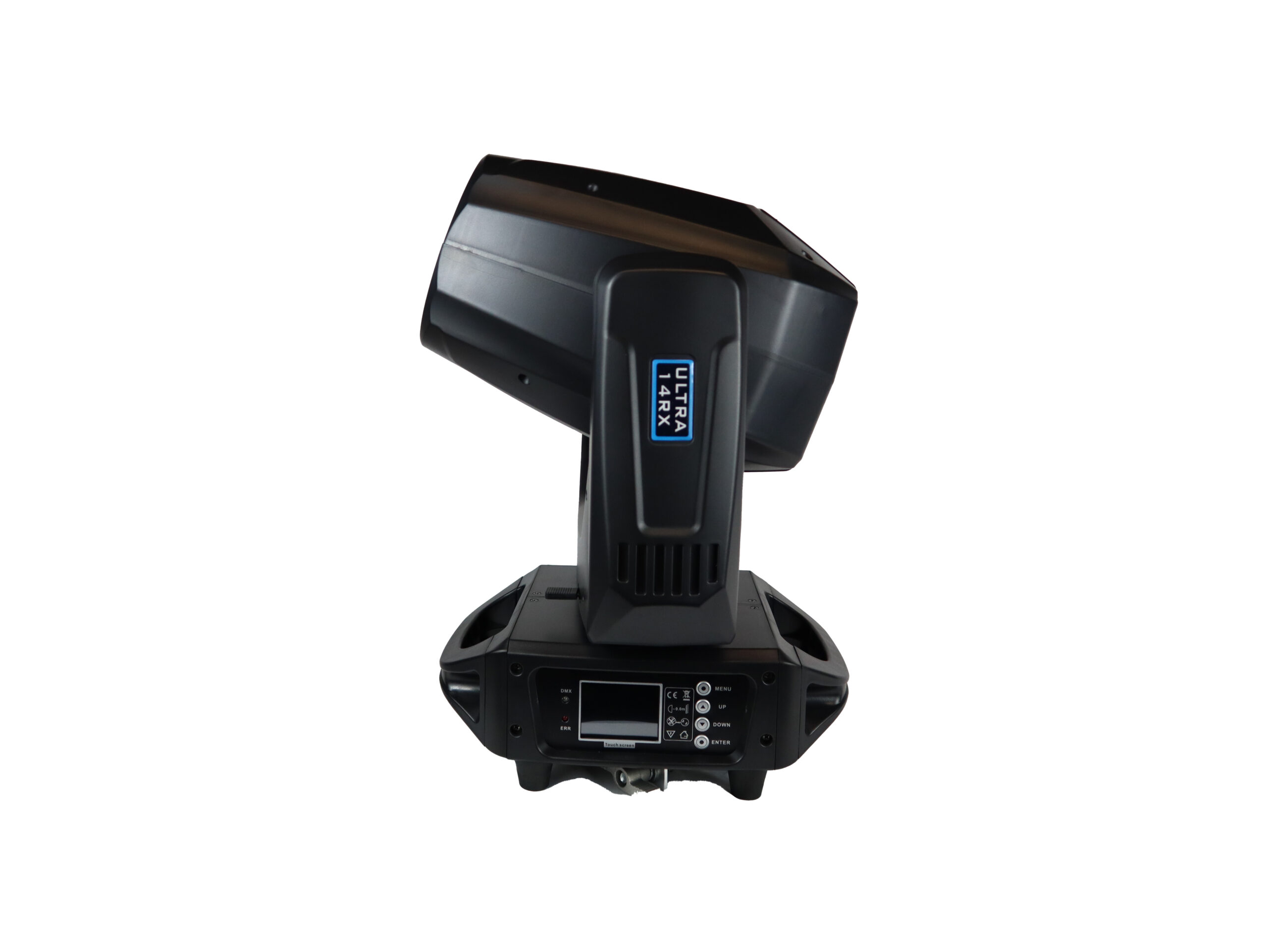

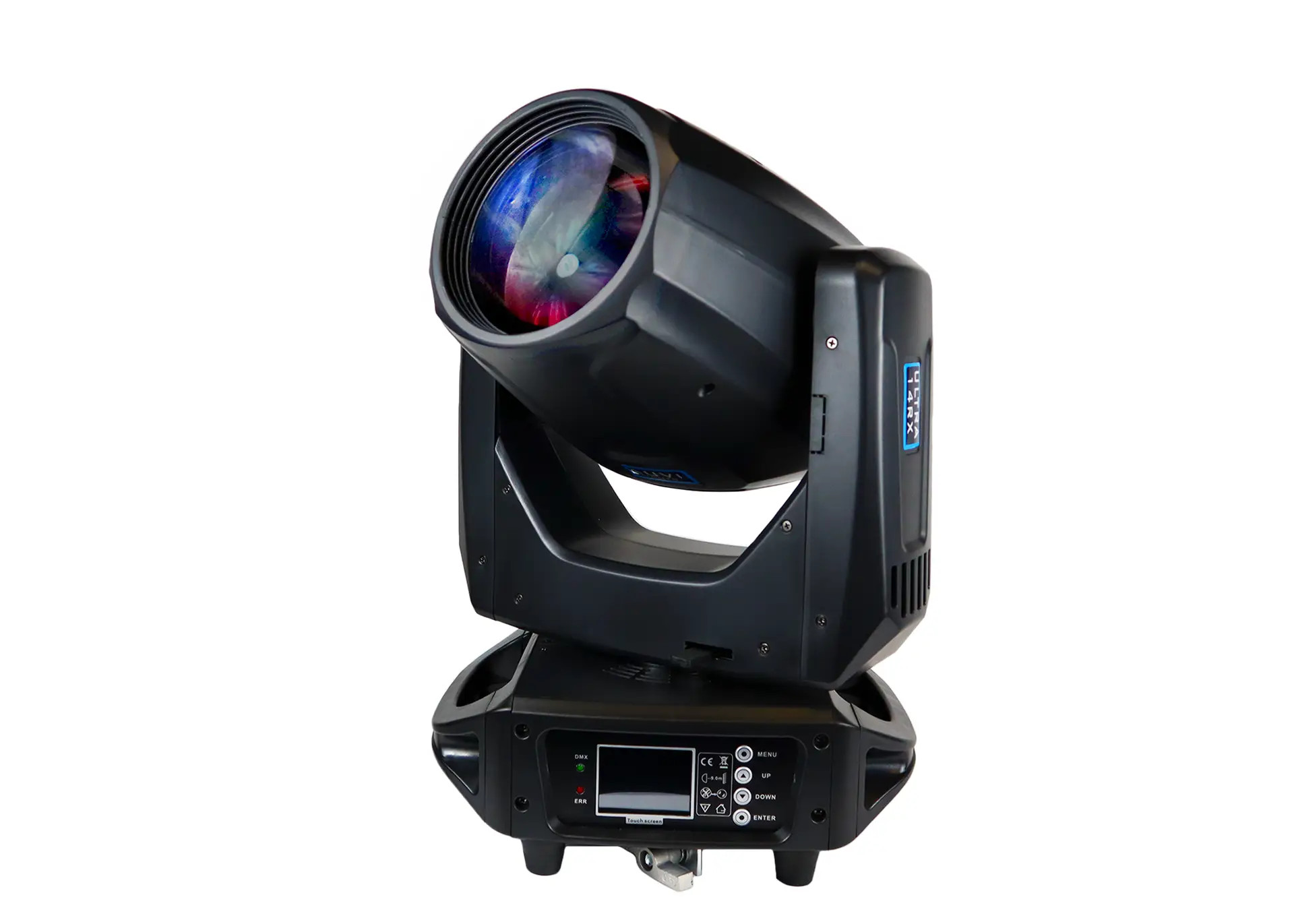

\n \nThe AUVI Ultra 14RX is high powered beam moving head As a result, powered by the brilliant 295W Phoenix 14R LL MSD Discharge Lamp (2,200 hr.). The AUVI Ultra 14RX comes with 14 colors (13 colors + Open) , 13 GOBOs + open (8 Fixed Gobos + 5 Glass Colorful Gobos) with GOBO indexing, Rainbow effect filter and a frost filter for wash effects. , the Ultra 14RX is fitted with 6 rotating prism, Dynamic 3D Prims, 15 kinds of combined prims effects.
\n
\nThe Ultra 14RX offers DMX mode (18 channels), Automatic, sound mode and RDM control options. It has 3-pin DMX In/Out connections and IP65 power locking In/Out connection to daisy chain the power from one fixture to the next. It has a color display with a Touch color screen and Folding Clamps installed in the light.
\n
\n
\n
\nLight Source:
\n
\n
\n• 295W Phoenix Platinum 14R LL MSD Discharge Lamp (2,200 hr.)
\n• Color temperature: 8000K
\n
\nFeatures:
\n• Motorized Focus + 16-bit fine focus
\n• 2-degree beam angle
\n• Frost Filter to create wash effect
\n• High quality glass lens
\n• 2 Rotating prisms: 6-facet Linear and 24-facet Circular
\n• Fan cooled
\n
\nColor Wheel:
\n• 14 dichroic colors + white (Includes CTO, CTB & UV)
\n• Indexable color wheel for split colors
\n
\nGOBO Wheel:
\n• 13 static GOBOs + open (8 Fixed Gobos + 5 Glass Colorful Gobos)
\n• GOBO Shake Effect
\n
\nPrism Wheel:
\n• Rotating, 6-facet linear and 24-facet circular
\n
\nControl:
\n•1 DMX Channel Mode: 18 Channels
\n• Color LCD display with Touch color screen
\n• Control Mode: DMX512, RDM control options
\n• 0-100% smooth dimming
\n• Various strobe speeds
\n
\n
\nPan/Tilt:
\n• Pan: 540 degrees (plus 16-bit fine pan)
\n• Tilt: 270 degrees (plus 16-bit fine tilt)
\n
\nConnections:
\n• DMX Connections: 3-pin & In/Out
\n• Power Connections: IP65 rated power locking In/Out connections to daisy chain power
\n
\nElectrical:
\n• Multi-voltage operation: 100-240V, 50/60Hz
\n• Max power consumption: 400W (@120V), 371W (@230V)
\n
\nDimensions & Weight:
\n• Dimension: 13.5” (L) x 9.05” (W) x 21” (H) / 350 x 343.5 x 565mm
\n• Weight: 35.85 lbs. / 16.26 kg.
\n
\n
\nShipping Dimensions :
\n• Dimension: 17” (L) x 17” (W) x 22” (H) / 350 x 343.5 x 565mm
\n• Weight: 40 lbs. / 18.72 kg.
\n
\n
\n
\n
\n
\n
\nWhat’s Included:

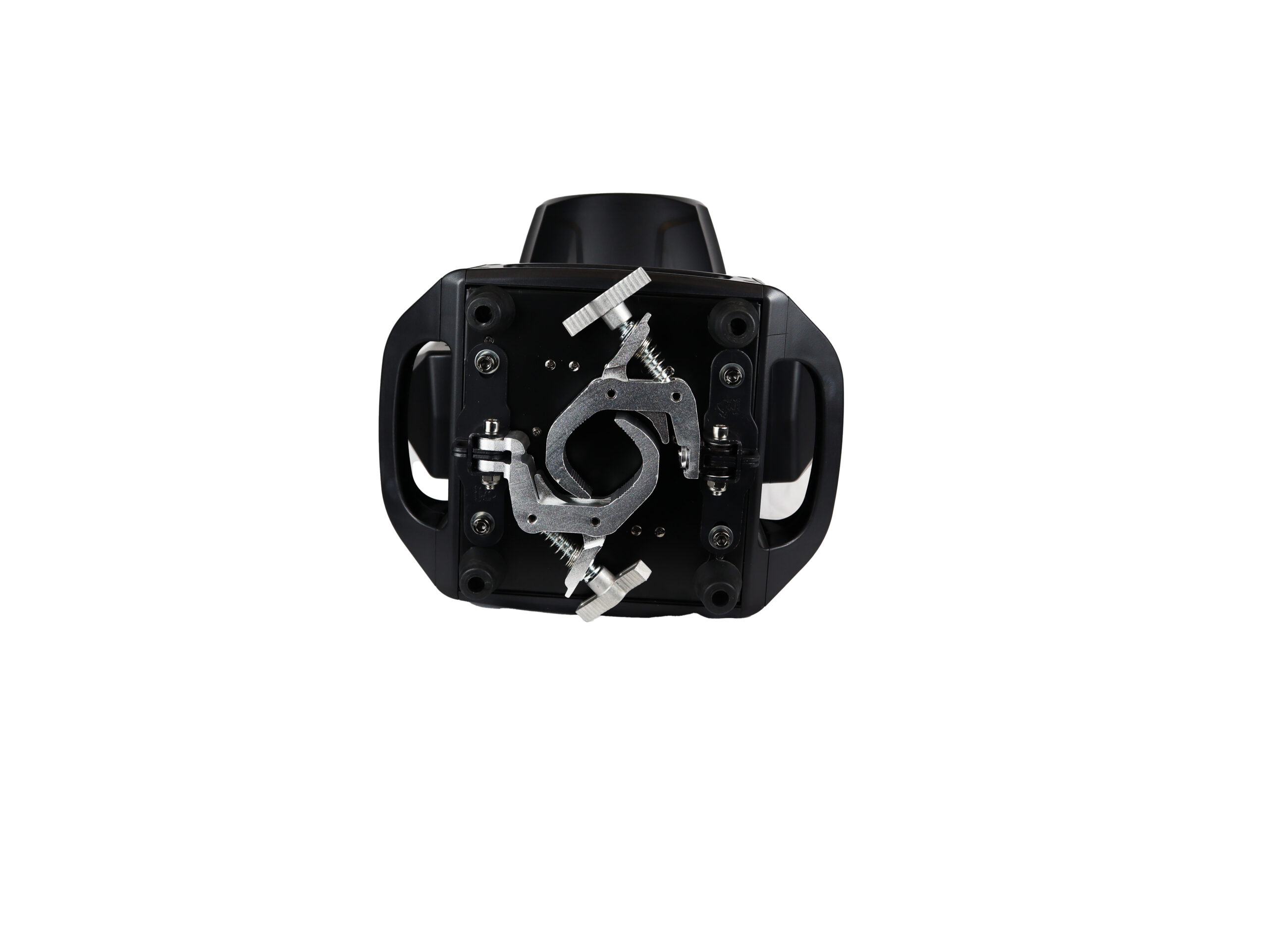

\n• Folding Clamps
\n• Power cable & Data Cables
\nUPC: 32552722699
