Product Description

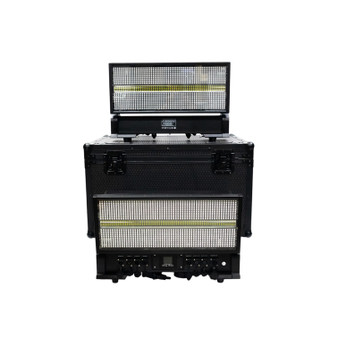

AUVI Storm 960 LED Strobe/Wash set of 4 with Case
\nKeep your Storm 960 LED Strobe/Wash lights safe with the protection case, this case has 5 spaces, 4 for the lights and 1 to store the accessories. \nThe AUVI case is compact, light and very resistant. \n \nThe AUVI Storm 960 is a motorized LED strobe/wash with two ultra-bright, white light tube elements surrounded by an electrifying, color-mixing, and pixel-mappable face. This versatile strobe light can double as a wash fixture with 180° tilt range to throw bright saturated color wherever you need. \n \nMultiple programming personalities give you a varying amount of control from simple set ups with a multitude of built-in effects, or wider control options to take advantage of the pixel-mappable zones: 14 in the RGB face and 28 in the two tube elements. Built-in alignment pins insure perfectly straight linear arrays to create massive arrangements. DMX, AUTO or Sound control. All LEDs feature 16-bit dimming for smooth fades and Pulse Width Modulation for on-camera use. \n \n \n \nSPECIFICATIONS AUVI Storm 960
\n
\n
\n
\n
\n
\nOPTICAL
\n-
\n
- Light Source: 864 LEDs (tri-color) SMD 5050, 0.784 W, (252 mA), 50,000 hours life expectancy \n
- Light Source: 96 LEDs, (CW) 5 W, (696 mA), 5861K, 50,000 hours life expectancy \n
- Color Temperature (at full): 7757 K \n
- CRI: 90.3 \n
- Beam Angle (Combine): 98° x 57° \n
- Beam Angle (Plate): 123° \n
- Beam Angle (Beam): 95° x 50° \n
- Field Angle (Combine): 146° x 122° \n
- Field Angle (Plate): 160° \n
- Field Angle (Beam): 138° x 100° \n
- Lumens (Combined): 51,620 \n
- Lumens (Plate): 14,600 \n
- Lumens (Beam): 34,381 \n
- Illuminance (Combined): 1591 lux @ 5 m \n
- Illuminance (Plate): 231 lux @ 5 m \n
- Illuminance (Beam): 1432 lux @ 5 m \n
- Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz \n
DYNAMIC EFFECTS
\n-
\n
- Tilt: 180° \n
- Tilt Ranges: 0° to 180° \n
- Dimmer: Electronic \n
- Shutter/Strobe: Electronic \n
- Strobe Rate: 0 to 30 Hz \n
- Standalone Color Mixing: Yes \n
- Dim Modes: 4 \n
- Built-in Automated Programs: Yes \n
\n
\n
\nCONNECTIONS
\n-
\n
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65 \n
- Power Input: Seetronic Powerkon IP65 \n
- Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65 \n
- Cable Length (power): 5 ft (1.5 m) \n
\n
\n
\nCONTROL
\n-
\n
- Control Protocol: AUTO, DMX, Sound \n
- DMX Channels: 8, 20, 52 \n
\n
\n
\n
\nELECTRICAL
\n-
\n
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) \n
- Power and Current: 720 W, 7.14 A @ 100 V, 60 Hz \n
- Power and Current: 740 W, 6.36 A @ 120 V, 60 Hz \n
- Power and Current: 716 W, 2.35 A @ 208 V, 60 Hz \n
- Power and Current: 696 W, 3.27 A @ 230 V, 50 Hz \n
- Power and Current: 709 W, 3.02 A @ 240 V, 50 Hz \n
\n
\n
\nWHAT'S INCLUDED
\n-
\n
- 4 AUVI Storm 960 Lights \n
- 4 Power cord \n
- 4 Bracket \n
\n
\nCONSTRUCTION / PHYSICAL
\n-
\n
- Dimensions: 16.02 x 6.90 x 12.30 in (407 x 175.4 x 312.5 mm) \n
- Weight: 26.6 lb (12.1 kg) \n
- Exterior Color: Black \n
- Housing Material: Magnesium alloy \n
OPTIONAL ACCESSORIES
\n-
\n
- Road Case \n
