Product Description

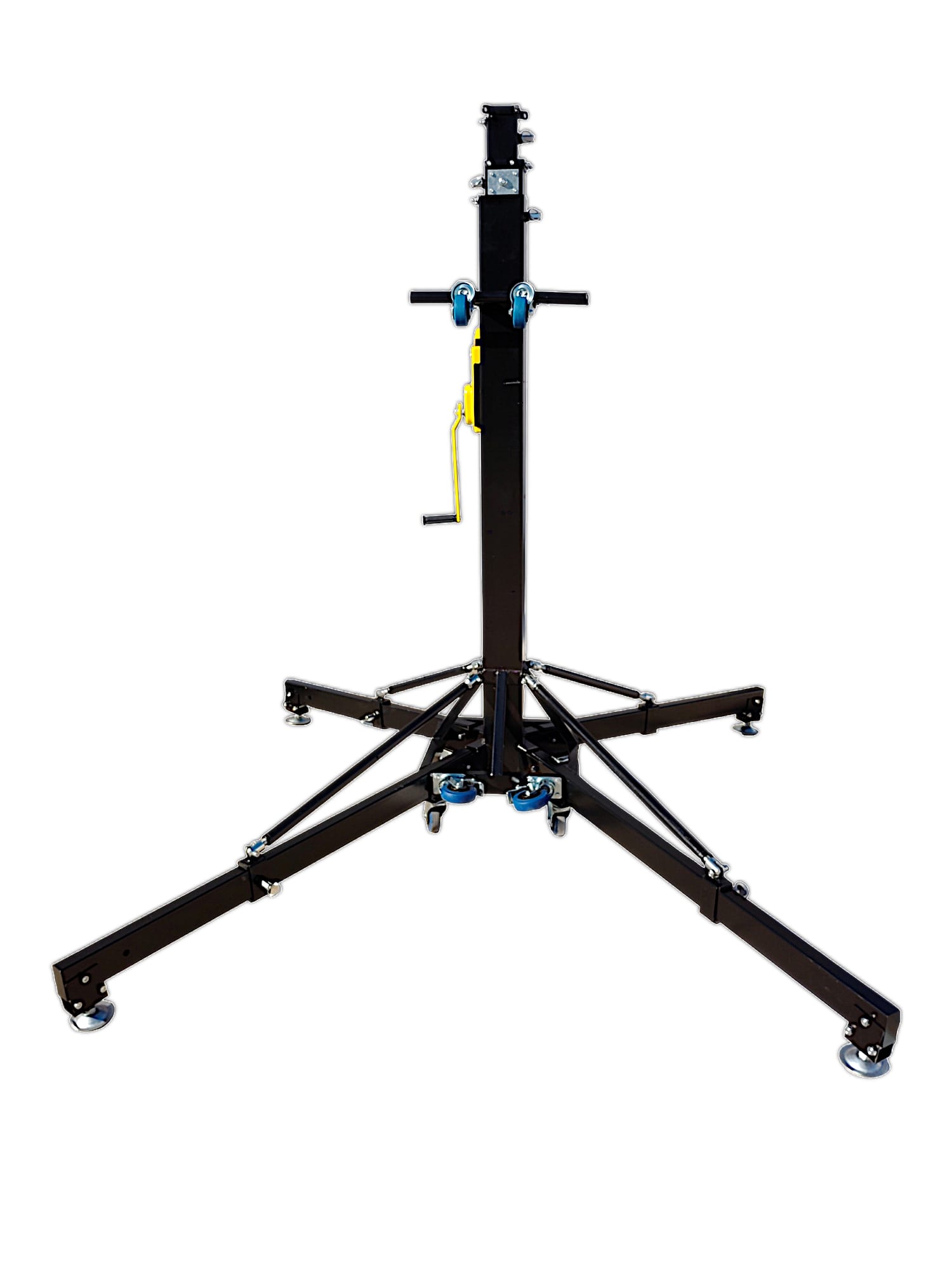

The AUVI Truss® AT-06 Speaker Crank Tower 6.0 (Set of 2) is a professional-grade, extra heavy-duty crank-up lifting system engineered for safely raising line array speaker systems up to 20 ft (6 meters) with a maximum load capacity of 500 lbs per tower.
Built entirely from all-metal construction, this tower system is designed for production companies, rental houses, mobile DJs, churches, and event professionals who demand strength, stability, and reliability. The included line array bracket adapter ensures secure compatibility with multiple speaker configurations, making this set a powerful and flexible solution for modern sound reinforcement.
With integrated outriggers, support bar, safety locks, and winch brake, the AT-06 delivers controlled lifting and maximum safety, even under heavy loads.
Key Features
-
20 ft (6 m) Maximum Lift Height
Raise line array systems up to 20 feet for optimal sound coverage in large venues. -
500 lb Maximum Load Capacity (per tower)
Built to handle heavy professional speaker systems with confidence. -
Line Array Bracket Adapter Included
Supports multiple line array speaker sizes and configurations. -
Extra Heavy-Duty All-Metal Construction
No plastic components — engineered for long-term durability and professional use. -
Outriggers & Support Bar for Maximum Stability
Enhanced base support ensures safe operation during lifts. -
Advanced Safety System
Crank winch with built-in brake and safety lock prevents uncontrolled descent. -
Portable & Easy Transport

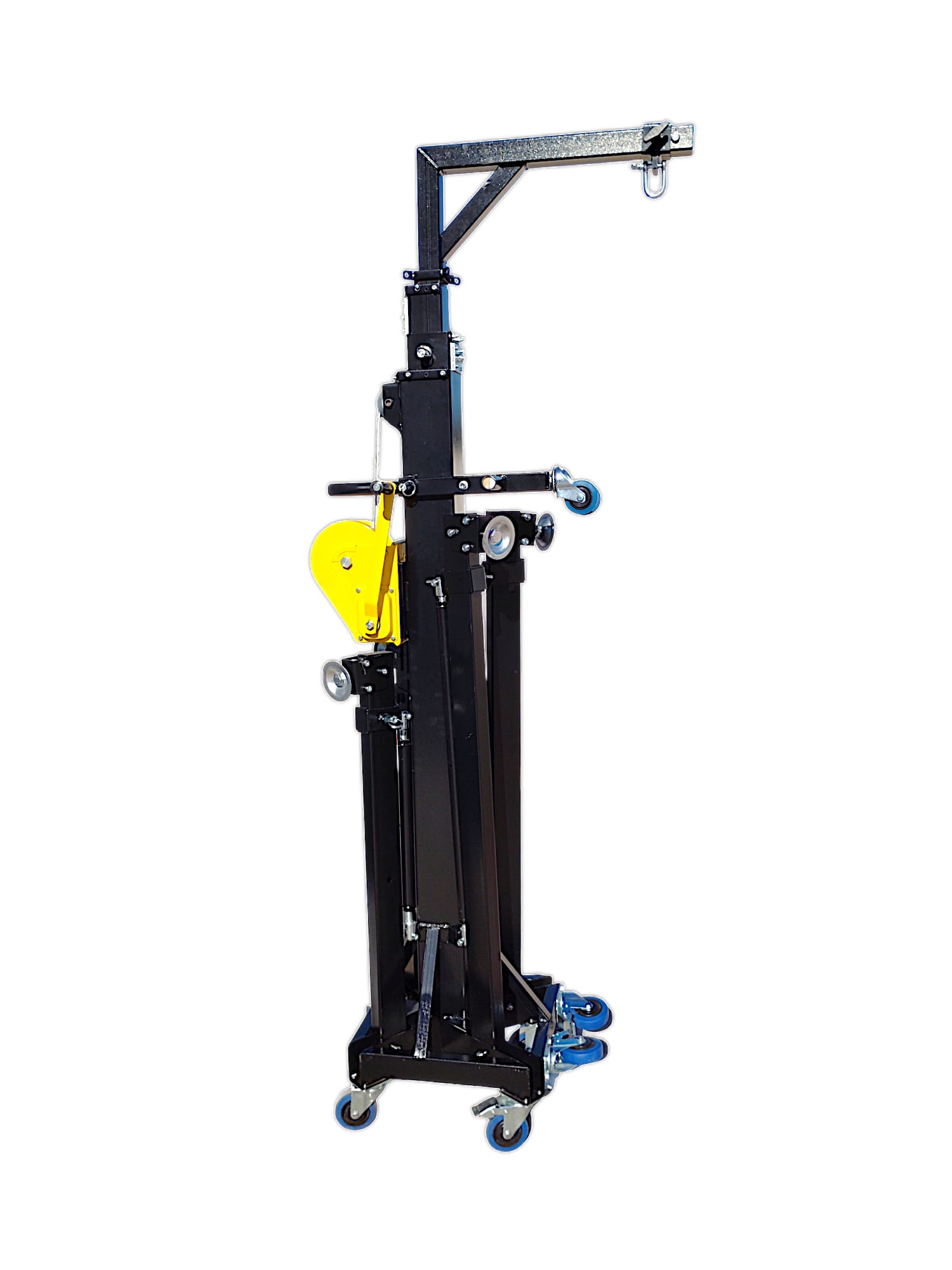

Foldable design with rollers for both horizontal and vertical transport. -
Floor-Safe Design
Rubber-coated feet and polyurethane wheels protect floors from scratches. -
Low-Profile Black Finish
Electroplated black mast sections remain discreet in dark event environments.
Specifications
-
Model: AT-06
-
Lift Height: 6.5 meters (6.6 – 19.7 ft)
-
Maximum Load: 250 kg / 550 lbs (≈ 500 lbs rated working load)
-
Construction: All-metal
-
Square Pipe Thickness: 2.5 mm
-
Horizontal Bar Length: 485 mm
-
Base Dimensions: 470 × 470 mm
-
Folded Dimensions:
-
21 × 30 × 76 inches
-
20 × 26 × 73 inches
-
-
Weight: 97 kg / ~200 lbs each tower
-
Package Includes: Set of 2 crank towers, outriggers, support bar, line array bracket adapters
Why Choose the AUVI AT-06 Speaker Crank Tower 6.0?
-
Designed for maximum safety, strength, and professional reliability
-
Ideal for line array speaker systems in concerts, churches, festivals, and mobile productions
-
Smooth crank operation with secure load handling
-
A long-term investment for serious audio professionals
