Product Description

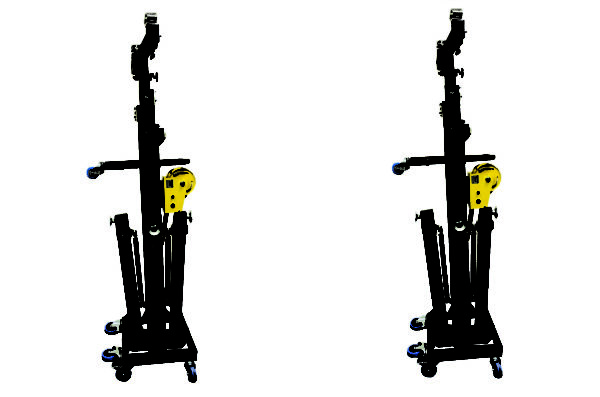

The AUVI Truss® AT-06 Crank Tower 6.0 (Set of 2) is an extra heavy-duty crank-up lifting solution designed for safely raising truss, lighting, and stage equipment up to 20 ft (6 meters) with a maximum load capacity of 500 lbs per tower.
Built almost entirely from all-metal construction, the AT-06 eliminates weak plastic components, delivering long-term durability for professional production companies, rental houses, mobile entertainers, churches, and event venues.
Each tower includes an adjustable T-Bar adapter compatible with multiple truss sizes, making it ideal for lifting truss systems, stage lighting, and production rigs. Integrated outriggers, safety locks, and a winch brake ensure controlled, secure operation at all heights.
Key Features
-
20 ft (6 m) Maximum Lift Height
Ideal for truss systems, stage lighting, and production setups. -
500 lb Maximum Load Capacity (per tower)
Built to safely lift heavy truss and lighting equipment. -
T-Bar Adapter Included
Adjustable to fit multiple truss sizes and configurations. -
Extra Heavy-Duty All-Metal Construction
No plastic parts to break or strip over time. -
Integrated Outriggers for Stability
Provides a wide, secure base during lifting operations. -
Advanced Safety System
Crank winch with built-in brake and safety lock prevents uncontrolled descent. -
Portable & Space-Saving Design
Folds down easily for storage and transport. -
Floor-Friendly Design
Rubber-coated feet and polyurethane wheels protect flooring surfaces. -
Low-Visibility Finish
Black electroplated mast sections remain discreet in dark environments.
Specifications
-
Brand: AUVI Truss®
-
Model: AT-06 / Crank Tower 6.0
-
Set Includes: 2 crank towers with outriggers and T-Bar adapters
-
Lift Height: 2 – 6.5 m (6.6 – 19.7 ft)
-
Maximum Load: 250 kg / 550 lbs (≈ 500 lbs rated working load)
-
Construction: All metal
-
Square Pipe Thickness: 2.5 mm
-
Horizontal Bar Length: 485 mm
-
Base Dimensions: 470 × 470 mm
-
Weight: 97 kg (≈ 200 lbs) per tower
-
Folded Dimensions:
-
21 × 30 × 76 in
-
20 × 26 × 73 in
-
-
Model Reference: GE-TC001 / AVT-TCranks
Ideal Applications
-
Truss lifting systems
-
Stage and event lighting rigs
-
Concert and festival production
-
Churches and houses of worship
-
Mobile DJs and rental companies
