Product Description

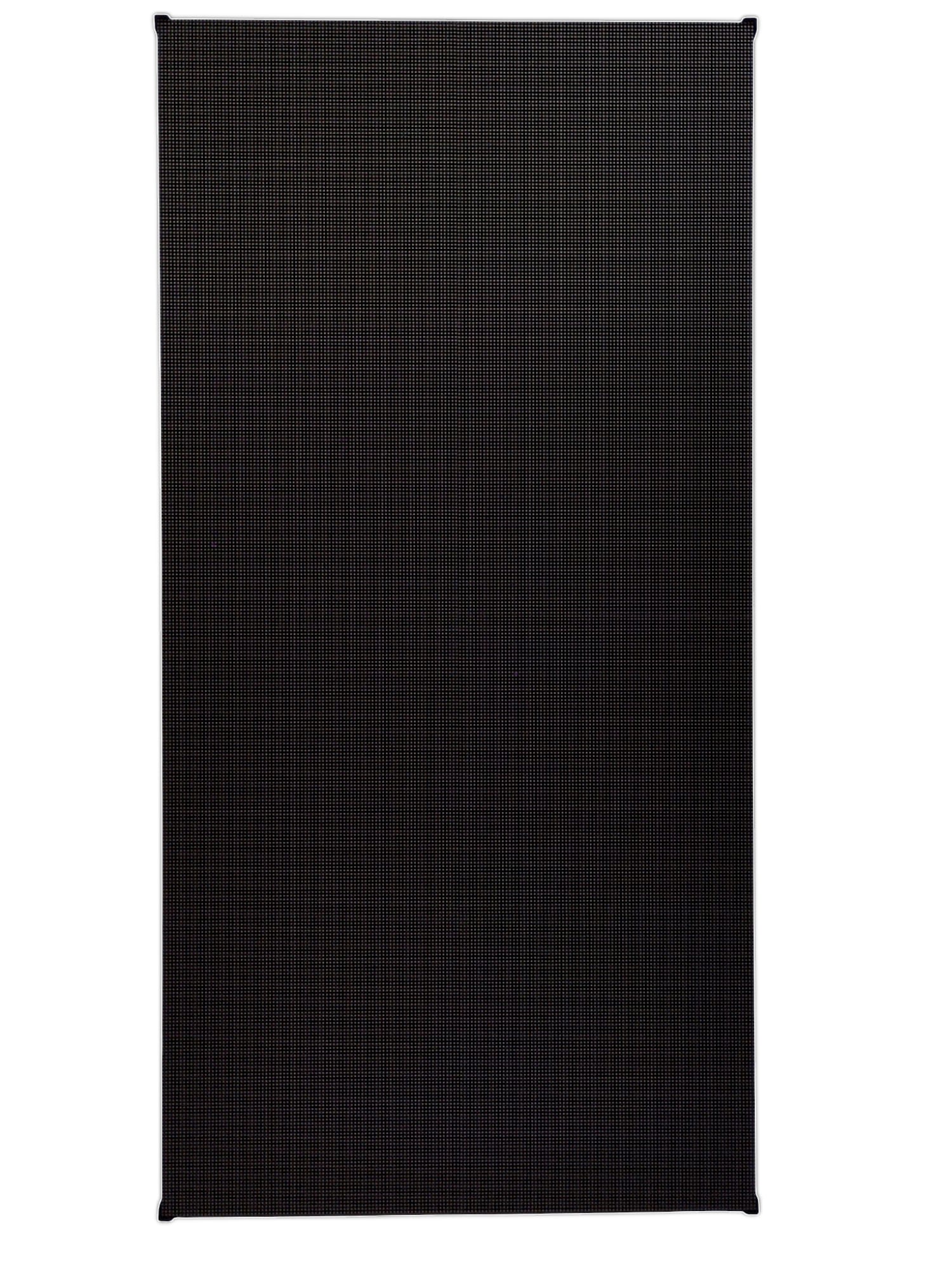

The AUVI LED Video Panel 2.9 12 Pack Indoor delivers outstanding image quality and flexibility for professional installations and event setups. Featuring a 2.9 mm pixel pitch, 1,500 NITS brightness, and a 7680 Hz refresh rate, this high-performance LED display ensures crisp, smooth visuals for close viewing distances — ideal for corporate events, live shows, and broadcast environments.
Each panel is built with a lightweight die-cast magnesium housing, designed for easy handling and quick setup using magnetic-assisted hanging and fly bars. The complete 12-panel package includes road cases, linking cables, a video processor, and accessories for a ready-to-deploy LED wall solution.
With dual power supplies, Novastar A5s receiver cards, and front/rear service access, the AUVI LED Video Panel 2.9 offers dependable performance and maximum flexibility for any professional LED video application.
Features
-
2.9 mm high-resolution pixel pitch for sharp, detailed visuals
-
High brightness: 1,500 NITS with a 7860 Hz refresh rate
-
Advanced S-PWM dimming for superior on-camera performance
-
Black body LEDs for high contrast and rich color reproduction
-
Lightweight 13.6 kg (30 lb) die-cast magnesium housing
-
Compatible with Novastar control protocol
-
Supports VIP Drive 43Nova2 and 83R Nova processors
-
Front and rear serviceable modules for easy maintenance
-
Dual power supplies for system stability
-
Fly bars, linking cables, and processor included
-

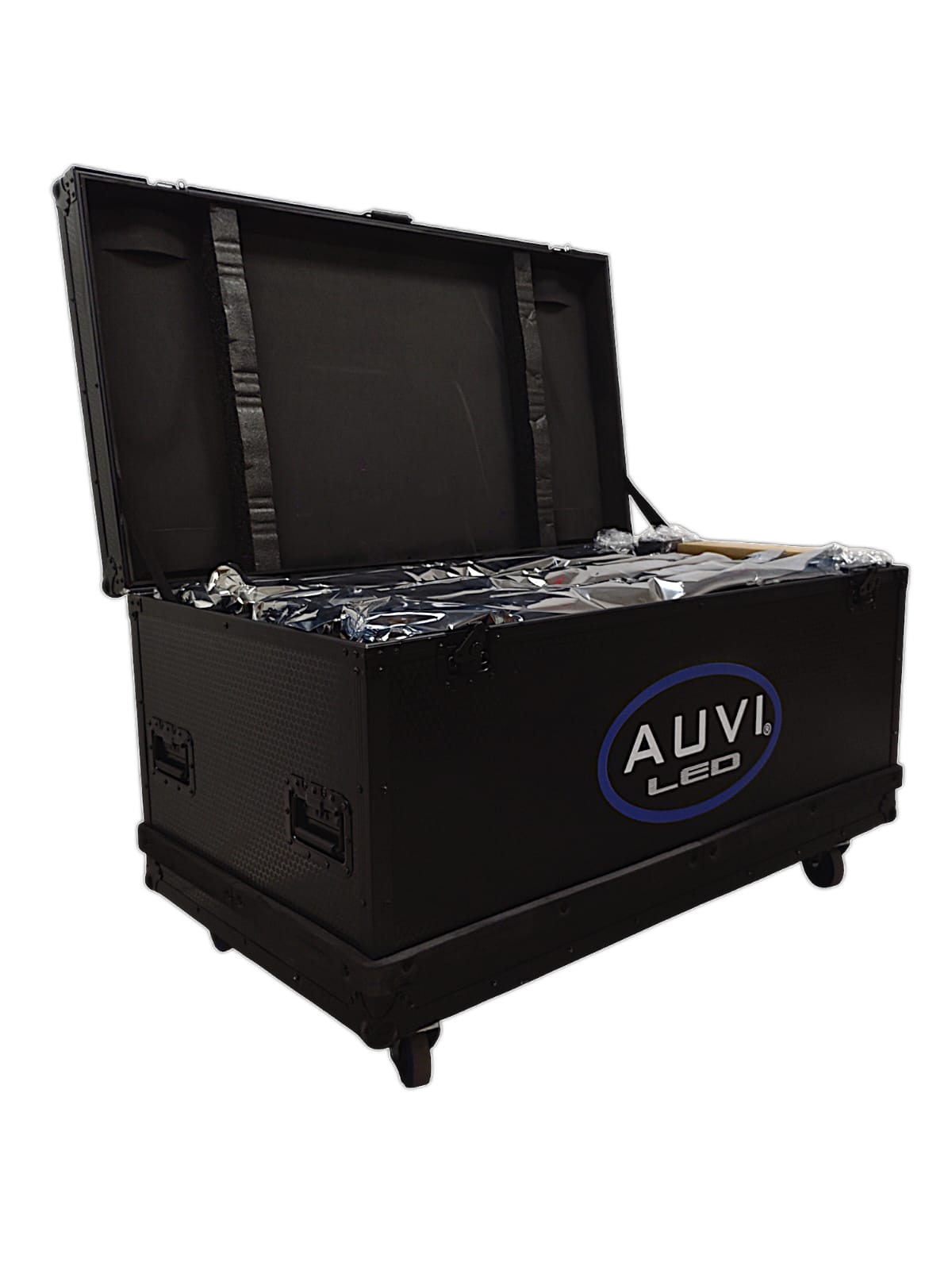

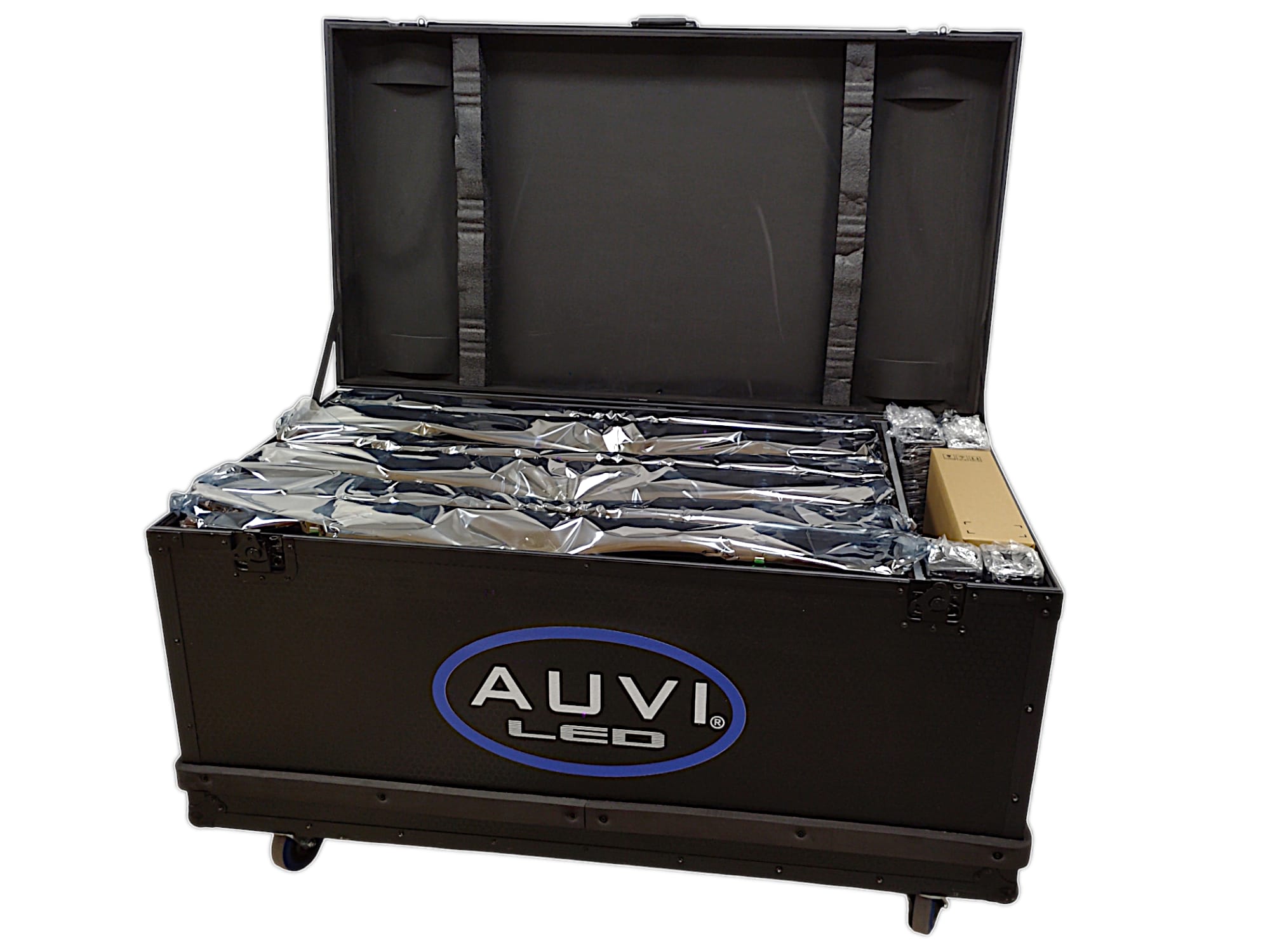

Includes 2 road cases for safe transport and storage
Specifications
Optical:
-
Pixel Pitch: 2.9 mm
-
LED Type: SMD 2121 RGB
-
Brightness: 1,200–1,500 NITS
-
Refresh Rate: 7860 Hz
-
Viewing Angle (H/V): 160° / 155°
-
Contrast Ratio: 8,500:1
-
Pixel Density: 112,896/m²
-
Grayscale: 16-bit
-
Receiver Card: Novastar A5s
-
Minimum Viewing Distance: 2.3 m (7.5 ft)
Construction / Physical:
-
Dimensions (per panel): 500 x 82.5 x 1000 mm (19.69 x 3.25 x 39.37 in)
-
Weight (per panel): 13.6 kg (30 lb)
-
Material: Magnesium die-cast housing
-
Max Vertical Hang: 23 panels
-
Max Horizontal Hang: 17 panels
-
Exterior Color: Black
Connections:
-
Power Input/Output: Seetronic® powerKON®
-
Data Connectors: Seetronic® etherKON®
-
Power Cable Length: 1.8 m (6 ft)
-
Signal Extension Cable: 1.2 m (4 ft)
Electrical:
-
Input Voltage: 100–240 VAC, 50/60 Hz
-
Power Consumption: 333 W (Max), 26 W (Idle)
-
Power Linking: 4 units @120V / 8 @208V / 9 @230V
Included:
-
12x AUVI LED Video Panels (F2.9i Indoor)
-
2x PowerKON® power cords
-
10x PowerKON® power linking cords
-
12x etherKON® signal linking cords
-
6x Fly bars
-
2x Road cases
-
1x Video Processor (AVP-VP718 2K)
Optional Accessories:
-
VPX 4K Video Processor
-
PRO Truss Tower Stage Lift System
-
ProX T-C8 Pro Clamp
-
ProX 6ft SpanSet SteelTex Round Stage Slings
