Product Description
\n
\n

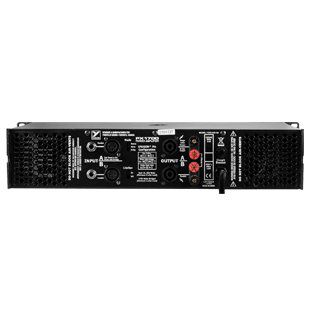

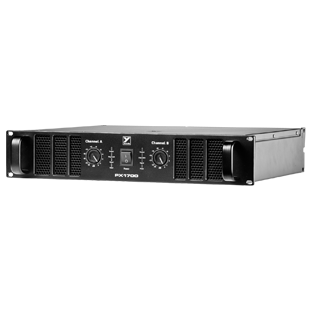

\n2 x 850 Watt Power AmplifierPerfect for club or concert hall, the Yorkville PX Series PX1700 power amplifier delivers up to 1700 watts (2 x 850 watts @ 2 ohms). XLR and 1/4-inch inputs, binding post and Speakon™ outputs ensure the PX1700 can be integrated into virtually any high performance sound system or mobile PA.
\n
\n
\n
\n
\n
\n
\nFeatures
\n-
\n
- Easily Drives Reactive Loads \n
- Delivers 1700 Watts Bridged Mono @ 4 ohms \n
- 850 Watts PRE Channel @ 2 ohms \n
- Efficient Front-to-Back Cooling Scheme \n
- Recessed Front Panel Gain Controls \n
- Advanced Protection Schemes \n
- Front Panel Power, Protect, Activity and Clip LED's \n
- Speakon™ and Binding Post Outputs \n
- Balanced XLR & ¼-inch TRS Inputs \n
- Sturdy All-Steel Construction \n
Specifications
\n| Amplifier class | \nClass-H | \n
| Continuous Average Power @ 8 Ohms BCD (Watts) | \n400 | \n
| Continuous Average Power @ 4 Ohms BCD (Watts) | \n600 | \n
| Continuous Average Power @ 2 Ohms BCD (Watts) | \n850 | \n
| Continuous Average Power Bridged BCD (Watts) | \n1700 | \n
| Burst Average Power @ 8 Ohms BCD(Watts) | \n600 | \n
| Burst Average Power @ 4 Ohms BCD (Watts) | \n1000 | \n
| Burst Average Power @ 2 Ohms BCD (Watts) | \n850 | \n
| Burst Average Power Bridged BCD (Watts) | \n1700 | \n
| Frequency Response (Hz, +/- 1dB) | \n30Hz to 20kHz | \n
| Hum and Noise (un / Aweighted -dB) | \n-100dB | \n
| THD -1kHz- 4 OHMS | \n0.0003 | \n
| THD - 20Hz-20kHz, 4 Ohms | \n0.001 | \n
| Damping Factor (30 Hz - 400 Hz @ 8 Ohms) | \nGreater than 300 | \n
| Crosstalk (1kHz / 20Hz-20kHz) | \n-75dB / -60dB | \n
| Input Impedance - Bal/Unbal (Ohms) | \n30kOhms/15kOhms | \n
| Input Sensitivity (Vrms) For Full Power Out | \n1.4 | \n
| Max Voltage Gain (dB) | \n31dB | \n
| Stereo / Mono / Bridge )S/M/B) | \nYes | \n
| Protection | \nDC/Load/Thermal | \n
| Limiter | \nDefeatable | \n
| High Pass Filter | \nNo | \n
| Cooling | \nFan | \n
| Cooling Path | \nFront to Back | \n
| Inputs - XLR | \nYes (x2) | \n
| Inputs - 1/4" Jacks | \nYes (x2) | \n
| Outputs - Speakon 4-pin | \nYes | \n
| Outputs - Binding Post | \nYes | \n
| Power Consumption (typ/max) | \n700/1500 | \n
| Rack Spaces | \nTwo | \n
| Transformer Type | \nToroidal | \n
| Exterior Finish | \nBlack Paint | \n
| Dimensions (DWH /D fm ears, inches) | \n16 x 19 x 3.5 | \n
| Dimensions (DWH /D fm ears, cm) | \n40.6 x 48.3 x 8.9 | \n
| Weight (lbs / kg) | \n35/16 | \n
