he Vizi Beam 12RX is high powered beam moving head powered by the brilliant 260W Philips Platinum 12R LL MSD Discharge Lamp (6,000 hr.). It produces a razor sharp 2-degree beam of light. It comes with 14 colors + open (with color indexing), 16 GOBOs + open (with GOBO indexing), two rotating prisms and a frost filter for wash effects.
\n
\nThe Vizi Beam 12RX offers 2 DMX modes (14 or 16 channels) and RDM control options. It has 3-pin and 5-pin DMX In/Out connections and PowerLock In/Out connection to daisy chain the power from one fixture to the next. It has a color display with 4-button internal menu system.
\n
American DJ Vizi Beam 12RX Beam Moving Head Features:
\n
\n - Motorized Focus + 16-bit fine focus.
\n - 2-degree beam angle.
\n - Frost Filter to create wash effect.
\n - High quality glass lens.
\n - 2 Rotating prisms: 6-facet Linear and 24-facet Circular.
\n - 0-100% smooth dimming.
\n - Various strobe speeds.
\n - USB firmware update port.
\n - Fan cooled.
\n
\n
American DJ Vizi Beam 12RX Specifications:
\n
Light Source
\n260W Philips Platinum 12R LL MSD Discharge Lamp (6,000 hr.)
\nColor temperature: 7800K
\n
\n

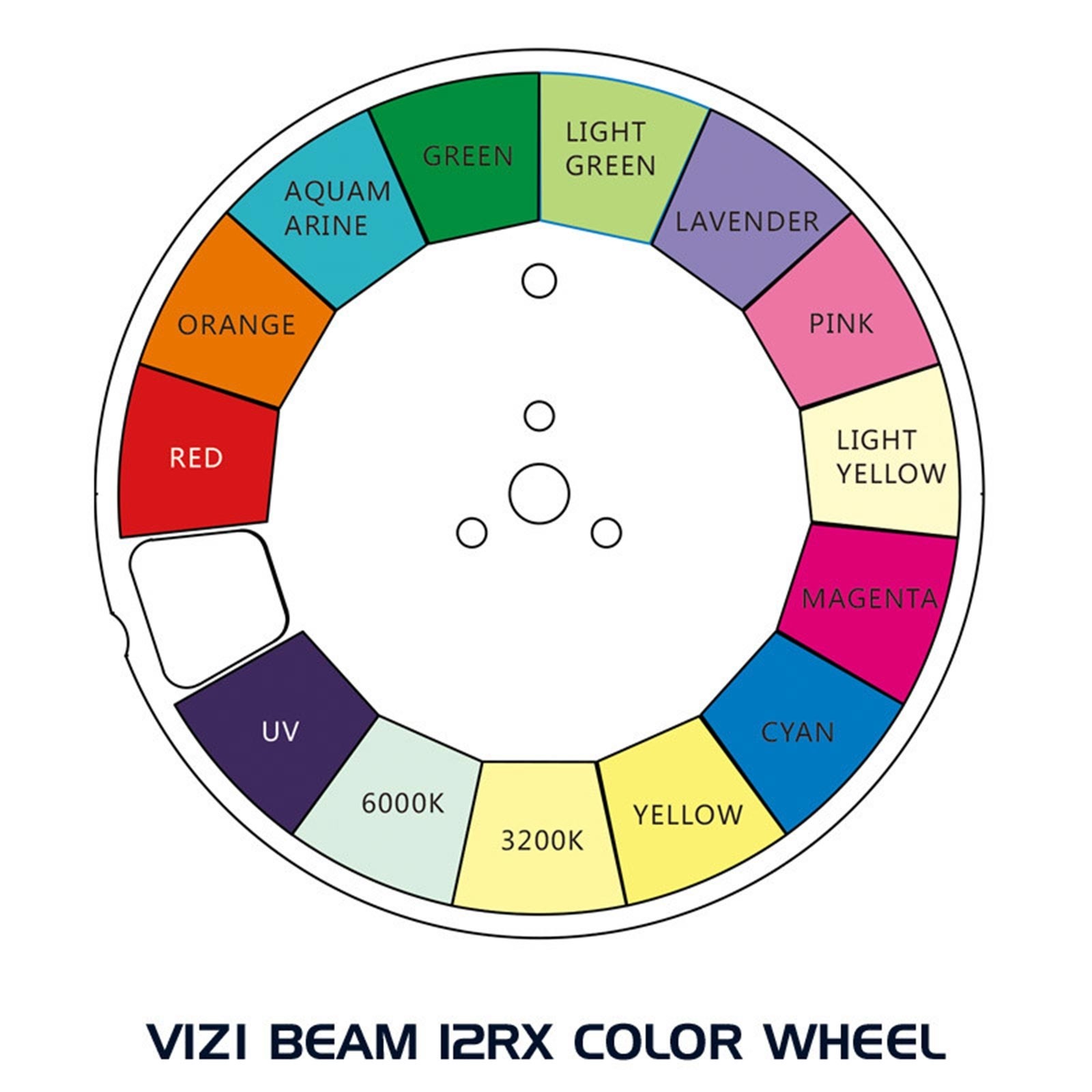

Color Wheel:
\n14 dichroic colors + white (Includes CTO, CTB & UV)
\nIndexable color wheel for split colors
\n
\n
GOBO Wheel:
\n16 static GOBOs + open (4 GOBOs are beam reducers)
\nGOBO Shake Effect
\n
\n
Prism Wheel:
\nRotating, 6-facet linear and 24-facet circular
\n
\n
Control
\n2 DMX Channel Modes: 14/16 Channels
\nColor LCD display with 4-button function menu
\nControl Mode: DMX512, RDM or internal programs
\n0-100% smooth dimming
\nVarious strobe speeds
\nUSB firmware update port
\nWith Wired Digital Communication Network
\n
\n
Pan/Tilt:
\nPan: 540 degrees (plus 16-bit fine pan)
\nTilt: 270 degrees (plus 16-bit fine tilt)
\n
\n
Connections
\nDMX Connections: 3-pin & 5-pin XLR In/Out (Data link max: 32 fixtures)
\nPower Connections: PowerLock In/Out to daisy chain power
\n
\n
Electrical
\nMulti-voltage operation: 100-240V, 50/60Hz
\nMax power consumption: 384W (@120V), 371W (@230V)
\n
\n
Dimensions & Weight
\nDimension: 10" (L) x 13.75" (W) x 22.25" (H) / 253 x 350 x 566mm
\nWeight: 39.7 lbs. / 18 kg.
