Product Description
The Akai Pro MPC XL represents the pinnacle of standalone music production, evolving the legacy of the world’s most influential sampling drum machine. Designed for computer-free workflows, MPC XL delivers massive processing power, deep hands-on control, and studio-grade performance in a single, self-contained system.
At its core is a next-generation 8-core processor, 16 GB of RAM, and 256 GB internal SSD, enabling complex projects with up to 32 plugin instruments, 16 audio tracks, and 256 simultaneous voices. Ultra-responsive MPCe pads with 3D sensing, a dedicated step sequencer with 16 function modes, and 16 Q-Link knobs with OLED displays provide immediate, expressive control for modern production and live performance.
Fully integrated with MPC3 OS, MPC XL supports advanced sequencing, clip launching, professional stem separation, high-quality time-stretching, and extensive audio, MIDI, and CV/Gate connectivity. With comprehensive I/O, wireless support, and a tilting 10.1” HD touchscreen, MPC XL stands as a true studio centerpiece for today’s fast-moving producers.
Features
-
Standalone operation with MPC3 OS — no computer required
-
Gen 2 8-core processor with 4× the processing power of previous MPCs
-
16 GB RAM for running multiple plugins simultaneously
-
256 GB internal NVMe SSD for projects, instruments, and samples
-

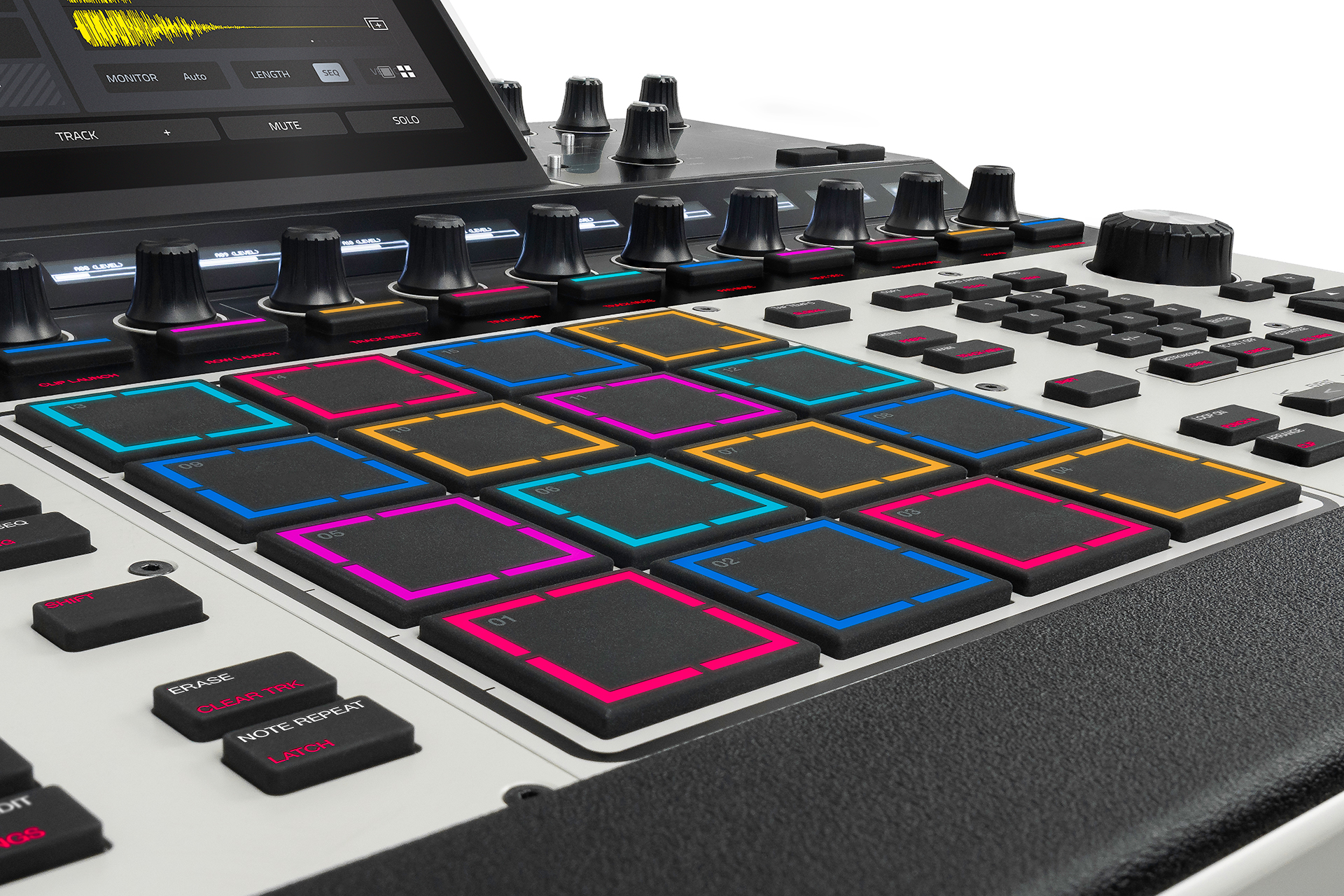

MPCe pads with advanced 3D-sensing technology (4 quadrants per pad)
-
Assignable performance touch strip for FX, note repeat, faders, and more
-
Dedicated step sequencer with 16 RGB function buttons
-

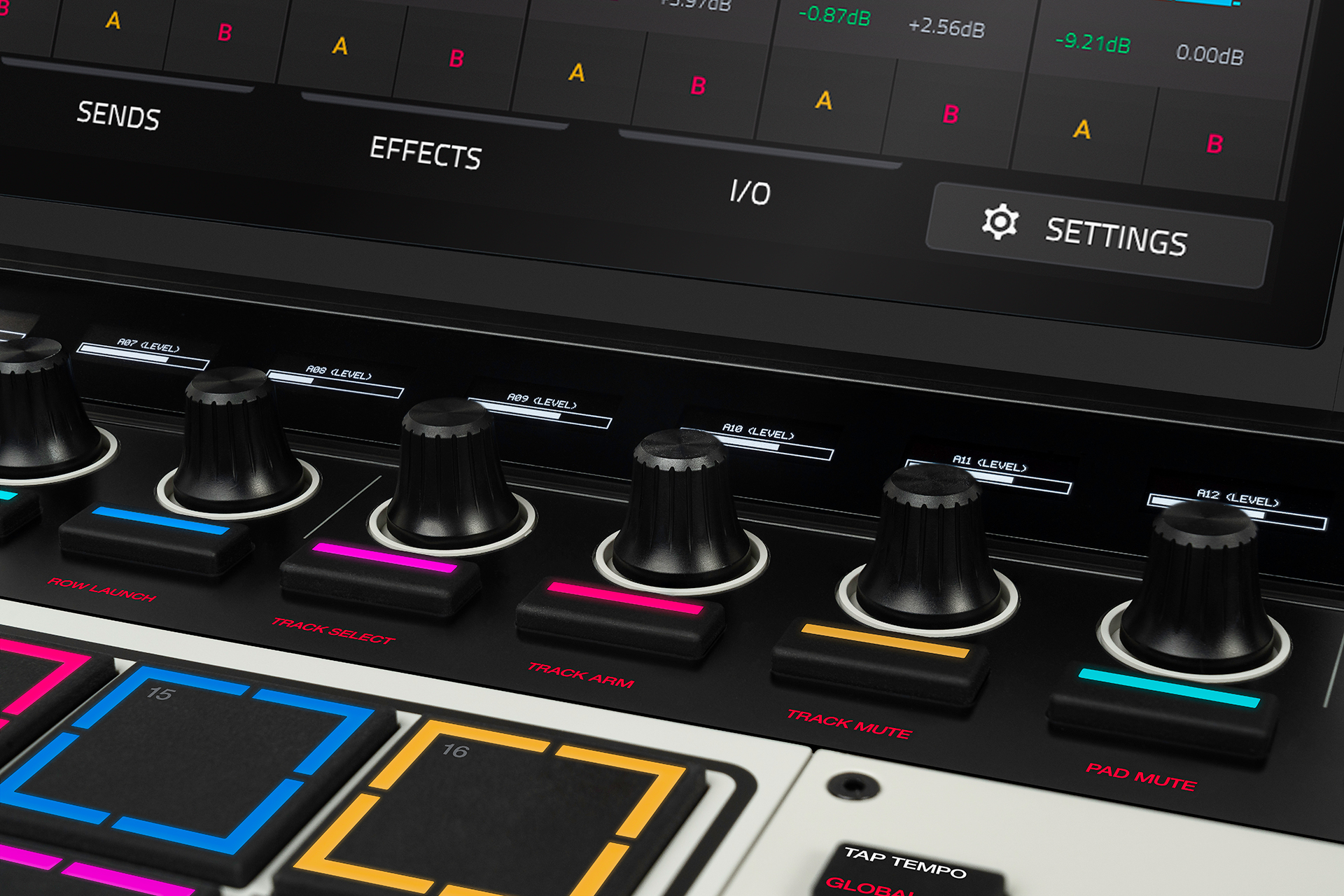

16 Q-Link knobs with OLED displays for real-time visual feedback
-
XL Channel Command for fast access to mixing and recording parameters
-
One-to-one surface buttons for instant feature access
-
10.1” HD multi-gesture touchscreen with adjustable tilt
-
Extensive professional audio, MIDI, USB, and CV/Gate connectivity
-
Built-in Wi-Fi and Bluetooth
Specifications
Digital Audio System
-
ADCs / DACs: 24-bit @ 44.1, 48, 88.2, 96 kHz
-
DSP: 32-bit floating point
Inputs
-
Mic Inputs (1–2): (2) balanced XLR/TRS combo
-
Line Inputs (1–2): (2) balanced XLR/TRS
-
Line Inputs (3–4): (2) balanced 1/4” TRS
-
Instrument Inputs (1–2): (2) unbalanced 1/4” TS
-
Phono Inputs: (2) RCA
Outputs
-
Main Outputs (1–2): (2) impedance-balanced 1/4” TRS
-
Line Outputs (3–8): (6) impedance-balanced 1/4” TRS
-
Headphones: 1/4” and 1/8” stereo outputs
Pads & Controls
-
Pads: (16) velocity- and pressure-sensitive MPCe pads with 3D sensing
-
Pad Banks: (8)
-
Knobs: (17) touch-sensitive Q-Links, (1) encoder, (7) control knobs
-
Buttons: 105 dedicated buttons
-
Displays:
-
10.1” (256.5 mm) 1280 × 800 multi-touch display
-
(17) OLED parameter displays
-
CPU / Memory / Storage
-
CPU: 8-core processor
-
Memory: 16 GB
-
Storage: 256 GB internal NVMe SSD + 2.5” SATA expansion bay
Connectivity
-
USB-C, (3) USB-A ports
-
SD card slot
-
(4) MIDI Out, (2) MIDI In
-
(8) stereo 1/8” CV/Gate outputs (16 total CV outs)
-
Wi-Fi and Bluetooth
Power
-
Power Supply: 19 V, 3.42 A (included)
Dimensions & Weight
-
Dimensions: 21.4” × 19.2” × 3.7” (543 × 488 × 94 mm)
-
Weight: 15.87 lbs (7.2 kg)
