Product Description

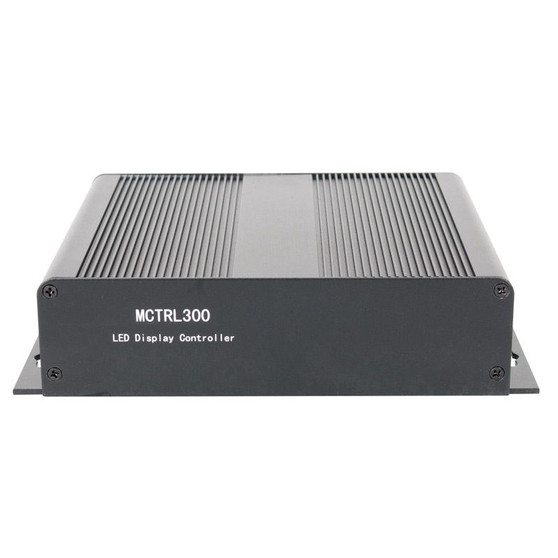

The Novastar MCTRL-300 is a professional LED display controller designed for reliable operation with ADJ AV6 video panels and a wide range of compatible LED systems. Featuring a clean and efficient design, the MCTRL-300 provides a synchronous display setup using a DVI input from a control PC and delivers high-quality output through two RJ45 pixel-data ports. With support for multiple input formats and resolutions, this controller ensures smooth playback and accurate pixel-to-pixel LED reproduction.
Capable of driving up to 1.3 million pixels, the MCTRL-300 supports popular display resolutions including 1280 × 1024, 1024 × 1200, 1600 × 848, 1920 × 712, and 2048 × 668. It offers a fast 1200Hz refresh rate, stable performance, and precise brightness correction at the pixel, module, and cabinet levels—ideal for broadcast, live events, touring setups, permanent installations, and digital signage.
Configuration is simple via USB, and users can take advantage of extensive connectivity options such as Composite, S-Video, Component, VGA, DVI, HDMI, and HD-SDI inputs when used with supported signal converters. With long control-distance capabilities using Ethernet or fiber optic cable, the MCTRL-300 is a flexible, essential controller for high-resolution LED panel systems.
FEATURES
-
Professional LED display controller for AV6 and compatible LED panels
-
Drives up to 1.3 million pixels with multiple supported resolutions
-

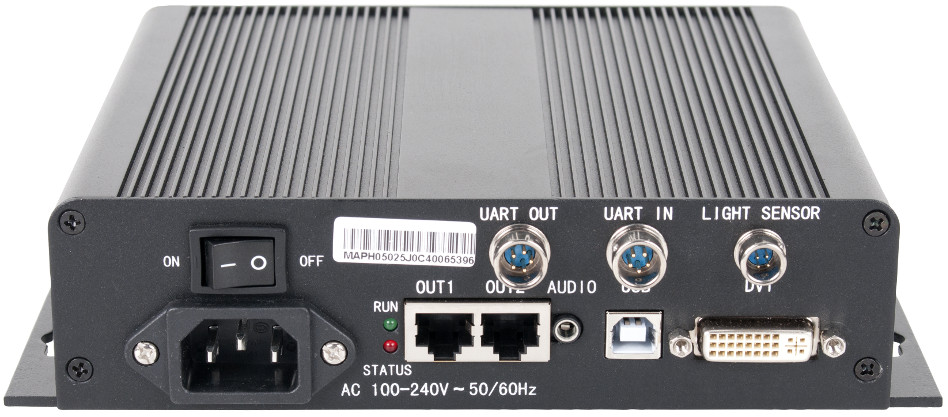

One DVI signal source input with two RJ45 pixel-data outputs
-
USB configuration for quick setup and control
-
High 1200Hz refresh rate for smooth visual performance
-
Supports input formats including Composite, S-Video, Component, VGA, DVI, HDMI, and HD-SDI
-
Brightness correction available at pixel, module, and cabinet levels
-
Long-distance control capability:
-
Ethernet cable <100m
-
Fiber optic >120m
-
-
Stable synchronous display operation for professional environments
-
Essential controller for ADJ AV6 panels
SPECIFICATIONS
Control Mode: Synchronous display via DVI from control PC
Frame Update Frequency: 50–60 Hz
Scan Mode: 1/12 duty
Refresh Rate: 1200 Hz
Supported Inputs:
Composite, S-Video, Component, VGA, DVI, HDMI, HD-SDI
Control Distance:
-
Ethernet: <100 m
-
Fiber Optic: >120 m
Supported VGA Resolutions:
1280 × 1024, 1024 × 1200, 1600 × 848, 1920 × 712, 2048 × 668
Brightness Correction: Pixel, module, cabinet
Requirements: Computer required (sold separately)
