Product Description
4-Universe DMX Hardware Lighting Controller For Use with iPad and ADJ Airstream LINK iOS App
\n
\n
\n
\n
\n
\n
\n
\n
\nTactile iPad-based Lighting Control!

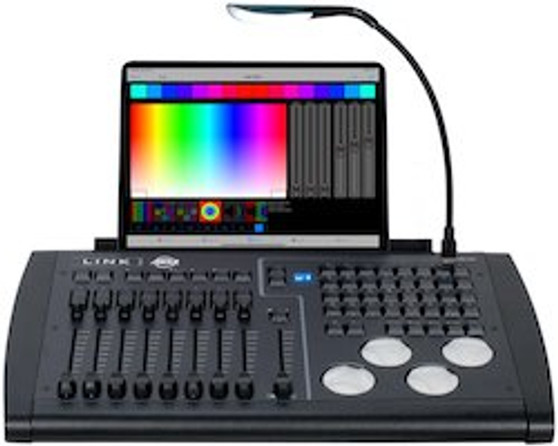

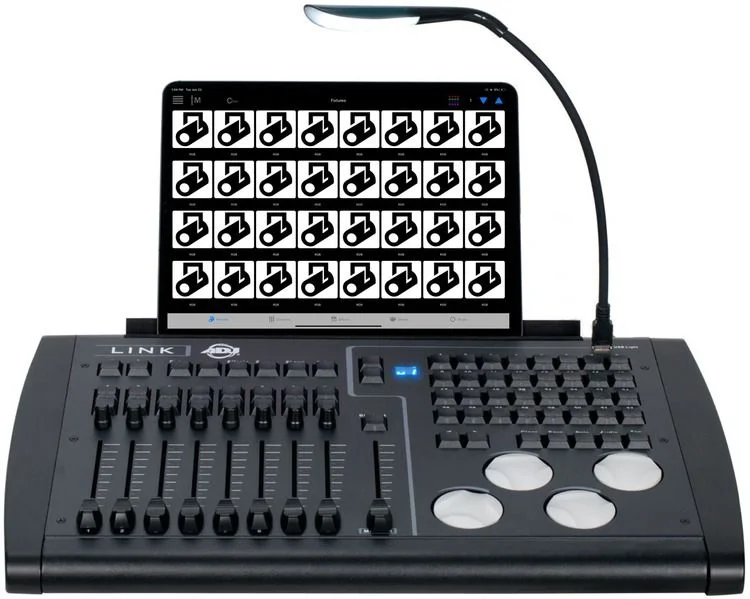

\nThe ADJ LINK is a 4-universe hardware lighting console that lets you control compatible DMX fixtures via its dedicated Airstream DMX LINK iOS app for iPad. LINK connects to your iPad either hardwired or wirelessly; however; you realize the full advantages of this innovative system when connected wirelessly. In this scenario, LINK creates a private standalone 2.4 or 5GHz DSSS (Direct Sequence Spread Spectrum) Wi-Fi network between your iPad and LINK console; this network can coexist alongside other wireless technologies in crowded RF environments. \n \n
\n
\n
\n
\n
\nWireless flexibility
\nUsing a wireless connection also lets you undock your iPad and control, program, and playback your light show remotely. If you want to use a hardwired connection, you’ll need a USB cable adapter (available separately) between LINK and your iPad. This will simultaneously charge the iPad. Four hardwired, 5-pin XLR outputs on the LINK’s rear panel send DMX data to compatible DMX fixtures. The lighting pros at Sweetwater are impressed with the no-fuss control and excellent results they obtain with LINK and their iPads. It’s perfect for smaller events in any venue where the flexibility of wireless iPad control is a major asset. If you’re looking for a robust 4-universe app-based lighting control solution, the ADJ LINK is a great choice. \n \n
\n
\n
\n
\nADJ LINK 4-Universe iPad DMX Controller Features:
\n-
\n
- Compatible with iPad only; requires iOS 12.0 or later (iPad not included) \n
- 6 general purpose buttons \n
- 1 Master and 8 Control faders (100mm) \n
- 16 Page Playback buttons above faders \n
- 8 rotary dials with push-in selection above faders \n
- 1 Blackout button \n
- 32 Instant Effect or Scene Calling buttons \n
- 8 Bump / Momentary Effect buttons \n
- 4 Rotary Encoder wheels with push-in selection \n
- USB 2.0 Type B Port \n
- Wi-Fi and DMX512 \n
- 2.4 and 5Ghz DSSS WiFi Network \n
- 4 hardwired, DMX universes \n
- USB input for gooseneck work light \n
- Removable outer case for 6U rack mounting \n
- Kensington security lock slot \n
- Included USB cable, USB light, DC9V power supply, rackmount kit \n
Tech Specs
\n-
\n
- Type: iPad-based DMX Controller \n
- DMX Modes: 4 x DMX universes \n
- Connectivity: 4 x 5-pin XLR (DMX out) \n
- Faders: 1 x Master, 8 x Control \n
- Power Source: 9V DC power supply (included) \n
- Height: 3.5" \n
- Width: 20.3" \n
- Depth: 13.2" \n
- Weight: 13 lbs. \n
- Manufacturer Part Number: LIN556 \n
