Product Description

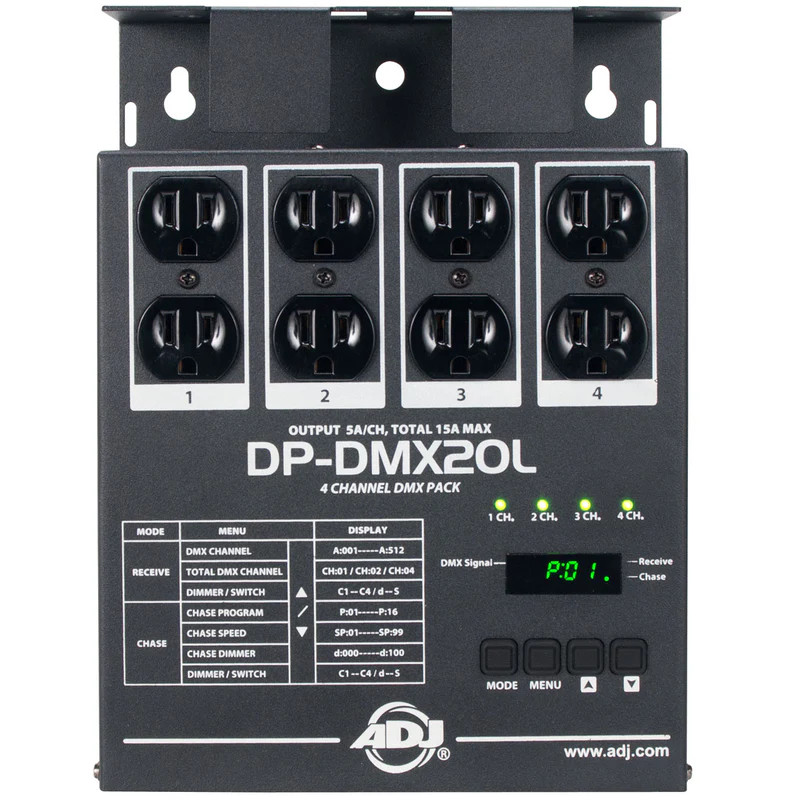

The ADJ DP-DMX20L is a professional 4-channel DMX-controlled dimmer and switch pack that gives you flexible power and control for your lighting setup. Designed for both stage and mobile applications, this versatile unit provides up to four independent channels with the option to operate in dimmer or switch mode.
Each channel features two standard 3-prong Edison outlets, allowing you to connect and manage multiple fixtures easily. The DP-DMX20L supports 1-, 2-, or 4-channel DMX modes and offers 16 built-in chases with adjustable speed control—perfect for generating dynamic lighting effects without the need for a separate controller.
With zero-crossing circuitry to protect transformer loads, external fuse access, and flexible mounting options, the DP-DMX20L delivers reliable, professional-grade performance for theaters, clubs, DJs, and touring setups.
Features
-
4-channel DMX dimmer/switch pack
-
Each channel independently selectable as dimmer or switch
-
2 standard Edison outlets per channel (8 total)
-
Operates in 1-, 2-, or 4-channel DMX mode
-
16 onboard chases with adjustable speed control
-
Front-panel controls for address, mode, and dimming
-
External fuse access per channel
-
Zero-crossing circuitry for transformer load protection
-
Flexible mounting options (truss, wall, or floor)
Specifications
-
DMX Input/Output: 3-pin XLR
-
Channels: 4
-
Operation Modes: Dimmer/Switcher
-
Load Capacity: 5A per channel (20A max)
-
Voltage: 120V AC, 60Hz
-
Mounting: Truss, wall, or stand
-
Manufacturer Part Number: DP-DMX20L
